Note: This article is discontinued.
You can find the current article here: 5096827 / CoordinatedLightningController, plug-in arrester with function display

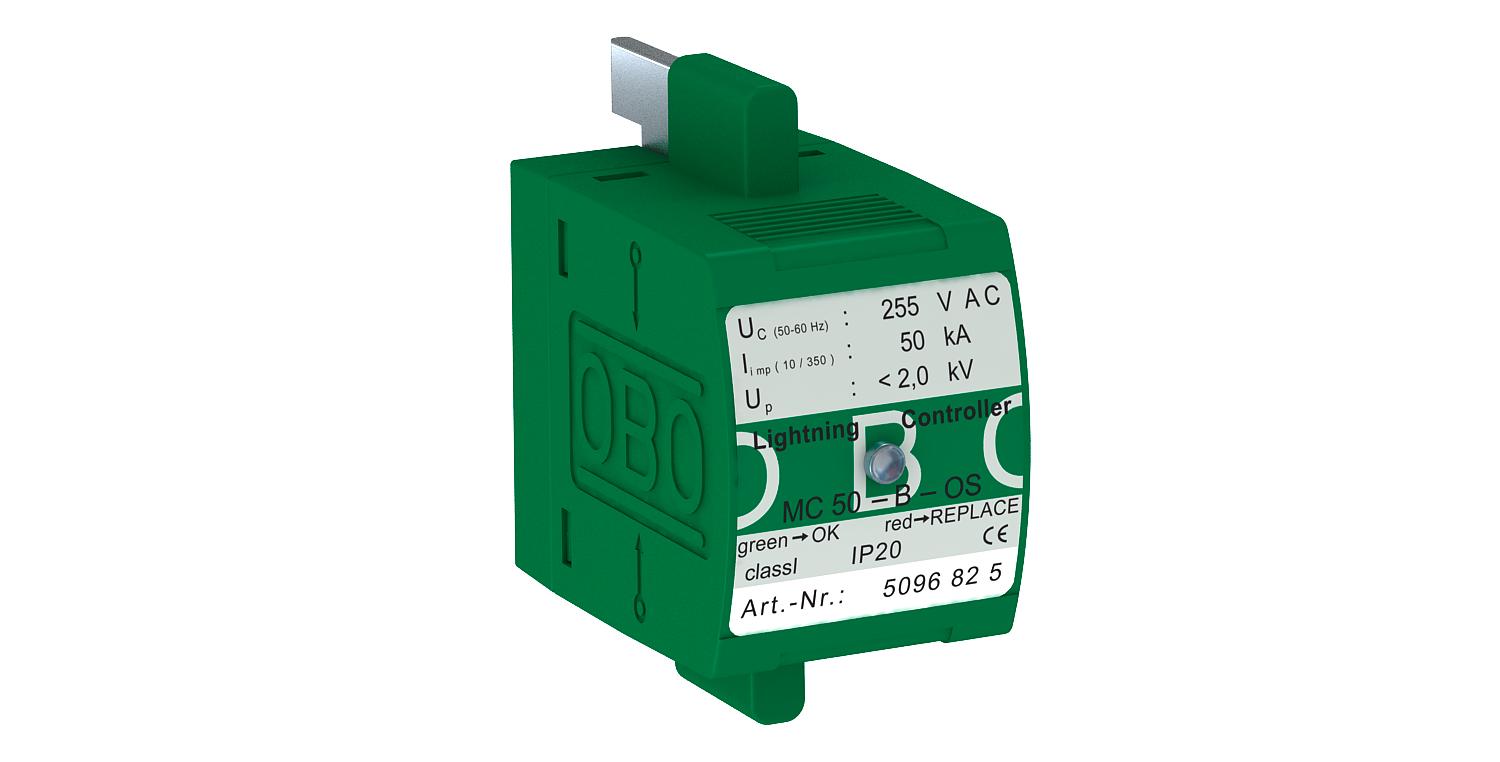

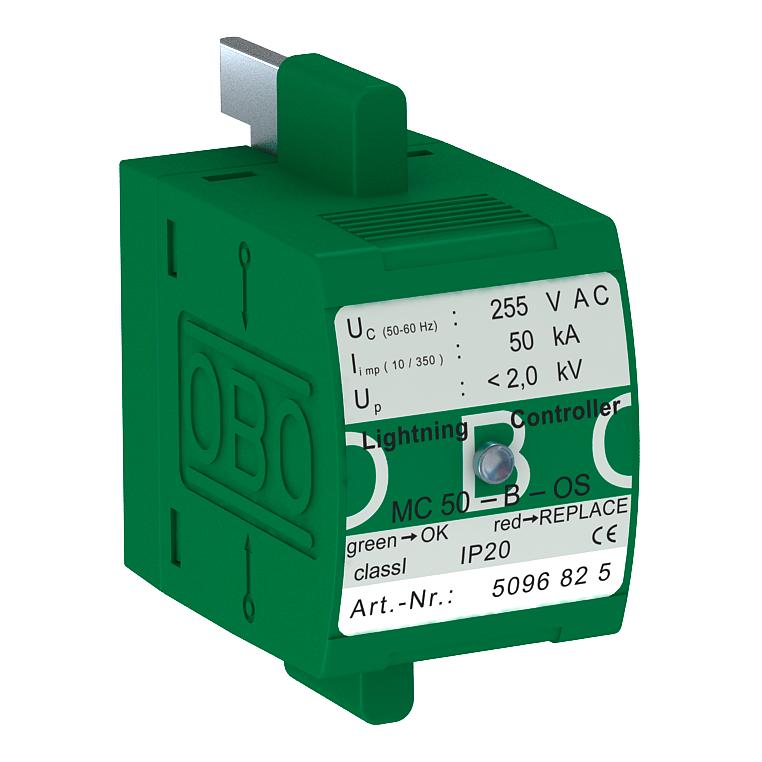

LightningController, plug-in arrester with function display
Item no. 5096825 | EAN 4012195051428
- Product description
-
Product descriptionLightningController cover
Power consumption: <1 mW
-
- Technical data
-
Connectivity options

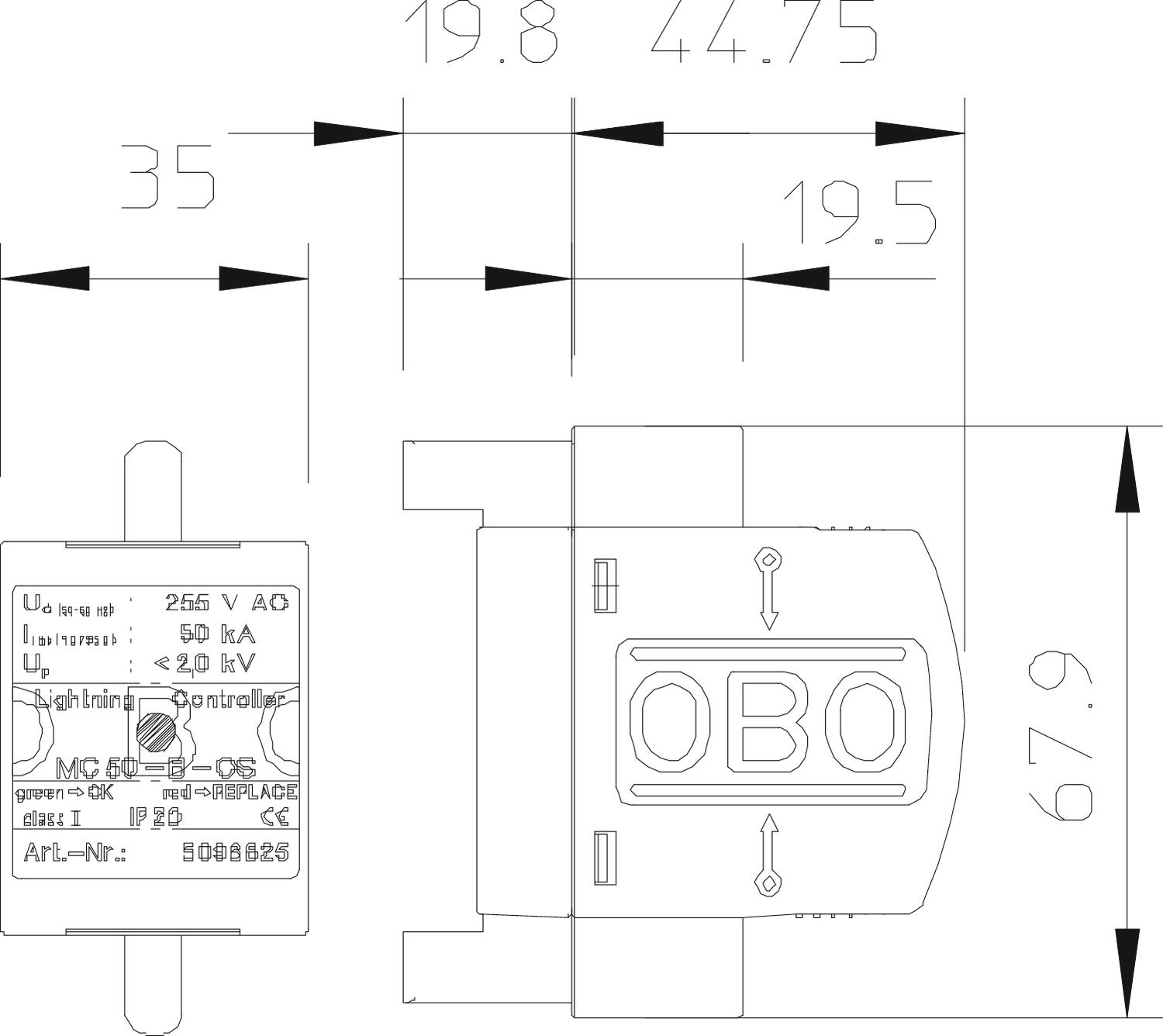

Arrester surge current (8/20 µs) [total] 50 kA Blow-out no Conductor cross-section, rigid (single-wire/multiwire), max. 50 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 10 mm² Dimension 255V Explosion-tested version no Follow current quenching capacity (eff) [N-PE] 25 kA Height 69 mm Installation type On basic element Length 100 mm Lightning protection zone LPZ 0→1 Lightning surge current (10/350 μs) 50 kA Lightning surge current (10/350) 50 kA Max. mains-side overcurrent protection 500 Maximum back-up fuse 500 A Maximum continuous voltage AC 255 V Network form Other Nominal discharge current (8/20 µs) 50 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 85 °C Operating temperature, min. -40 °C Pole version 1 Protection rating IP20 Remote signalling no Response time <100 ns Short-circuit resistance 25 kA Short-circuit resistance for max. mains-side overcurrent protection 25 kA Signalling on device Visual SPD to EN 61643-11 Type 1 SPD to IEC 61643-1 Class I Test class, type 1 yes Width 35 mm - All types
- Downloads
-
Data sheet MC 50-B 0-OS / 5096825 , 0.21MB , pdfCatalogue Überspannungsschutz , 28.42MB , pdfLabel approval MEEI certificate MC50 , 0.23MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfNo invitation to tender text is available for this product.
