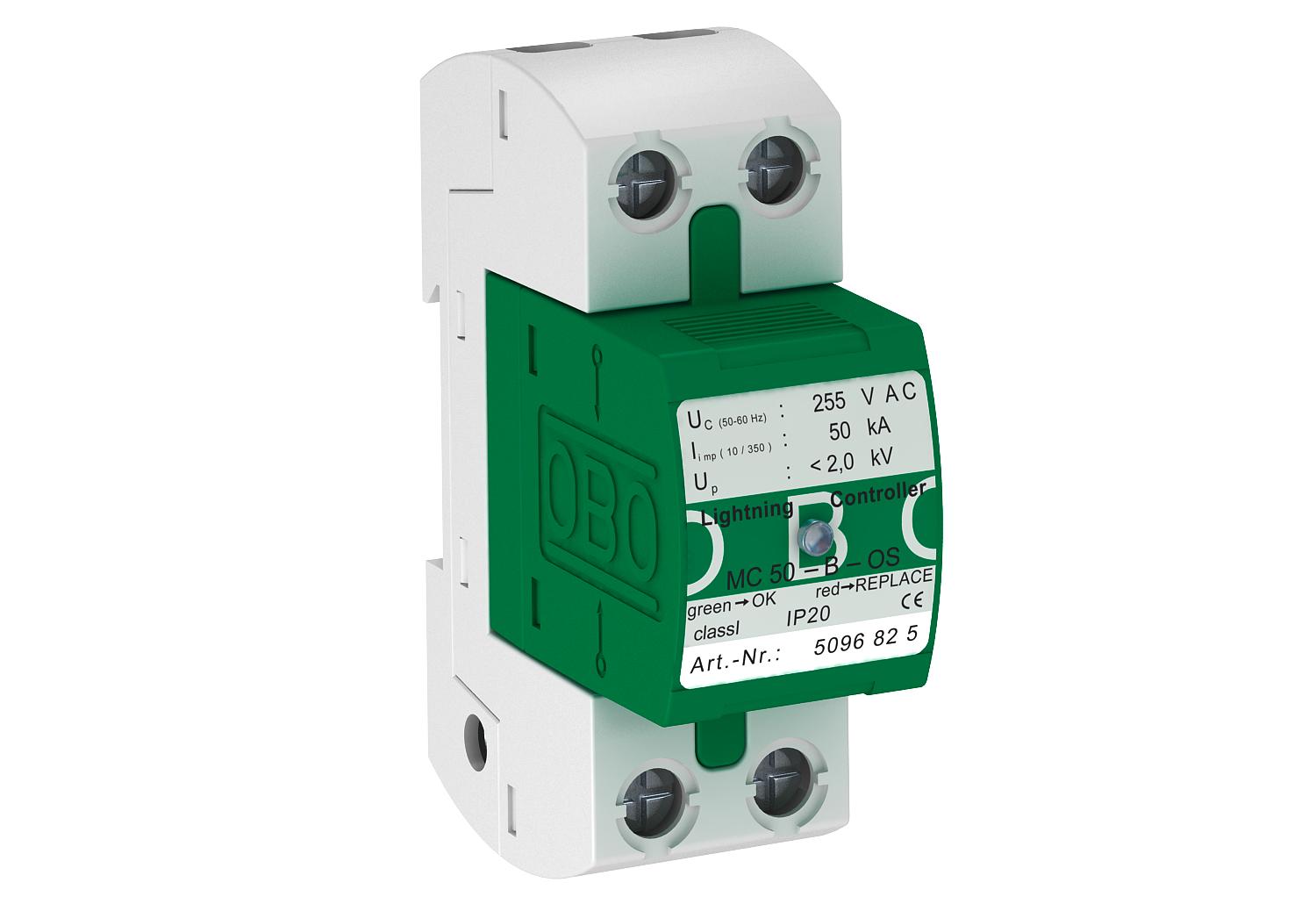

Lightning current arrester, 1-pole with function display

Lightning current arrester, 1-pole with function display

Name: Lightning current arrester, 1-pole with function display
Brand: OBO Bettermann
SKU: 5096851

Item no. 5096851 | EAN 4012195051411

Product description

Product description

Lightning arrester with visual function display, type 1, in accordance with DIN EN 61643-11 for interface 0 to 1 (LPZ) in accordance with lightning protection concept to IEC 61312-1 and VDE 0185-305 (IEC 62305)

• Upper part and base, plug-in upper part
• Arresting capacity 50 kA (10/350 µs) per pole
• Voltage protection level < 2.0 kV
• Power consumption < 26 mW/pole
• Line following current quenching 25 kA Ipeak
• Incl. plug caps for labelling the connections
• Encapsulated, non-extinguishing spark gap: can be used in standard distributor housings

Application example: Industrial systems.

Note: Requires as a decoupling length for surge protection 5 m of cable.

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total]	50 kA
Blow-out	no
Cable type for surge protection devices	Power cable AV
Conductor cross-section, rigid (single-wire/multiwire), max.	50 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	10 mm²
Dimension	255V
Explosion-tested version	no

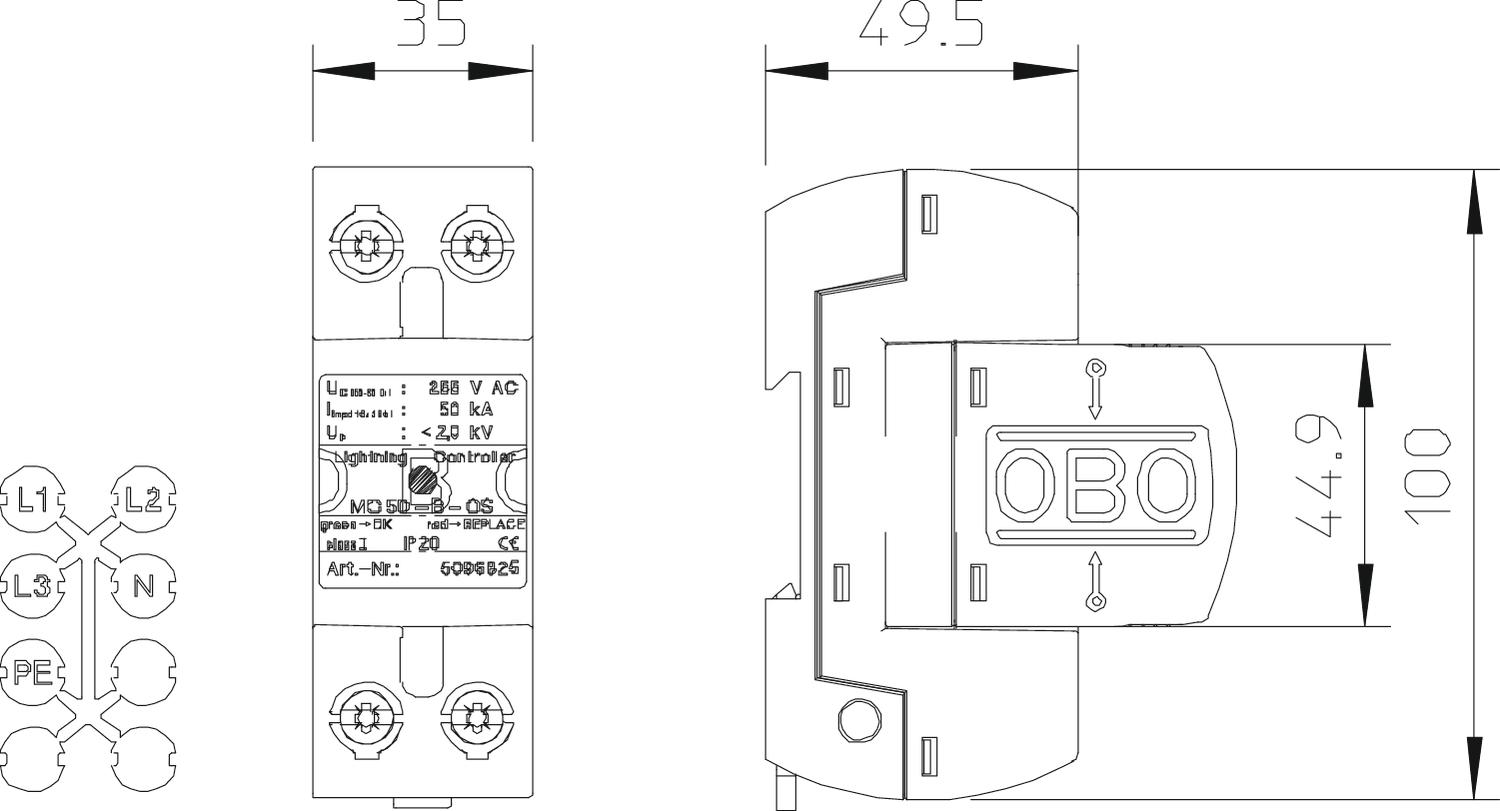

Height	69 mm
Installation type	DIN rail 35 mm
Length	100 mm
Lightning protection zone LPZ	0→1
Lightning surge current (10/350 μs)	50 kA
Lightning surge current (10/350)	50 kA
Max. mains-side overcurrent protection	500
Maximum back-up fuse	500 A

Maximum continuous voltage AC	255 V
Network form	Other
Nominal discharge current (8/20 µs)	50 kA
Nominal voltage AC (50/60 Hz)	230 V
Operating temperature, max.	85 °C
Operating temperature, min.	-40 °C
Pole version	1
Protection rating	IP20
Remote signalling	no
Response time	<100 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 1
SPD to IEC 61643-1	Class I
Test class, type 1	yes
Width	35 mm
