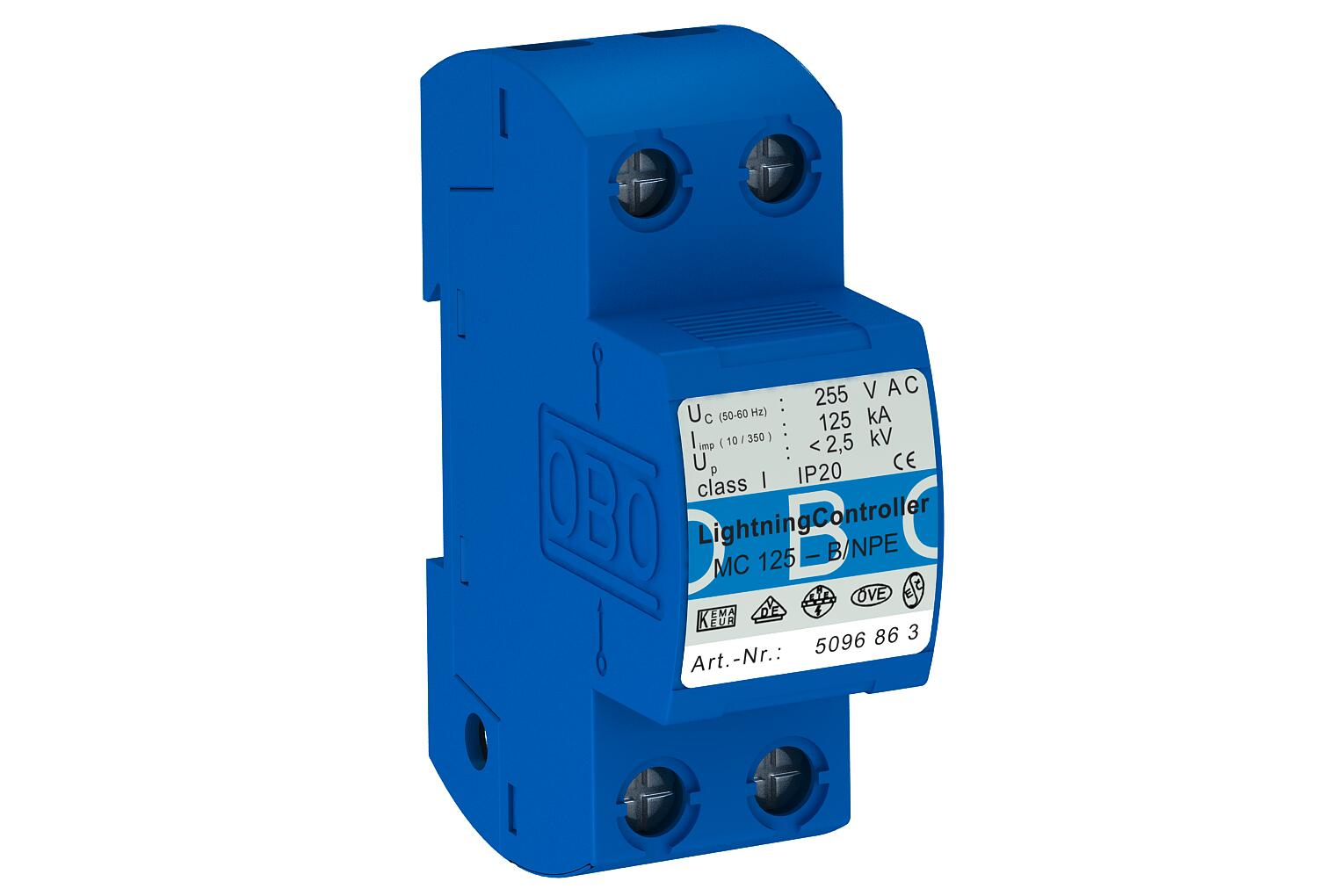

Product description
For use in TN-S and TT systems as N-PE discharge gap, type 1 (Class B) IEC 61643, for interface 0 to 1 (LPZ) according to lightning protection zone concept to IEC 61312-1 and/or DIN VDE 0185-305 Part 4 for use as discharge gap between N and PE.
• Complies with VDE-AR-N 4100
• Arresting capability 125 kA (10/350 µs)
• Incl. plug caps for labelling the connections
• Voltage protection level <2.5 kV
• Enclosed, non-extinguishing discharge gap: can be used in normal commercial distributor housings
Application example: lightning arrester in accordance with VDE-AR-N 4100 for pre-meter area.
Note: Requires as a decoupling length for surge protection 5 m of cable.
- Technical data
-
Technical data
Blow-out no Conductor cross-section, rigid (single-wire/multiwire), max. 50 mm² Dimension 255V Explosion-tested version no Follow current quenching capacity (eff) [N-PE] 0,1 kA Installation type DIN rail 35 mm Lightning protection zone LPZ 0→1 Lightning surge current (10/350 μs) 50 kA Lightning surge current (10/350) 125 kA Maximum continuous voltage AC 255 Network form Other Nominal discharge current (8/20 µs) 50 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 85 °C Operating temperature, min. -40 °C Pole version N/PE Protection rating IP20 Remote signalling no Response time <100 ns Signalling on device None SPD to EN 61643-11 Type 1 SPD to IEC 61643-1 Class I Test class, type 1 yes Version for 1-pole; 255 V Dimensions

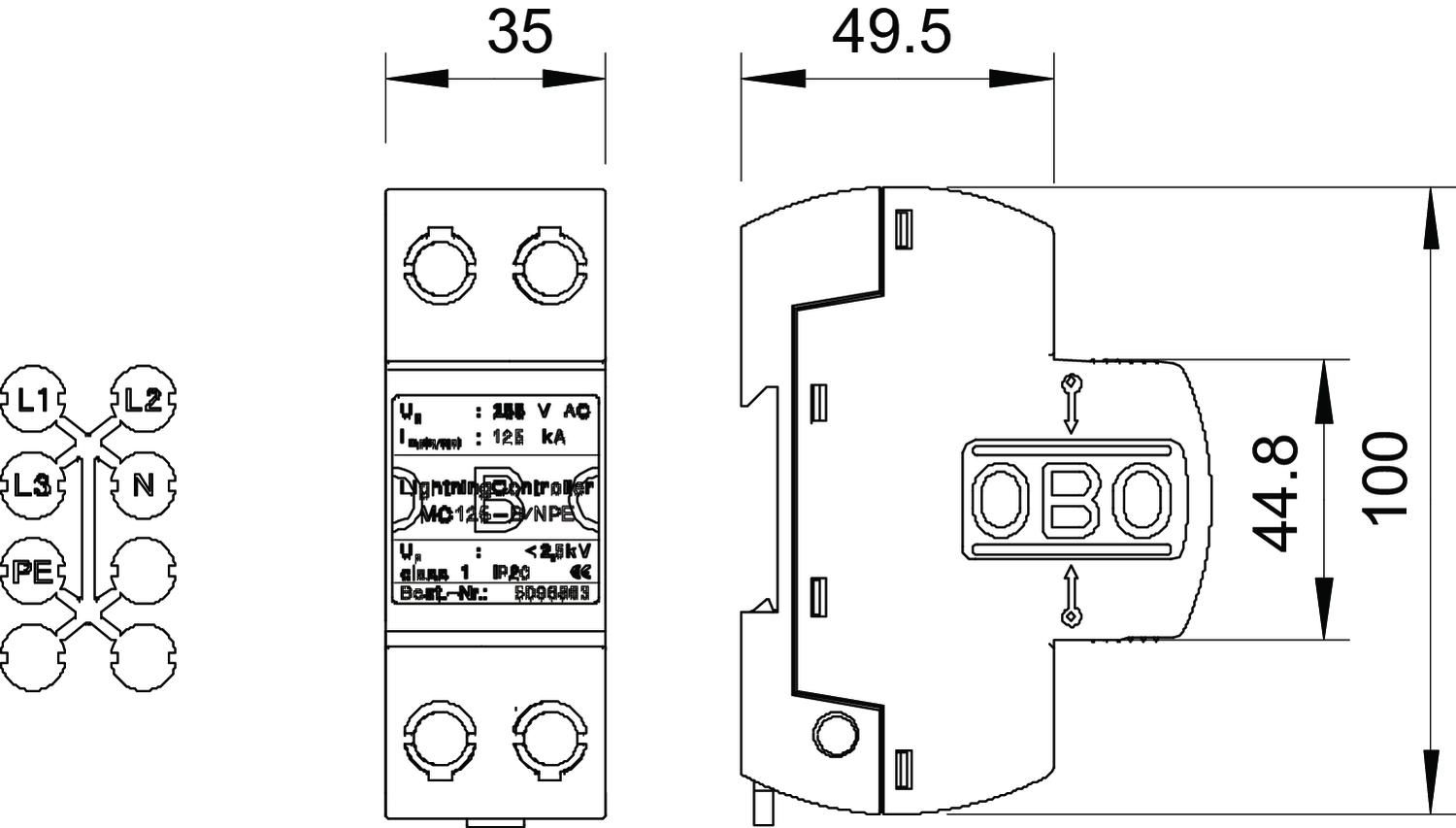

Height 69 mm Length 100 mm Width 35 mm Connectivity options
Arrester surge current (8/20 µs) [total] 125 kA Conductor cross-section, rigid (single-wire/multiwire), min. 10 mm² Short-circuit resistance for max. mains-side overcurrent protection 0 kA - All types
