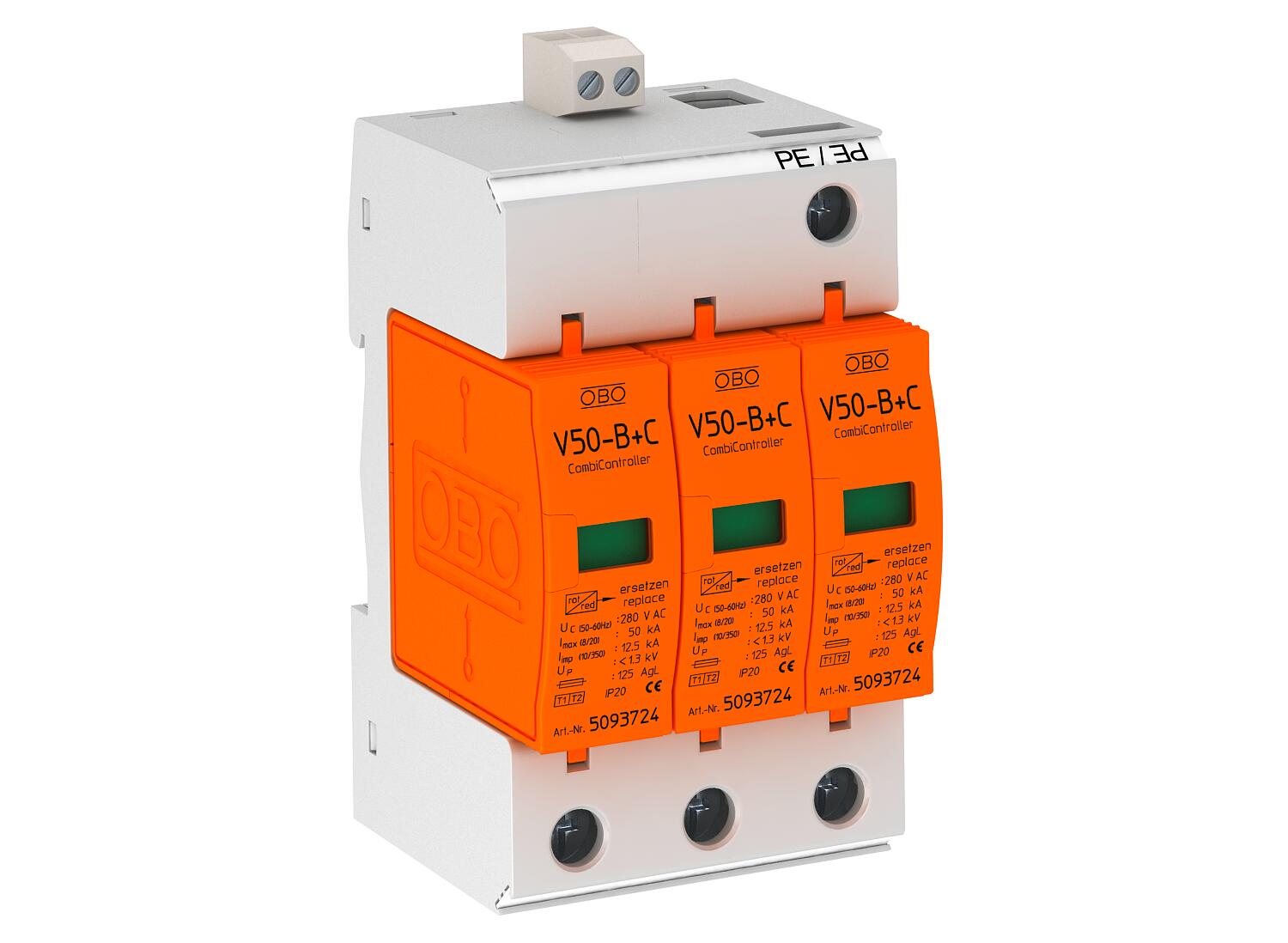

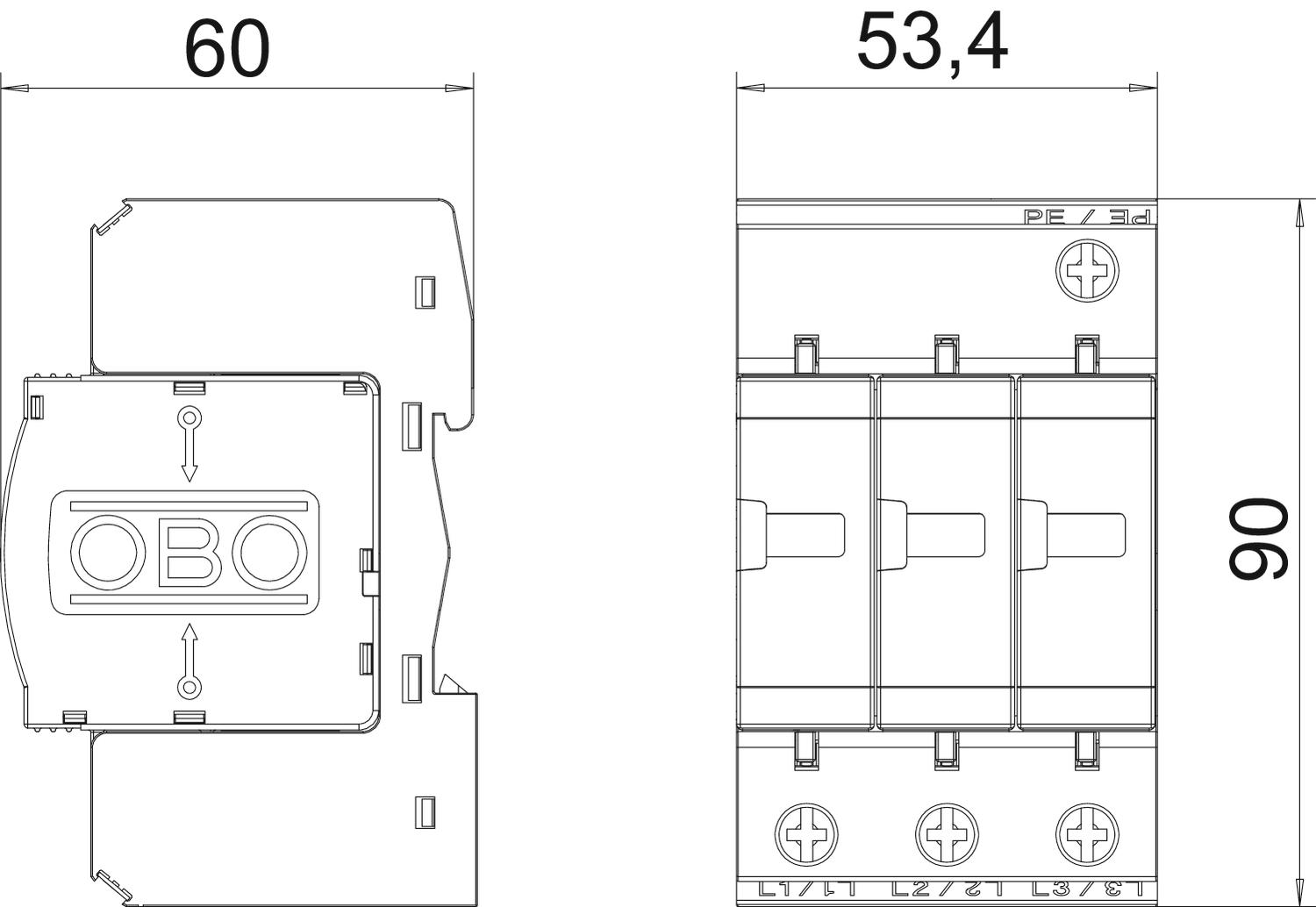

Lightning current and surge arrester, 3-pole with remote signalling
Item no. 5093643 | EAN 4012195361916
- Product description
-
Product descriptionCombination arrester, lightning and surge arrester type 1+2 to DIN EN 61643-11.
• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity 12.5 kA (10/350) per pole
• Universally suitable for TN-C systems
• With new Multibase base with multi-connection terminals
• Complete unit, consisting of upper part and base, pre-mounted and ready for connection
• Arrester, connectable with dynamic cut-off unit
• With visual function display
• Protection level < 1,3 kV
• Encapsulated, non-extinguishing zinc oxide varistor arrester for use in distributor housings
• Labelled connections

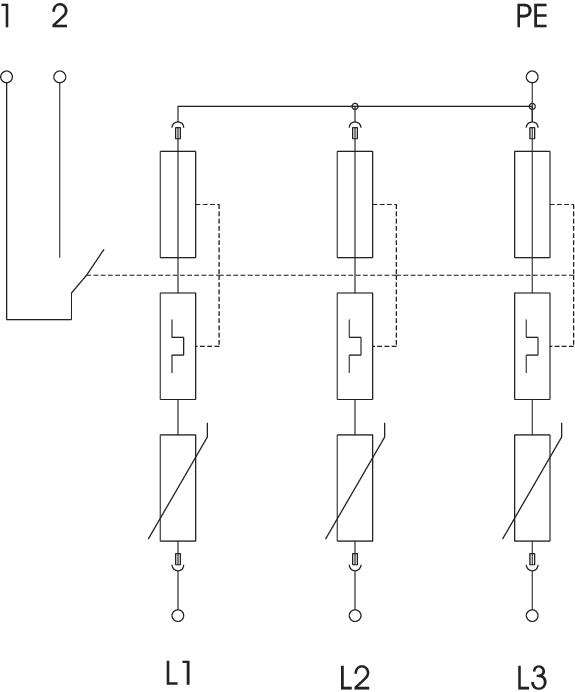

• FS variant with remote signalling contact (potential-free NO contact)
Application: Equipotential bonding in buildings, even those with external lightning protection of Class III and IV, and in standard distributor housings.
* Complete = Plug-in arrester and base
-
- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 90 kA Blow-out no Conductor cross-section, flexible (fine-wire), min. 25 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² DC network form no Dimension 280V Installation type DIN rail 35 mm Integrated back-up fuse no IT network form no Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 12,5 kA Lightning surge current (10/350) 37,5 kA Max. mains-side overcurrent protection 125 Maximum back-up fuse 125 A Maximum continuous voltage (N-PE) 255 V Maximum continuous voltage AC 280 V Maximum discharge current (8/20 μs) 50 kA Network form TN-C Nominal discharge current (8/20 µs) 30 kA Nominal discharge current (8/20 µs) [L-N] 30 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Other network form no Pole number 3 Pole version 3 Protection level [L-N] ≤1,3 Protection rating IP20 Remote signalling yes Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II TN network form yes TN-C network form yes TN-C-S network form no TN-S network form no TT network form no Version for 3-pole + FS - All types
