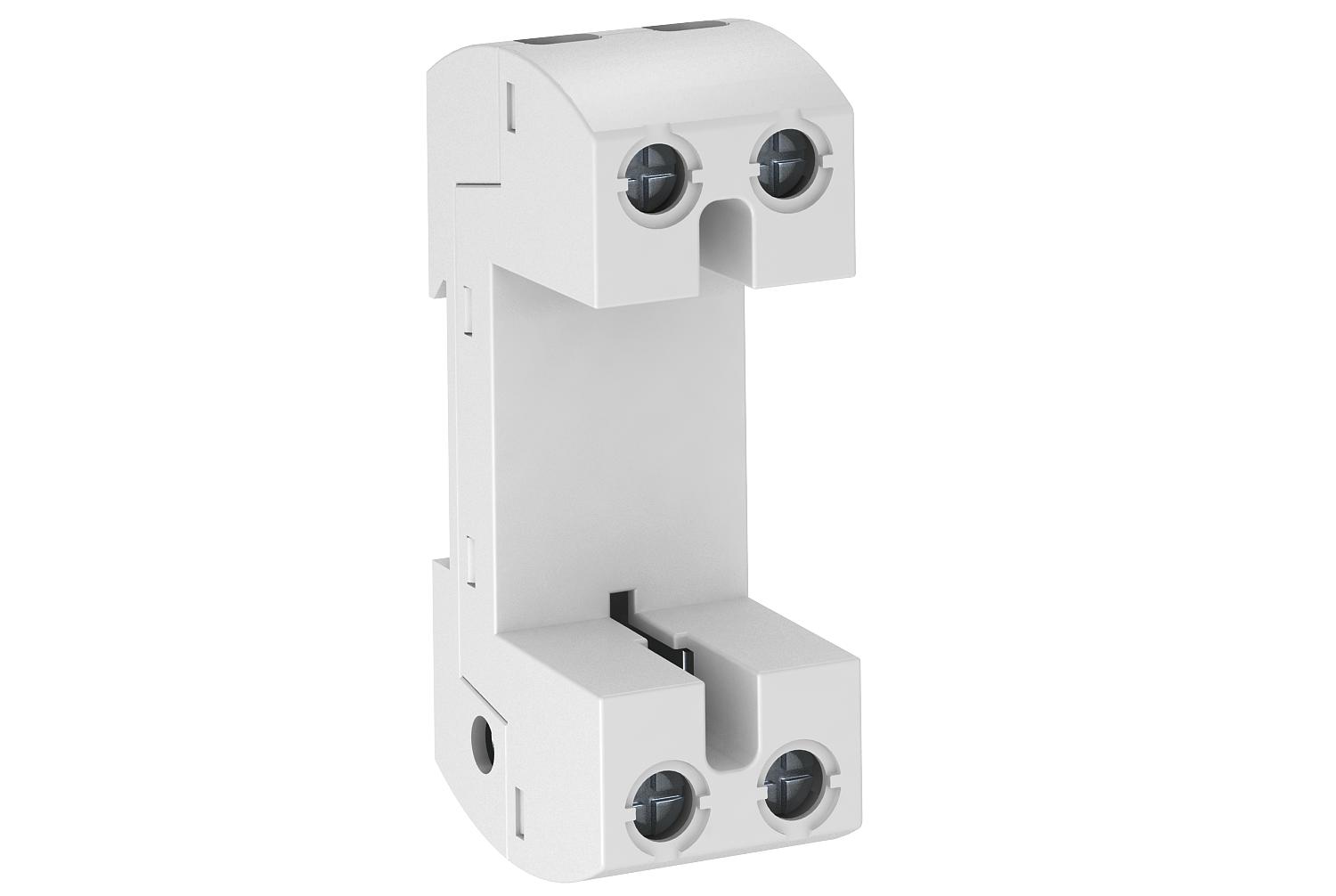

Lightning arrester/combination arrester base
Item no. 5096839 | EAN 4012195480792
- Product description
-
Product descriptionLightningController base, fits type:
• MC 50-B VDE
• MCD 50-B
• Incl. plug caps for labelling the connections
-
- Technical data
-
Connectivity options

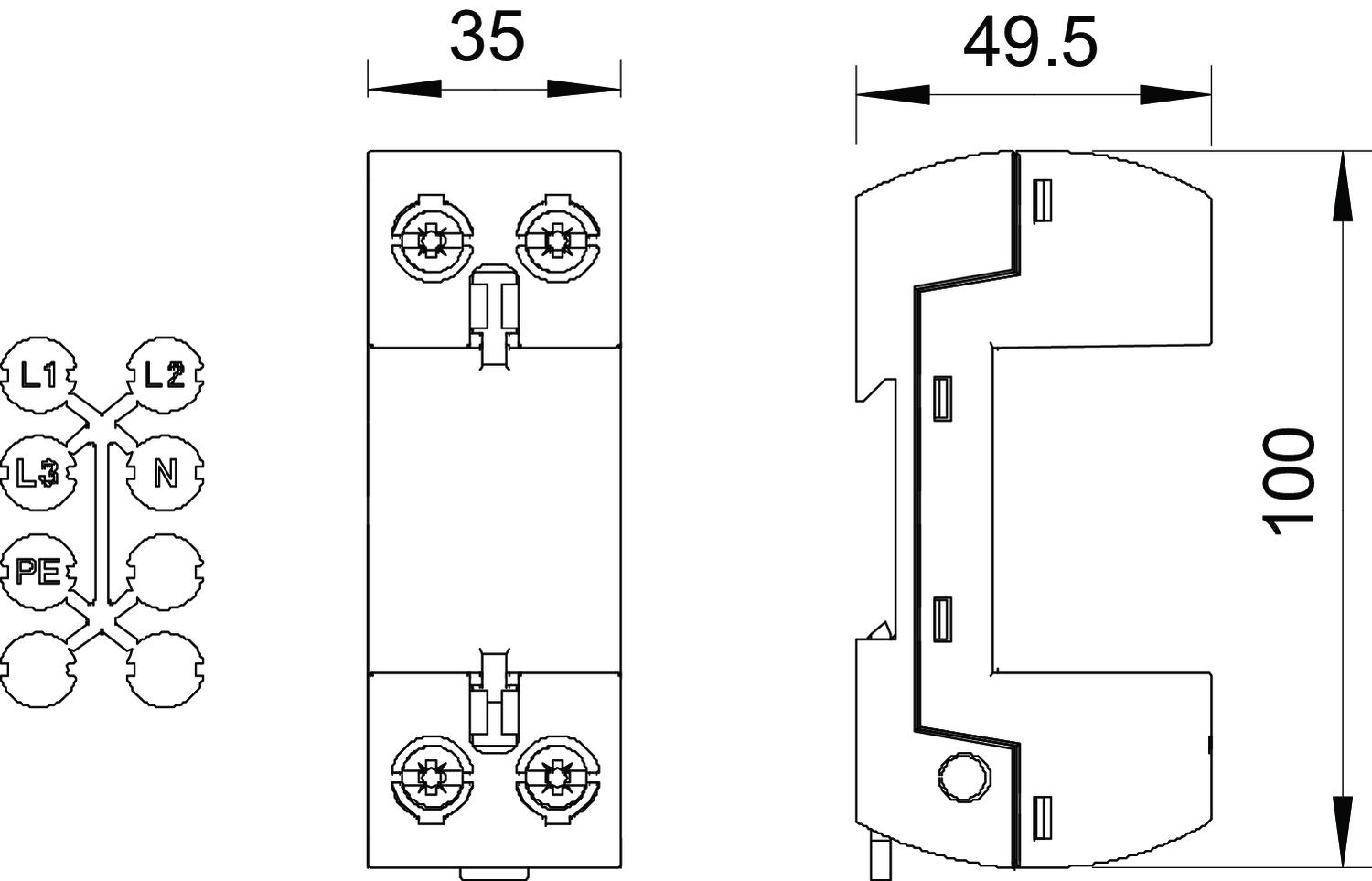

Arrester surge current (8/20 µs) [total] 125 kA Blow-out no Conductor cross-section, rigid (single-wire/multiwire), max. 50 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 10 mm² Dimension 1-pole Explosion-tested version no Height 49,5 mm Installation type DIN rail 35 mm Length 100 mm Lightning protection zone LPZ 0→1 Lightning surge current (10/350) 125 kA Network form All Nominal discharge current (8/20 µs) 50 kA Operating temperature, max. 85 °C Operating temperature, min. -40 °C Pole version 1 Protection rating IP20 Remote signalling no Signalling on device None Test class, type 1 yes Version for 1-pole base Width 35 mm - All types
- Downloads
-
Data sheet MC 50-B U VDE / 5096839 , 0.18MB , pdfCatalogue Überspannungsschutz , 28.42MB , pdfREACH Declaration of conformity MC 50-B U VDE / 5096839 , 0.12MB , pdfRoHS Declaration of conformity MC 50-B U VDE / 5096839 , 0.12MB , pdfLabel approval MEEI certificate MC50 , 0.23MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfNo invitation to tender text is available for this product.
