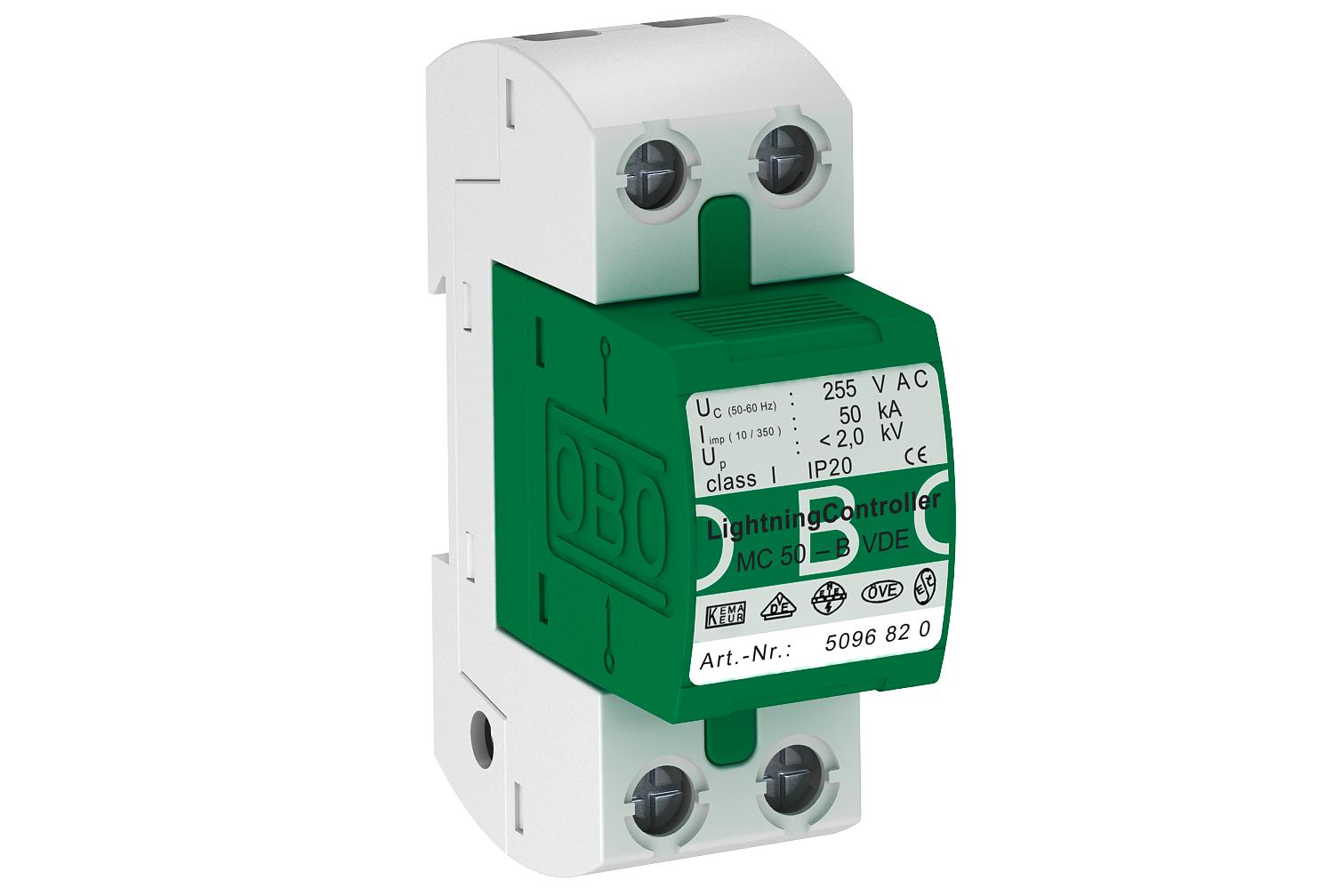

Lightning arrester, 1-pole
Item no. 5096847 | EAN 4012195966388
- Product description
-
Product descriptionType 1 lightning arrester in accordance with DIN EN 61643-11 for interface 0 to 1 (LPZ) to and/or in accordance with lightning protection concept to IEC 61312-1 and/or VDE 0185-305 (IEC 62305)
• Cover and base, plug-in cover
• Arresting capacity 50 kA (10/350 µs) per pole
• Voltage protection level < 2.0 kV
• Line following current quenching 25 kA Ipeak
• Incl. plug caps for labelling the connections
• Encapsulated, non-extinguishing spark gap: can be used in standard distributor housings
Application example: Industrial plants; lightning arrester in accordance with VDE-AR-N 4100 for pre-meter area.
Note: Requires as a decoupling length for surge protection 5 m of cable.
-
- Technical data
-
Connectivity options

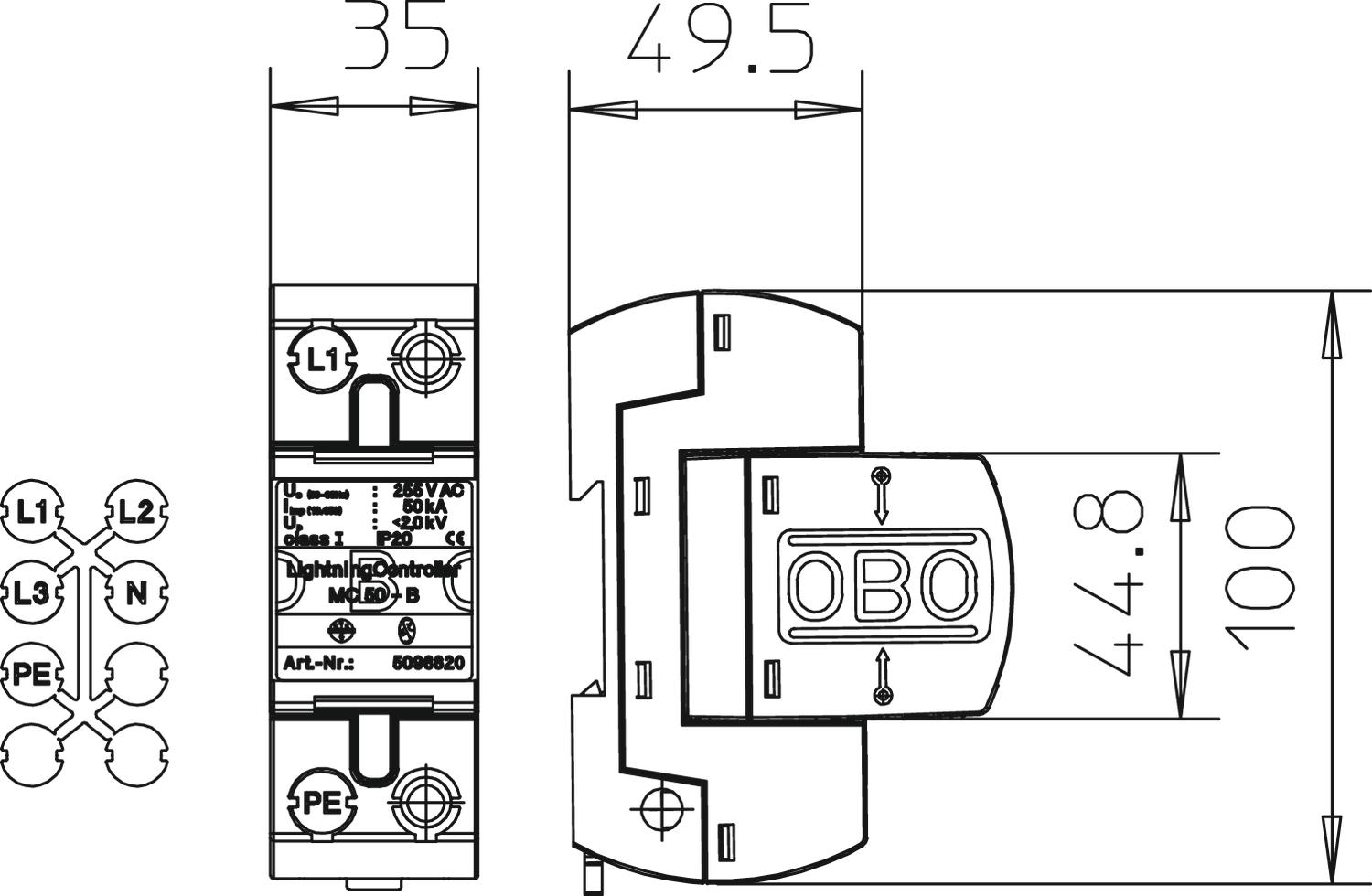

Arrester surge current (8/20 µs) [total] 50 kA Blow-out no Cable type for surge protection devices Power cable AV Conductor cross-section, rigid (single-wire/multiwire), max. 50 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 10 mm² Dimension 255V Explosion-tested version no Follow current quenching capacity (eff) [N-PE] 25 kA Height 69 mm Installation type DIN rail 35 mm Length 100 mm Lightning protection zone LPZ 0→1 Lightning surge current (10/350 μs) 50 kA Lightning surge current (10/350) 50 kA Max. mains-side overcurrent protection 500 Maximum back-up fuse 500 A Maximum continuous voltage AC 255 V Network form Other Nominal discharge current (8/20 µs) 50 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 85 °C Operating temperature, min. -40 °C Pole version 1 Protection rating IP20 Remote signalling no Response time <100 ns Short-circuit resistance 25 kA Short-circuit resistance for max. mains-side overcurrent protection 25 kA Signalling on device None SPD to EN 61643-11 Type 1 SPD to IEC 61643-1 Class I SPD to UL 1449 Type 1 Test class, type 1 yes Version for 1-pole complete; 255 V Width 35 mm - All types
- Downloads
-
Data sheet MC 50-B VDE / 5096847 , 0.26MB , pdfCatalogue Überspannungsschutz , 28.42MB , pdfREACH Declaration of conformity MC 50-B VDE / 5096847 , 0.12MB , pdfRoHS Declaration of conformity MC 50-B VDE / 5096847 , 0.12MB , pdfLabel approval MEEI certificate MC50 , 0.23MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfTechnical information Technical information, MC 50-B VDE , 0.09MB , pdfNo invitation to tender text is available for this product.
