Lid, T branch piece SSP 200 | 2

morepic-1

morepic-2

Lid, T branch piece SSP

Item no. 6905853 | EAN 4012196075843

Item no. / Types

Width

Plate thickness	2 mm

Product description

Product description

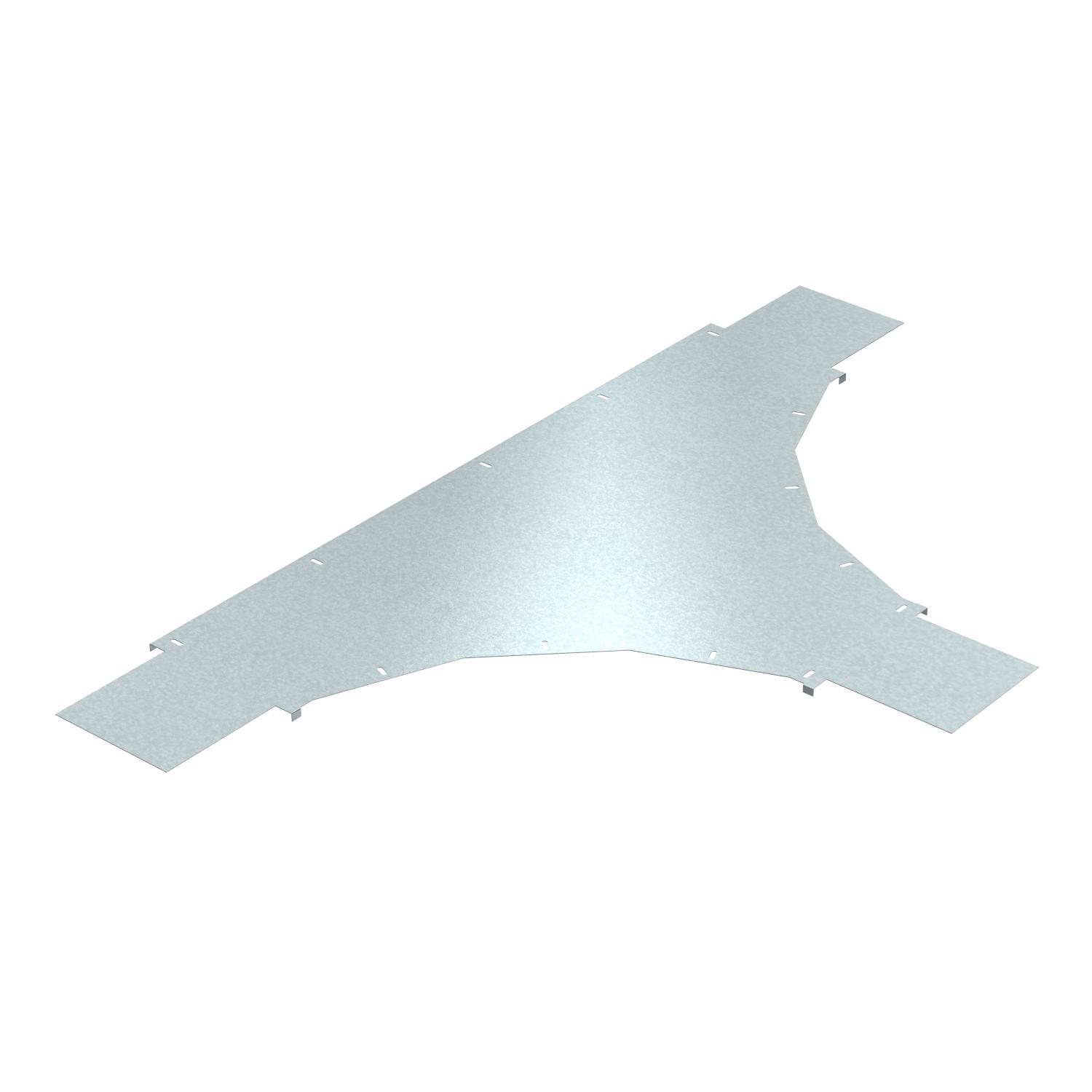

T piece lid for SSP cable ladder system.
Accessory part radius = 650 mm. Accessory parts with a radius of 1,000 mm available on request.

Technical data

Technical data

Dimension	1805x1010
Material	Steel
Material thickness	2 mm

Plate thickness	2 mm
Surface	Hot-dip galvanised
Width	200 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
SSPCover 200 HDG	200 mm	2 mm	6905853		1
SSPCover 300 HDG	300 mm	2 mm	6905857		1
SSPCover 400 HDG	400 mm	2 mm	6905861		1
SSPCover 500 HDG	500 mm	2 mm	6905865		1
SSPCover 600 HDG	600 mm	2 mm	6905869		1
SSPCover 800 HDG	800 mm	2 mm	6905873		1
SSPCover1000 HDG	1000 mm	2 mm	6905877		1
