Lid, T branch piece PS 150 | 1.6

morepic-1

morepic-2

Lid, T branch piece PS

Item no. 6904503 | EAN 4012196073252

Item no. / Types

Width

Plate thickness

Product description

Product description

T piece lid for PS cable ladder system.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Technical data

Dimension	1350x800x15
Material	Steel
Material thickness	1,6 mm

Plate thickness	1,6 mm
Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
PSCover 150 HDG	150 mm	1.6 mm	6904503		1
PSCover 200 HDG	200 mm	1.6 mm	6904507		1
PSCover 300 HDG	300 mm	1.6 mm	6904511		1
PSCover 400 HDG	400 mm	1.6 mm	6904515		1
PSCover 500 HDG	500 mm	2 mm	6904519		1
PSCover 600 HDG	600 mm	2 mm	6904523		1
PSCover 800 HDG	800 mm	2 mm	6904527		1
PSCover 1000 HDG	1000 mm	2 mm	6904531		1

Downloads

Data sheet PSCover 150 HDG / 6904503 , 0.09MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Cable support systems , 45.23MB , pdf

EU declaration of conformity PSCover 150 HDG / 6904503 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

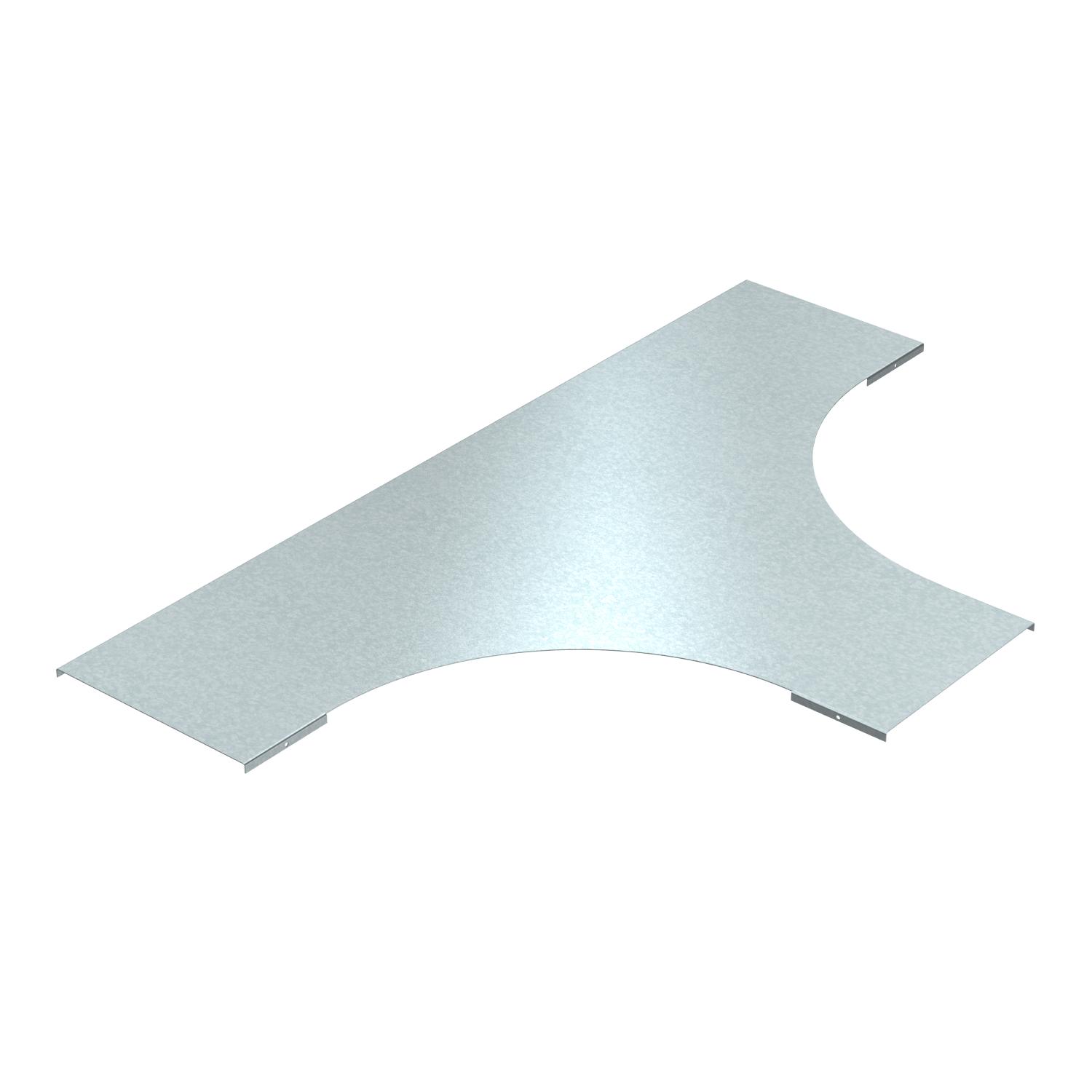

Product graphic PSCover 150 HDG / 6904503, 62.01 kB, jpg

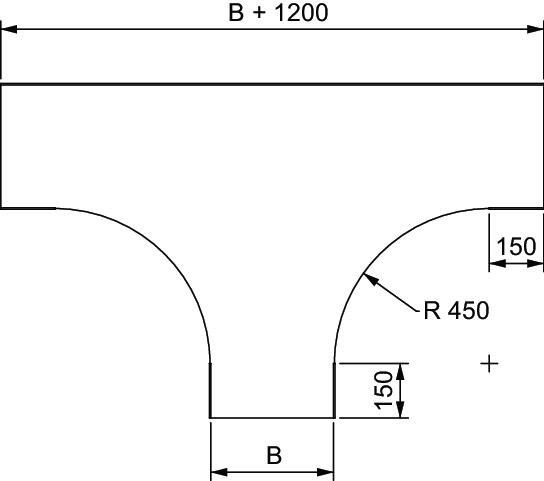

Scale drawing PSCover 150 HDG / 6904503, 3.63 kB, jpg
