Lid, intersection PT38/PT76 FT 76 | 1.6

morepic-1

morepic-2

Lid, intersection PT38/PT76 FT

Item no. 6901103 | EAN 4012196063598

Item no. / Types

Width

Plate thickness	1.6 mm

Product description

Product description

Unperforated cover for cross-over of types PT38 and PT76.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Technical data

Dimension	1150x618x20
Material	Steel
Material thickness	1,6 mm

Plate thickness	1,6 mm
Surface	Hot-dip galvanised
Width	76 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
PTCover 76 HDG	76 mm	1.6 mm	6901103		1
PTCover 114 HDG	114 mm	1.6 mm	6901107		1
PTCover 152 HDG	152 mm	1.6 mm	6901111		1
PTCover 228 HDG	228 mm	1.6 mm	6901115		1
PTCover 304 HDG	304 mm	1.6 mm	6901119		1
PTCover 457 HDG	457 mm	1.6 mm	6901123		1
PTCover 609 HDG	609 mm	1.6 mm	6901127		1

Downloads

Data sheet PTCover 76 HDG / 6901103 , 0.09MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

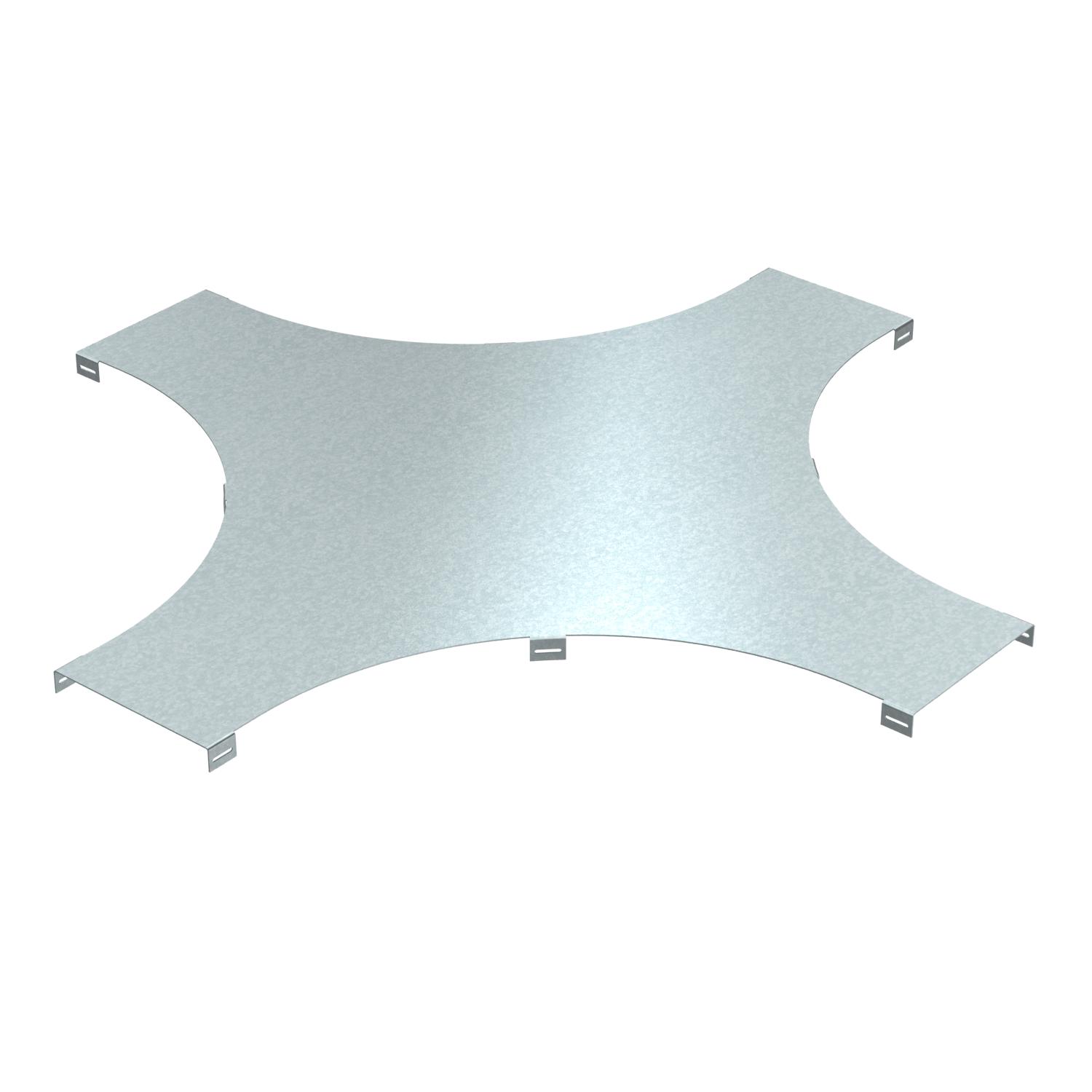

Product graphic PTCover 76 HDG / 6901103, 71.35 kB, jpg

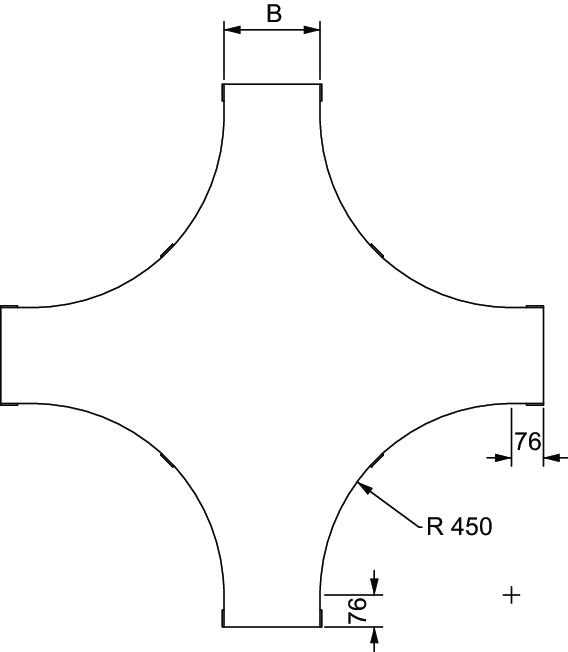

Scale drawing PTCover 76 HDG / 6901103, 3.52 kB, jpg

PTCover 76 HDG / 6901103
