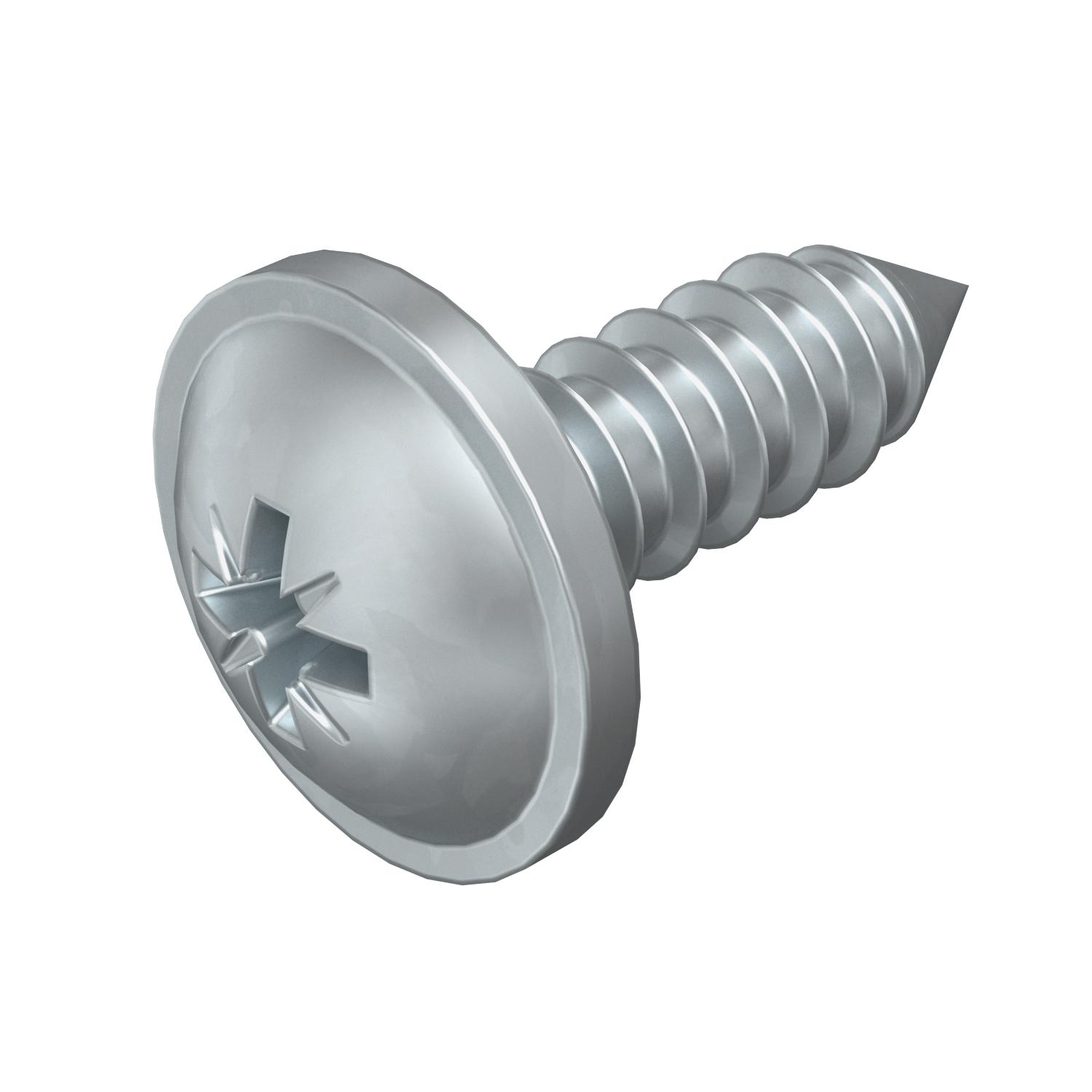

Lid connector PT38/PT76 FT
Item no. 6901132 | EAN 4012196063758
- Product description
-
Product descriptionAccessories for cover connection of types PT38 and PT76.
-
- Technical data
-
Technical data

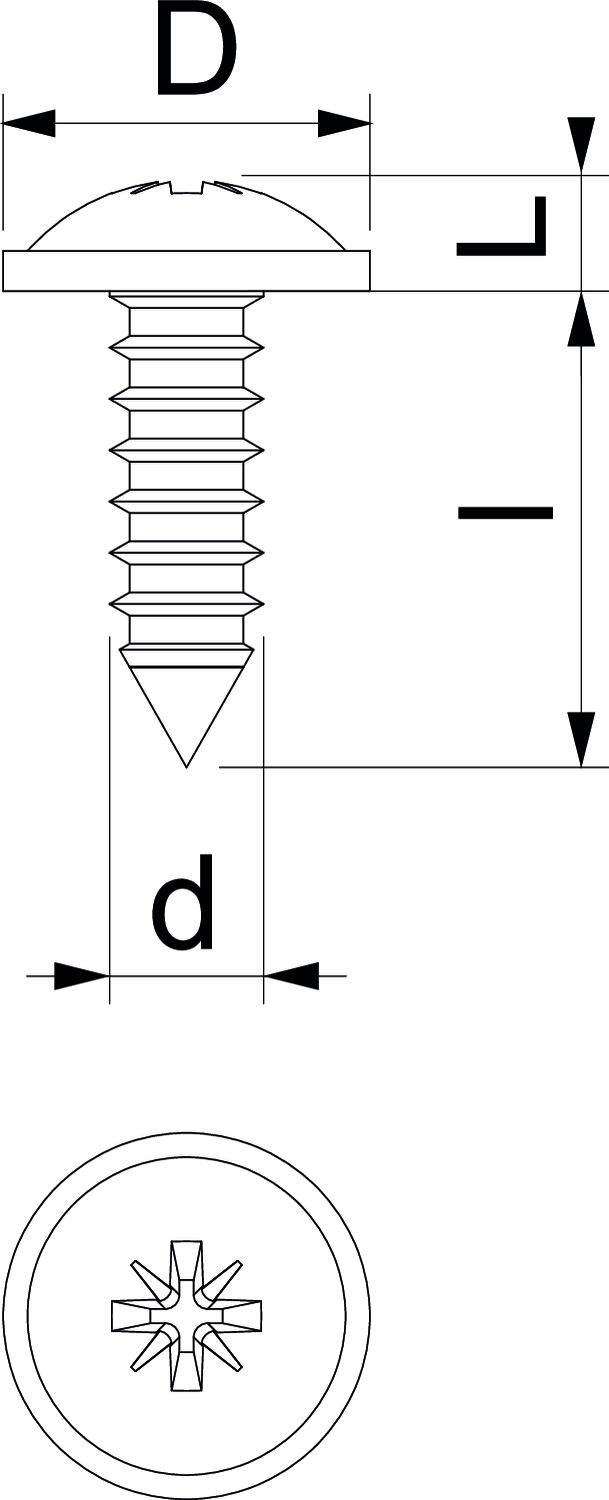

Dimension 4,2x13 Dimension d 4,2 mm Dimension D 10 mm Dimension d max. 10 mm Dimension d min. 10 mm Dimension L 3 mm Dimension l 13 mm Fibre-glass reinforced no Halogen-free no Head diameter 10 mm Head shape Rounded head Impact-resistant no Length 16 mm Material Steel Rustproof steel, pickled no Screw system Pozidrive PZ Surface Electrogalvanized Thread diameter ST 4,2 Thread length 13 mm Width 10 mm With nut no With washer no - All types
- Downloads
-
Data sheet No10 Pozi Drive / 6901132 , 0.16MB , pdfCatalogue Cable support systems , 2.10MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
