- Product description
-

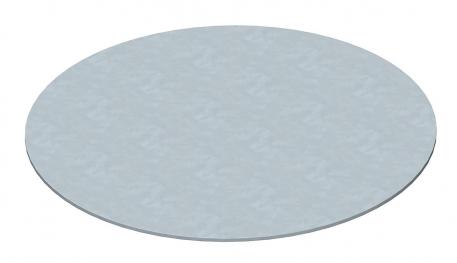

Product descriptionLid blind plate for flushfloor closing of a round mounting opening in a DUG mounting lid. The size of the mounting opening can be determined from the type designation.
-
- Technical data
-
Technical data
Dimension Ø309mm Dimension d Ø 309 mm Heavy-duty version no Installation opening for on-floor tank no Material Steel Material thickness 3 mm Mounting opening Without Mounting opening cover yes Nominal size for device installation units R9 Seal installation option no Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Surface Strip galvanized - All types
- Downloads
-
Data sheet DUG B R9 / 7407160 , 0.18MB , pdfEU declaration of conformity DUG B R9 / 7407160 , 0.11MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdf
