Lid, 90° bend PS 150 | 1.6

morepic-1

morepic-2

Lid, 90° bend PS

Item no. 6904353 | EAN 4012196072828

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover, 90° bend for PS cable ladder system.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Technical data

Dimension	975x975x15
Material	Steel
Plate thickness	1,6 mm

Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
PSCover 150 HDG	150 mm	1.6 mm	6904353		1
PSCover 200 HDG	200 mm	1.6 mm	6904357		1
PSCover 300 HDG	300 mm	1.6 mm	6904361		1
PSCover 400 HDG	400 mm	1.6 mm	6904365		1
PSCover 500 HDG	500 mm	2 mm	6904369		1
PSCover 600 HDG	600 mm	2 mm	6904373		1
PSCover 800 HDG	800 mm	2 mm	6904377		1
PSCover 1000 HDG	1000 mm	2 mm	6904381		1

Downloads

Data sheet PSCover 150 HDG / 6904353 , 0.09MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity PSCover 150 HDG / 6904353 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

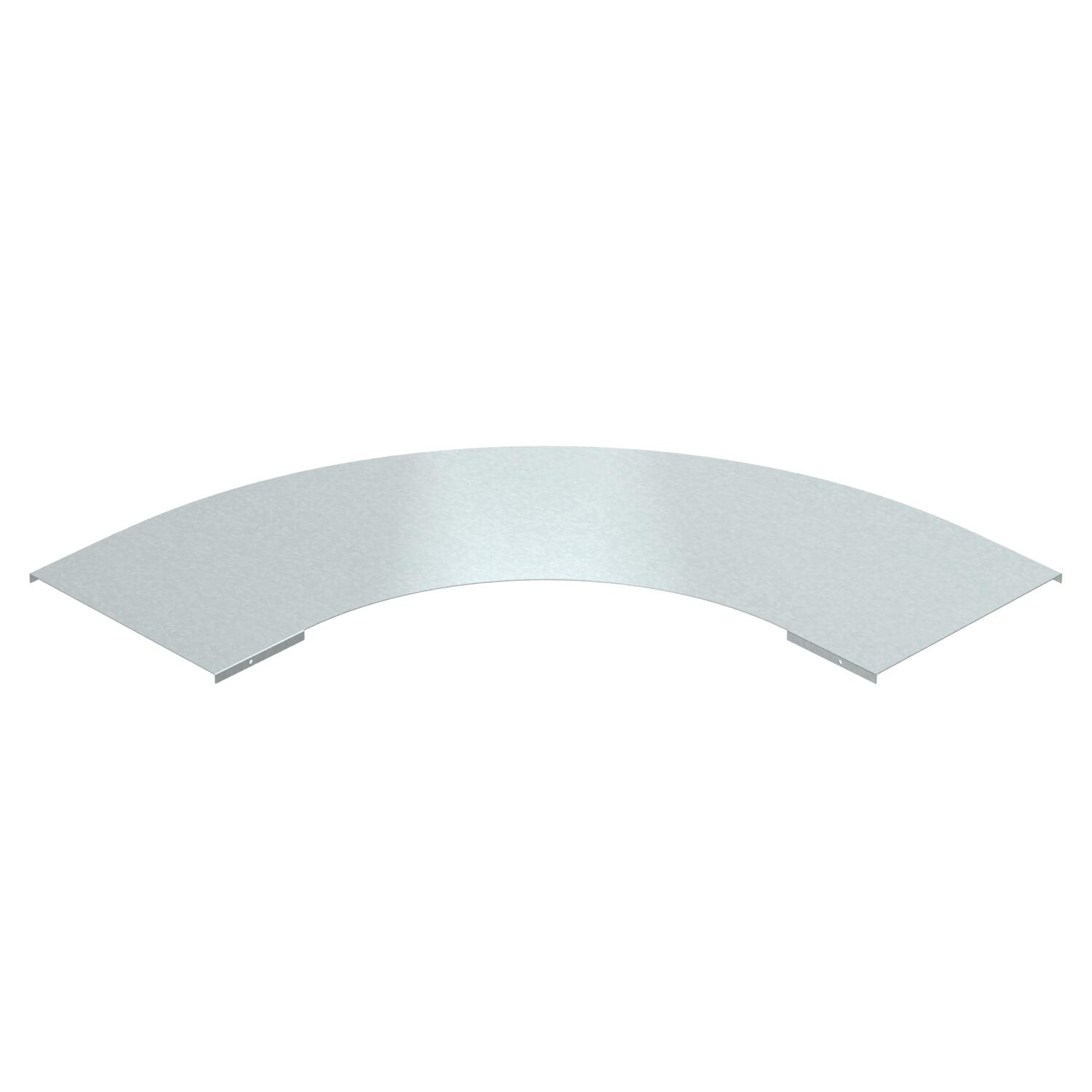

Product graphic PSCover 150 HDG / 6904353, 35.18 kB, jpg

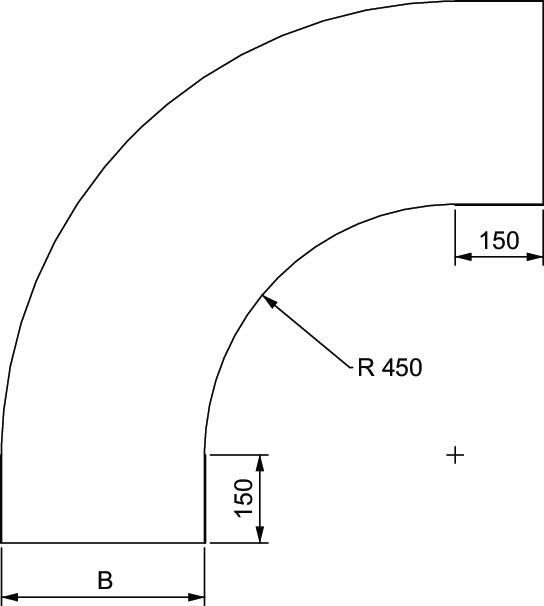

Scale drawing PSCover 150 HDG / 6904353, 3.51 kB, jpg

PSCover 150 HDG / 6904353
