Lid, 90° bend OL 150 | 1.6

morepic-1

morepic-2

Lid, 90° bend OL

Item no. 6903157 | EAN 4012196069941

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover, 90° bend for OL cable ladder system.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Technical data

Dimension	750x750x15
Material	Steel
Plate thickness	1,6 mm

Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
OLCover 150 HDG	150 mm	1.6 mm	6903157		1
OLCover 200 HDG	200 mm	1.6 mm	6903161		1
OLCover 300 HDG	300 mm	1.6 mm	6903165		1
OLCover 400 HDG	400 mm	1.6 mm	6903169		1
OLCover 500 HDG	500 mm	2 mm	6903173		1
OLCover 600 HDG	600 mm	2 mm	6903177		1
OLCover 800 HDG	800 mm	2 mm	6903181		1
OLCover 1000 HDG	1000 mm	2 mm	6903185		1

Downloads

Data sheet OLCover 150 HDG / 6903157 , 0.12MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity OLCover 150 HDG / 6903157 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

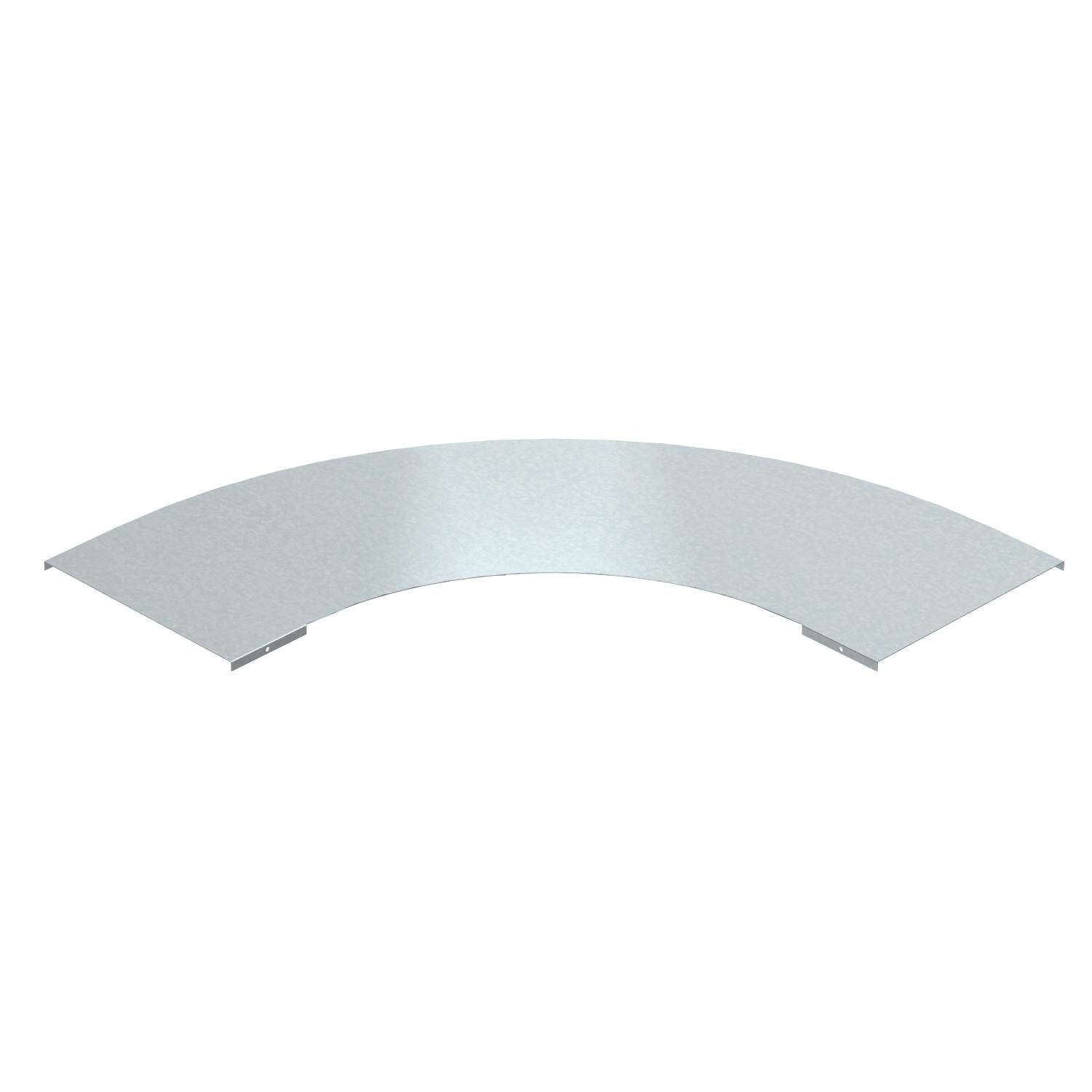

Product graphic OLCover 150 HDG / 6903157, 37.39 kB, jpg

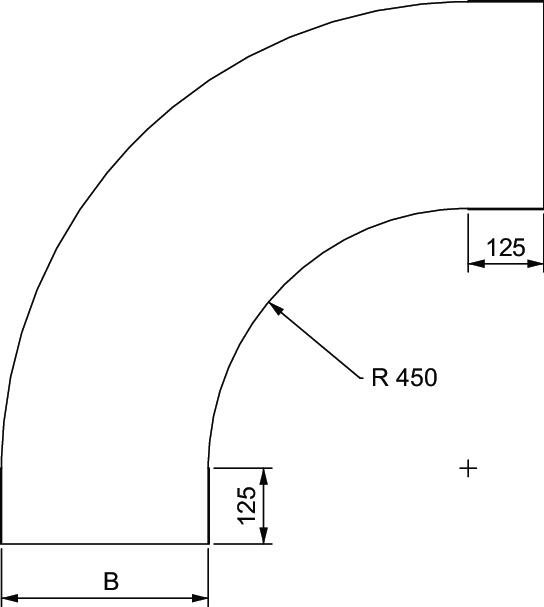

Scale drawing OLCover 150 HDG / 6903157, 3.51 kB, jpg
