isCon® conductor, Basic black 20 | 0.45 | 100 | 35

isCon® conductor, Basic black

Item no. 5408014 | EAN 4012196591664

Item no. / Types

Diameter

equivalent separating distance s(e)/m

Nomal ring (approx. m)

Cross-section	35 mm²

Product description

Product description

Please refer to the mounting instructions for information on routing the OBO isCon® Basic conductor.

• Highly voltage-resistant, insulated conductor
• For maintenance of the separation distance according to IEC 62305 (VDE 0185-305-3)
• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H1/150 kA
• Equivalent separation distance se ≤ 0.45 m (air) and se ≤ 0.90 m (solid material)
• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)
• Halogen-free
• Fire load 3.3 kWh/m

Technical data

Technical data

Colour	Black

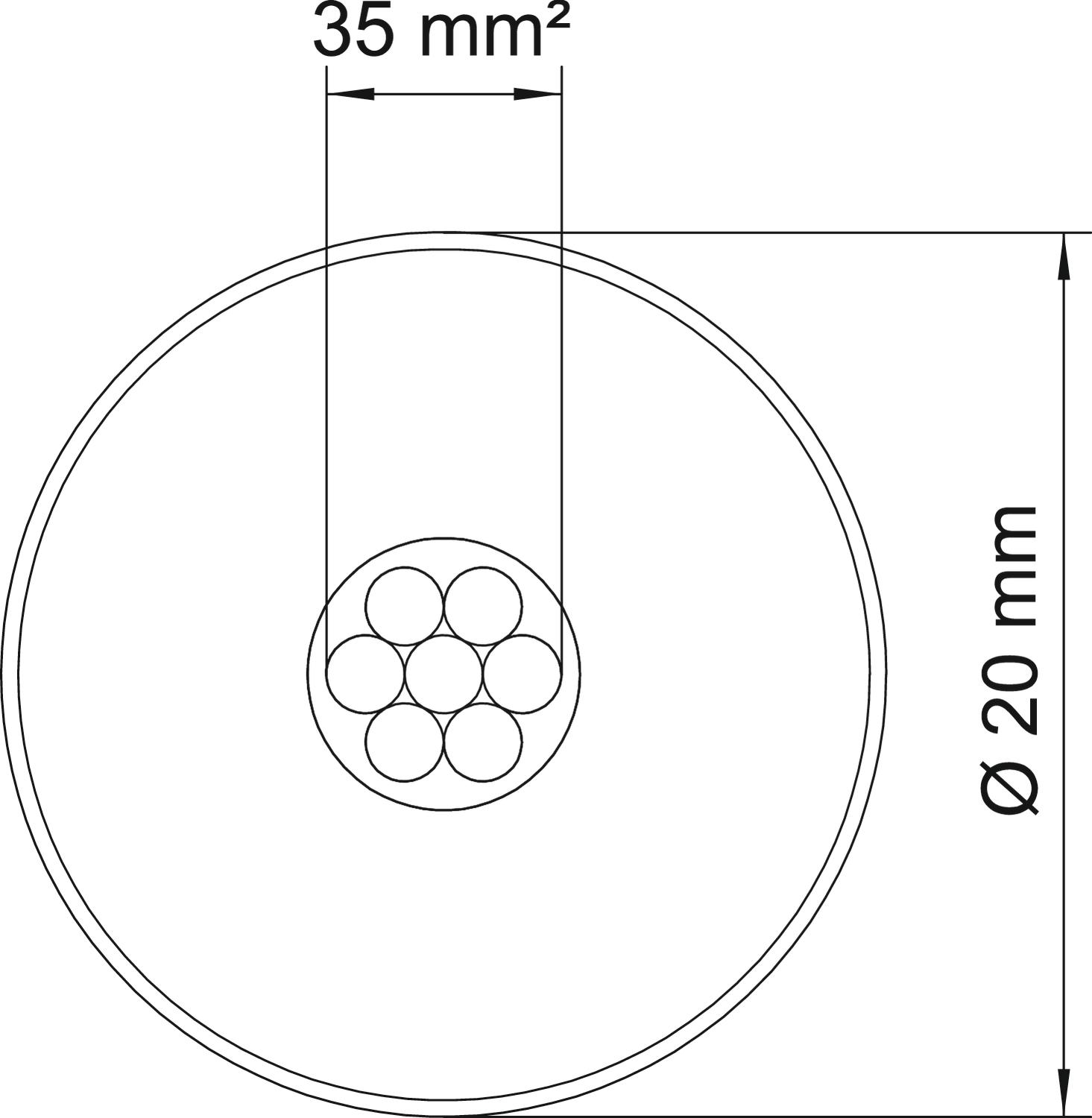

Cross-section	35 mm²
Diameter	20 mm
Dimension	Ø20mm

equivalent separating distance s(e)/m	0,45
Length tolerance ±	5 %
Nomal ring (approx. m)	100

All types

All types

Types	Diameter	equivalent separating distance s(e)/m	Nomal ring (approx. m)	Cross-section	Item no.	Quantity	SSU
isCon Pro+ 75 SW	23 mm	0.75	100	35 mm²	5408004	m	100 m
isCon Pro+ 75 SW	23 mm	0.75	250	35 mm²	5408006	m	250 m
isCon BA 45 SW	20 mm	0.45	100	35 mm²	5408014	m	100 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

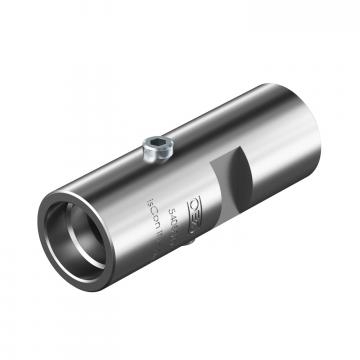

Connection element for installation in the insulated interception rod isFang IN	isCon IN con 2	5408019	piece	1 piece

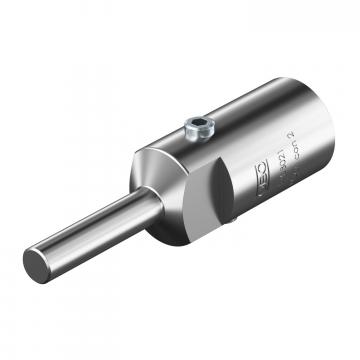

isCon® connection element	isCon con 2	5408021	piece	2 piece

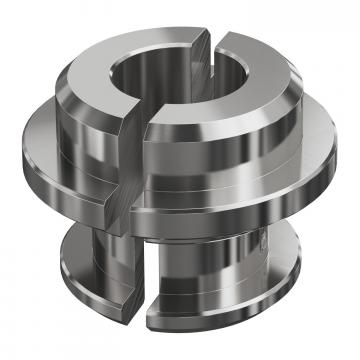

Potential connection for isCon® Basic and Professional in the isFang IN insulated air-termination rod	isCon IN PAE 2	5408032	piece	1 piece
Potential connection	isCon PAE	5408036	piece	2 piece
