Intersection PT76 FT

Item no. / Types

Width

Product description

Product description

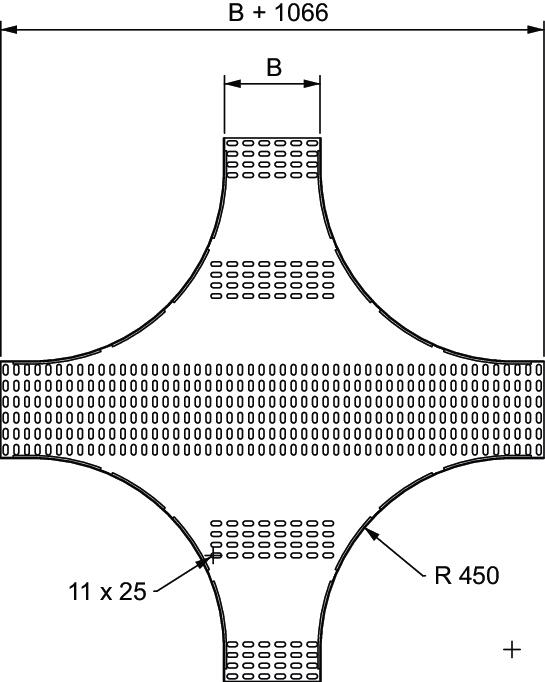

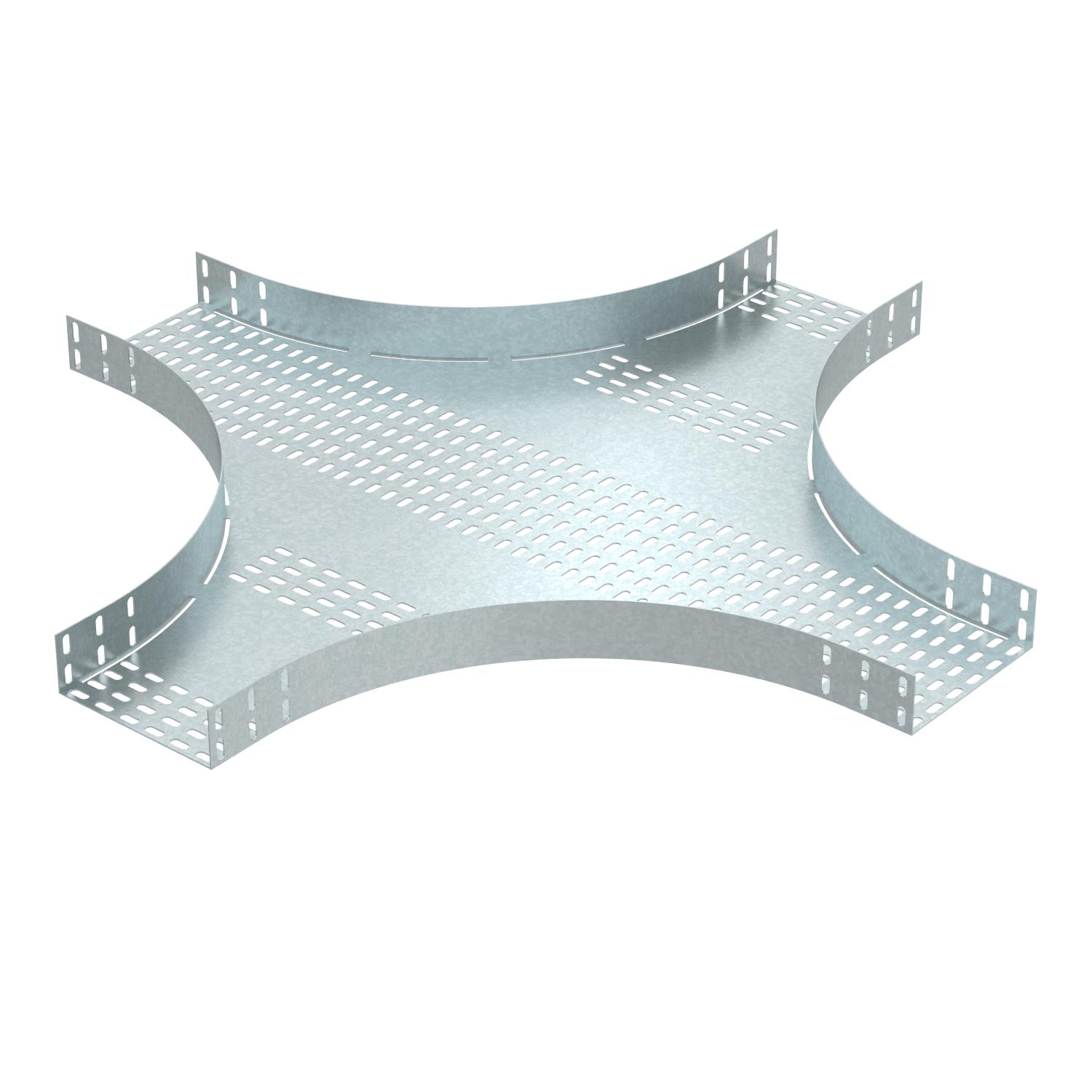

Cross-over, horizontal, for the cable tray types PT76.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Width	76 mm

All types

All types

Types	Width	Item no.	SSU
PT76 76 HDG	76 mm	6900803	1
PT76 114 HDG	114 mm	6900807	1
PT76 152 HDG	152 mm	6900811	1
PT76 228 HDG	228 mm	6900815	1
PT76 304 HDG	304 mm	6900819	1
PT76 457 HDG	457 mm	6900823	1
PT76 609 HDG	609 mm	6900827	1
