Intersection PT38 FT

Item no. / Types

Width

Product description

Product description

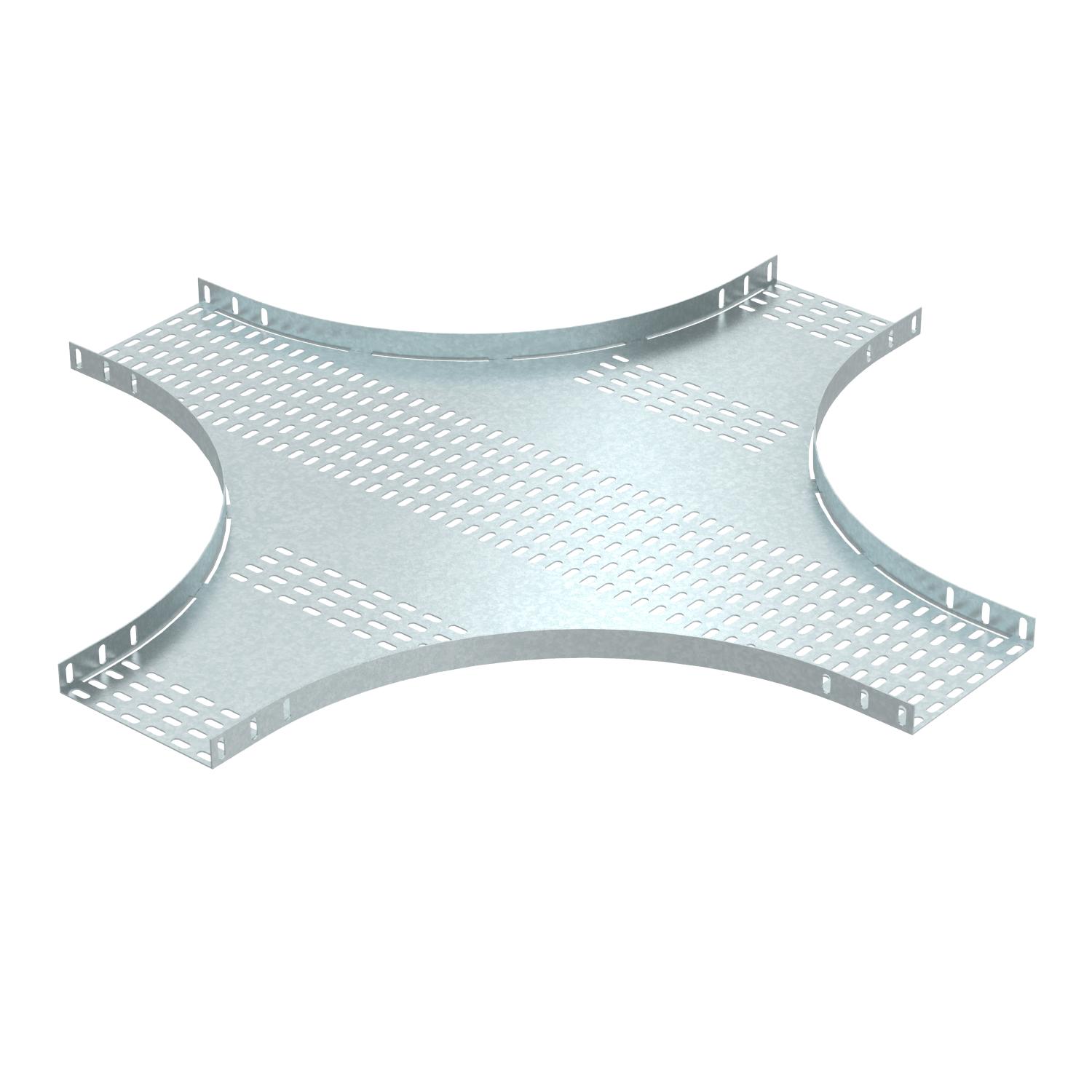

Cross-over, horizontal, for the cable tray types PT38.

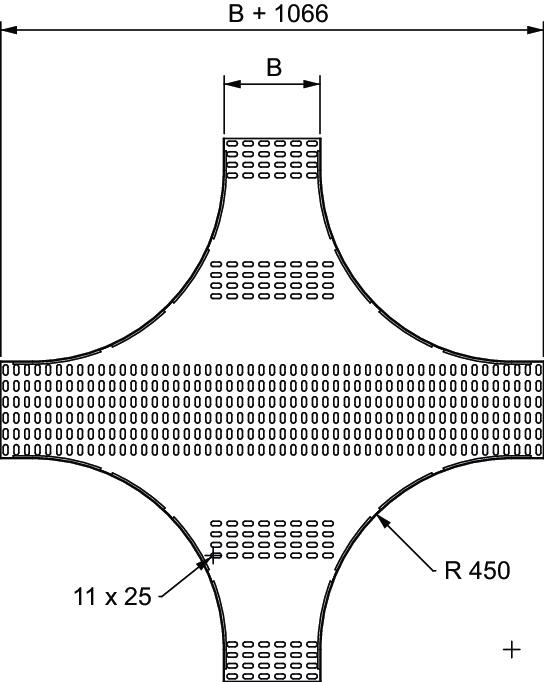

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed

Height	38 mm

Width	76 mm

All types

Types	Width	Item no.	SSU
PT38 76 HDG	76 mm	6900503	1
PT38 114 HDG	114 mm	6900507	1
PT38 152 HDG	152 mm	6900511	1
PT38 228 HDG	228 mm	6900515	1
PT38 304 HDG	304 mm	6900519	1

Downloads

Data sheet PT38 76 HDG / 6900503 , 0.15MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

PT38 76 HDG / 6900503
