Intersection PS150

Item no. 6904253 | EAN 4012196072538

Item no. / Types

Width

Rail thickness	2 mm

Product description

Product description

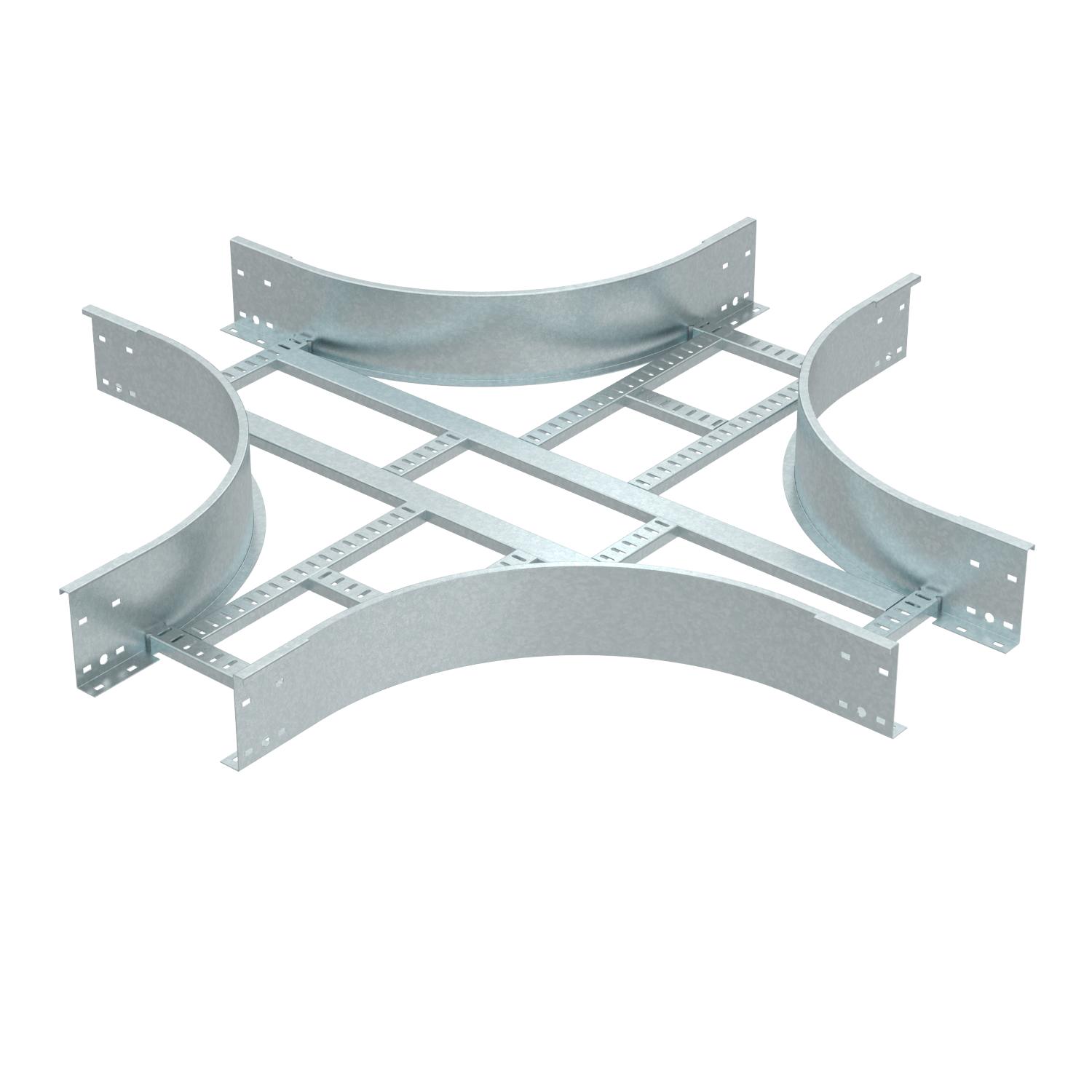

Intersection for all PS150 cable ladder types of 150 mm side height.

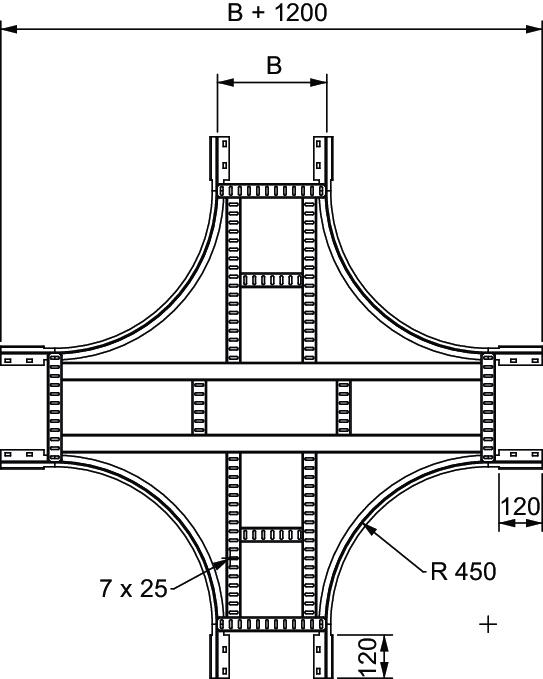

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Technical data

Dimension	1350x1350x15
Height	150 mm
Material	Steel

Rail thickness	2 mm
Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Width	Rail thickness	Item no.	SSU
PS150 150 HDG	150 mm	2 mm	6904253	1
PS150 200 HDG	200 mm	2 mm	6904257	1
PS150 300 HDG	300 mm	2 mm	6904261	1
PS150 400 HDG	400 mm	2 mm	6904265	1
PS150 500 HDG	500 mm	2 mm	6904269	1
PS150 600 HDG	600 mm	2 mm	6904273	1
PS150 800 HDG	800 mm	2 mm	6904277	1
PS150 1000 HDG	1000 mm	2 mm	6904281	1
