Intersection OL55

Item no. / Types

Width

Rail thickness	1.6 mm

Product description

Product description

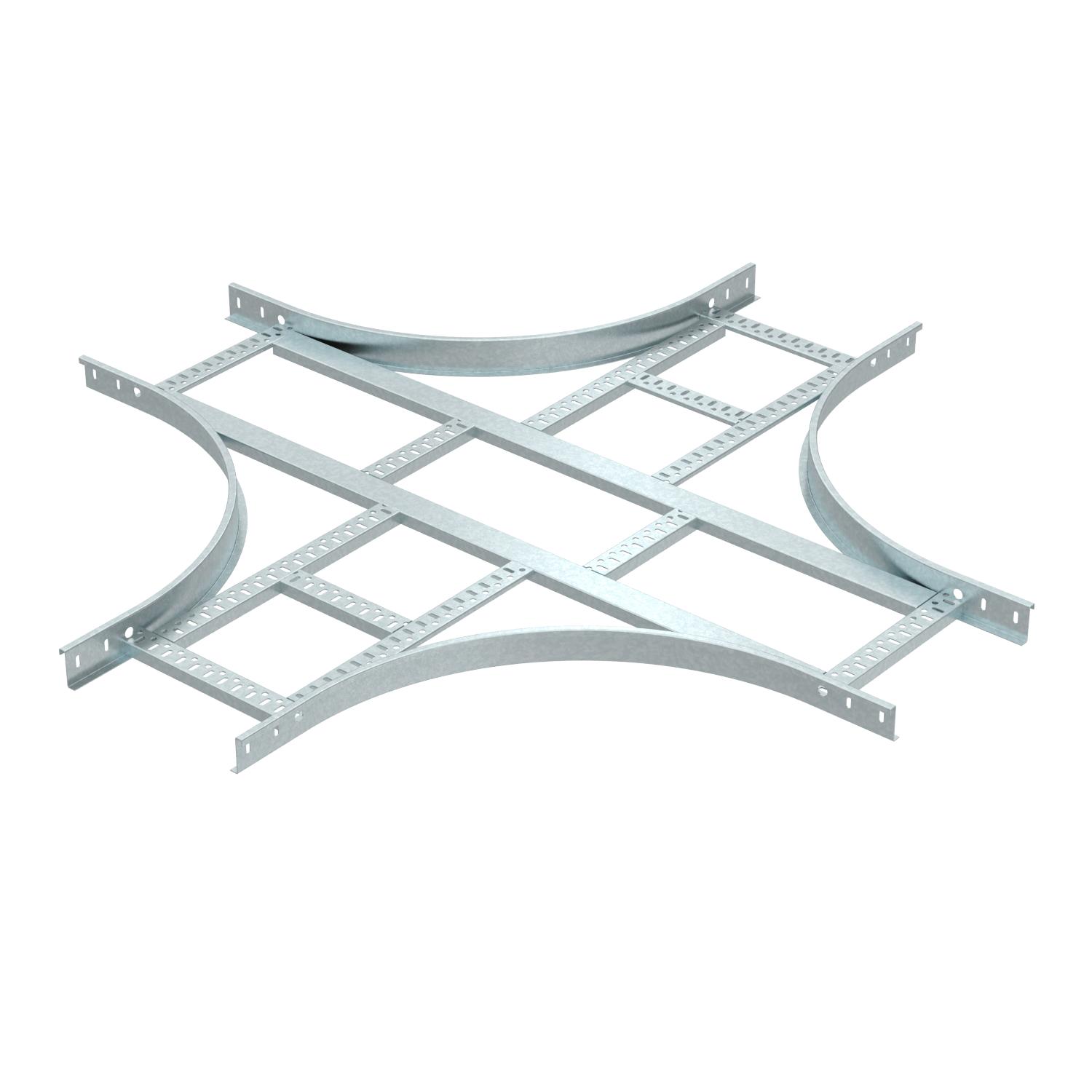

Intersection for all OL55 cable ladder types of 55 mm side height.

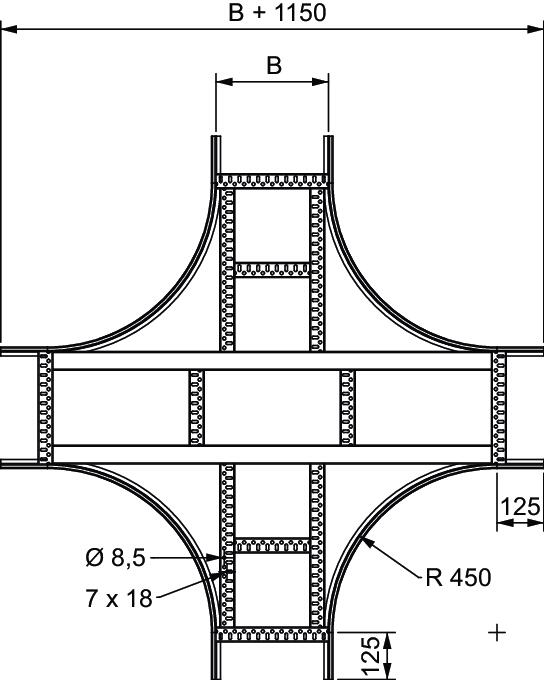

Accessory radius = 450 mm. Not available in other radiuses.

Technical data

All types

All types

Types	Width	Rail thickness	Item no.	SSU
OL55 100 HDG	100 mm	1.6 mm	6902753	1
OL55 150 HDG	150 mm	1.6 mm	6902757	1
OL55 200 HDG	200 mm	1.6 mm	6902761	1
OL55 300 HDG	300 mm	1.6 mm	6902765	1

Downloads

Data sheet OL55 100 HDG / 6902753 , 0.13MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

OL55 100 HDG / 6902753
