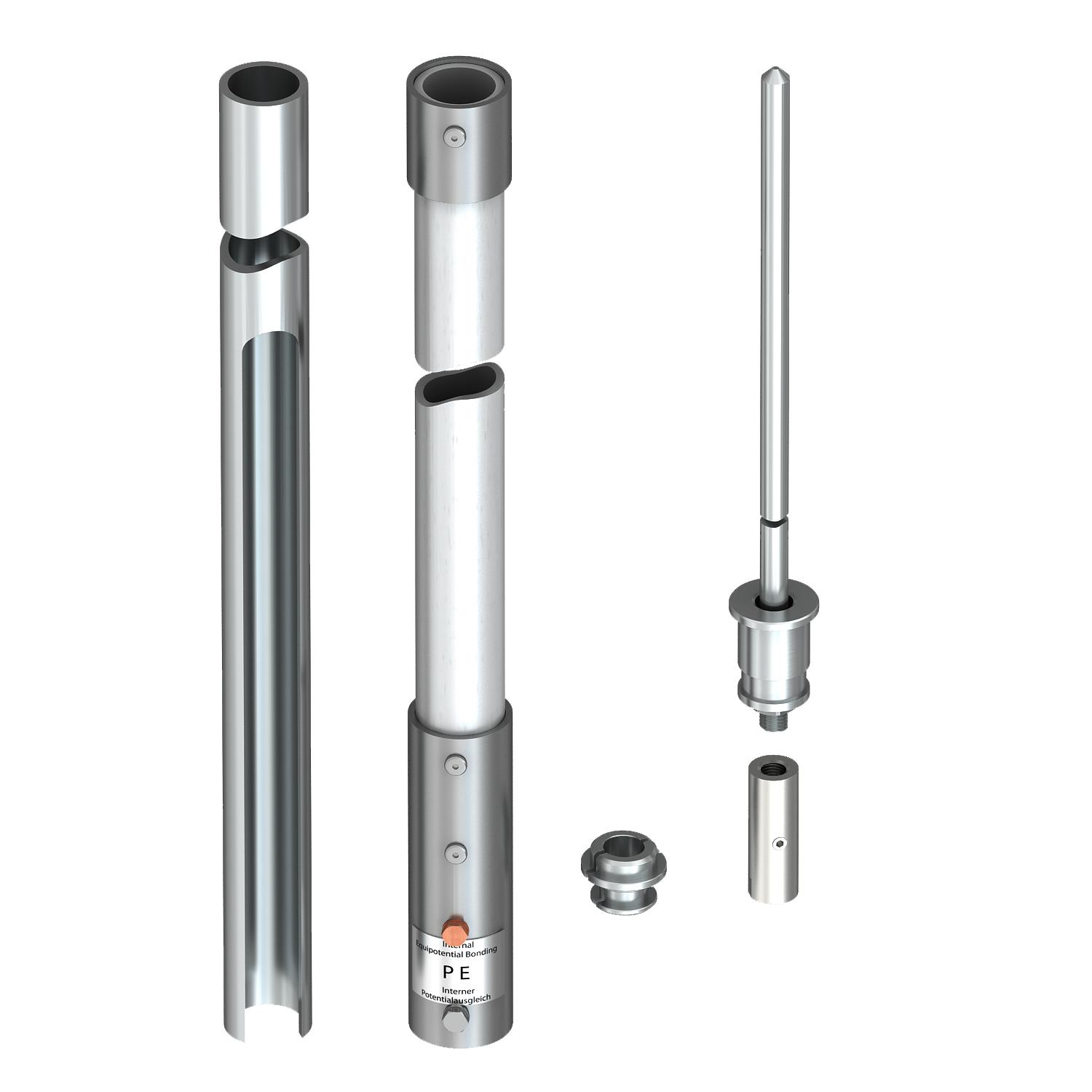

- Product description
-
Product description• For installation of the OBO isCon® Pro+ conductor in the pipe
• With side conductor outlet matching isFang air-termination rod stand with side outlet, type isFang 3B-A
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Inclusive connection element (type isCon IN connect)
• Inclusive potential connection (type isCon In PAE)
• Aluminium standpipe and air-termination tip
• Centre section made of fibre-glass reinforced plastic (GRP)
- Technical data
-
Technical data

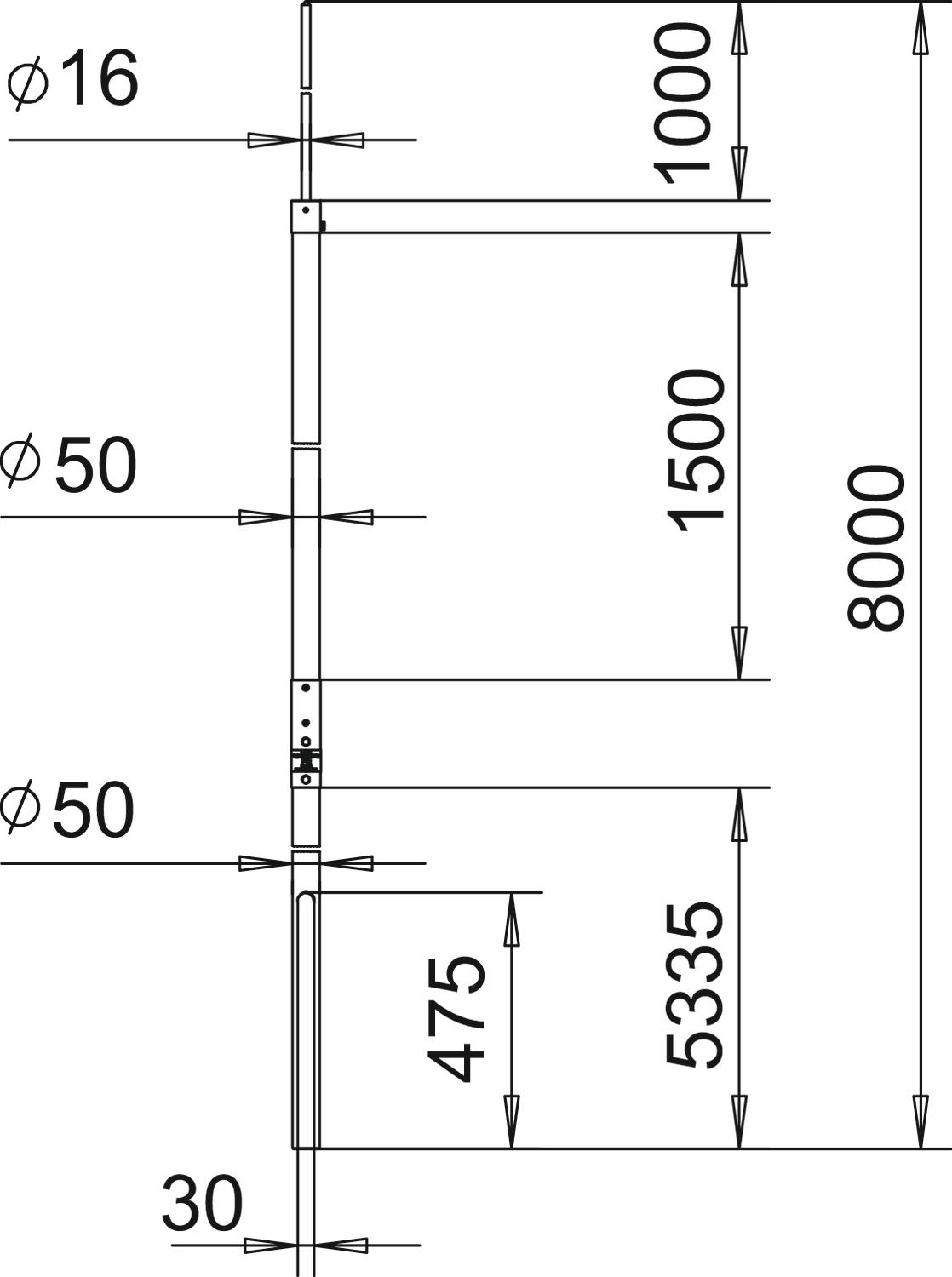

Connection Round conductor Dimension 8000mm Dimension A 5335 mm Dimension B 1000 mm Dimension d min. 50 mm Dimension H 1500 mm Dimension L 8000 mm High voltage-resistant, insulated version yes Length 8000 mm Material Fibre-glass-reinforced plastic Version for Air-termination rod - All types
- Downloads
-
Data sheet isFang IN-A 8000 / 5408888 , 0.19MB , pdfEU declaration of conformity isFang IN-A 8000 / 5408888 , 0.06MB , pdfMounting instructions Mounting instructions, isFang tripod , 0.18MB , pdfMounting instructions Mounting instructions, isFang IN insulated air-termination mast , 0.13MB , pdf
