Insulated air-termination rod
Item no. 5408947 | EAN 4012195785347
- Product description
-
Product description• For the isolated creation of air-termination systems
• Suitable for isFang air-termination rod stand, type isFang 3B-100/150
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• For installation on the building structure with isFang support
• Fastening of the OBO isCon® conductor possible using accessories
• Suitable for externally routed isCon® conductors
• Aluminium standpipe
• Centre section made of fibre-glass reinforced plastic (GFK)
• Aluminium air-termination tip
-
- Technical data
-
Technical data

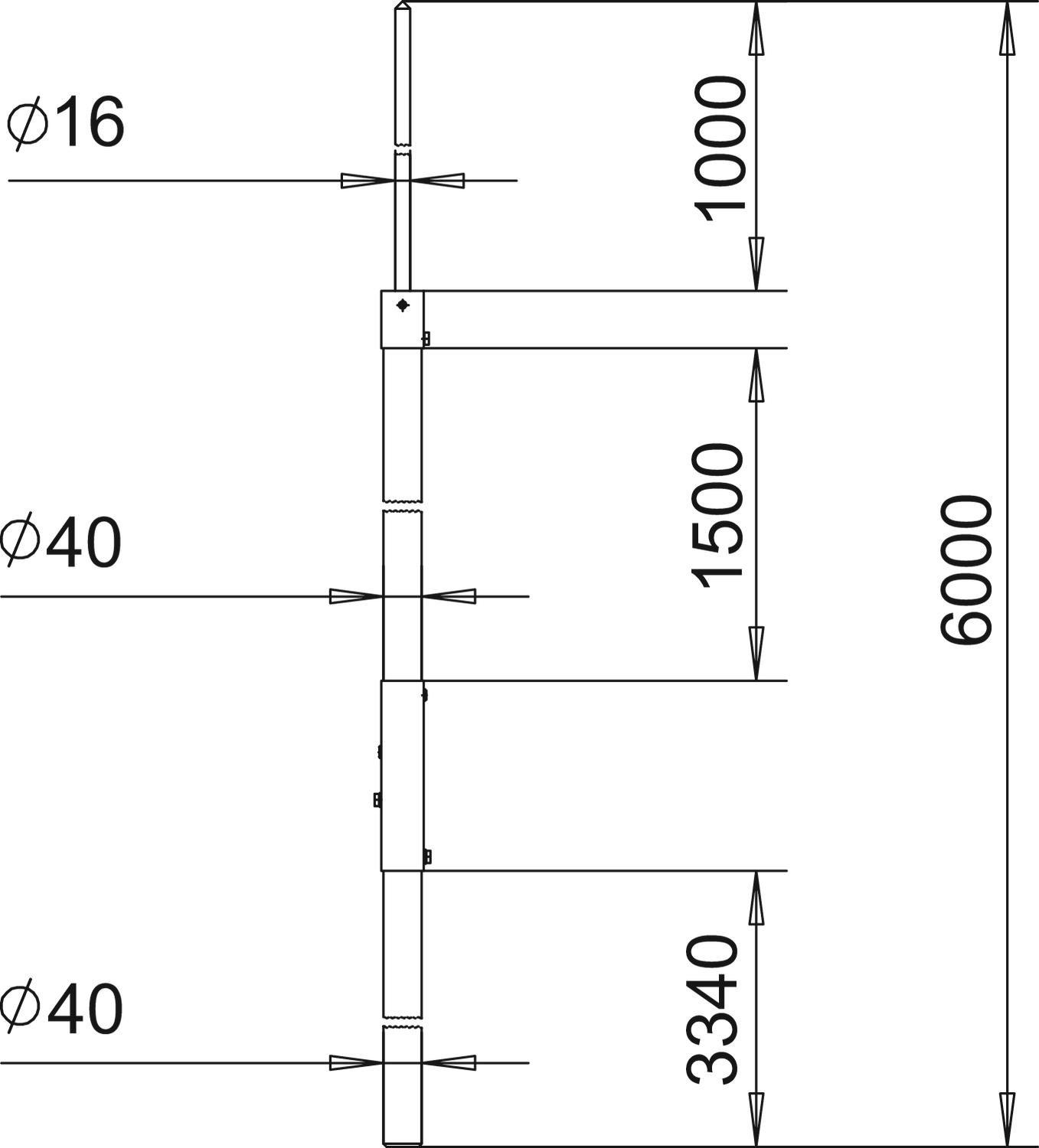

Colour Light grey Connection Round conductor Dimension 6000mm Dimension A 3340 mm Dimension B 1000 mm Dimension d min. 40 mm Dimension H 1500 mm High voltage-resistant, insulated version yes Length 6000 mm Material Fibre-glass-reinforced plastic Version for Air-termination rod - All types
-
System accessories
Products Types Item no. Quantity SSU
Concrete base for FangFix system, min. 16 kg
F-FIX-S16 5403227 1 piece
Base for FangFix system 16 kg for mounting the isFang tripod
F-FIX-B16 3B 5403238 10 piece
isFang tripod
isFang 3B-100 AL 5408966 1 piece
isFang-3B threaded rod
isFang 3B-G2 5408972 3 piece - Downloads
-
Data sheet isFang 6000 AL / 5408947 , 0.17MB , pdfEU declaration of conformity isFang 6000 AL / 5408947 , 0.03MB , pdfREACH Declaration of conformity isFang 6000 AL / 5408947 , 0.12MB , pdfRoHS Declaration of conformity isFang 6000 AL / 5408947 , 0.12MB , pdf
