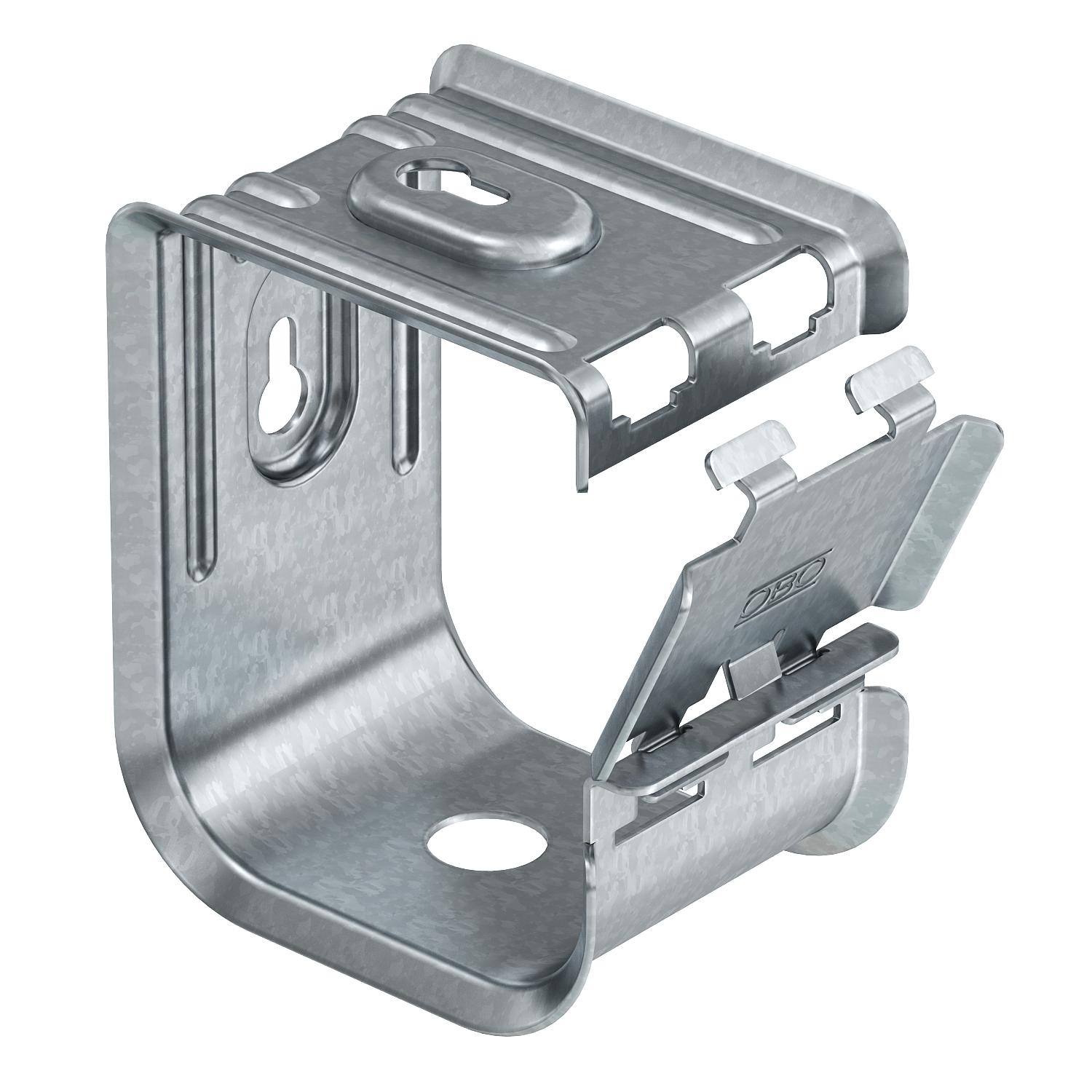

Grip collection clamp, metal 70 FS
Item no. 2207060 | EAN 4012195022497
- Product description
-
Product descriptionMetal grouped support for high mechanical stability, even in case of fire. Suitable for safe mounting above fire protection ceilings. Also approved as a cable-specific variant for the maintenance of electrical function to DIN 4102 Part 12. For wall and ceiling mounting. Lock can be opened without tools. Detailed information on the approved routing variants can be found in the appropriate testing documentation.
-
- Technical data
-
Technical data
CO₂ Footprint (GWP) Cradle-to-Gate 1,103 kg CO₂e / 1 Piece Dimension 70x NYM3x1,5 Flame-resistant version no Halogen-free yes Maintain electrical functions yes Material Steel No. of conductors NYM 3 x 1.5 70 Surface Strip galvanized With anchor no - All types
- Downloads
-
Data sheet 2031 M 70 FS / 2207060 , 0.25MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 2031 M 70 FS / 2207060 , 0.06MB , pdfREACH Declaration of conformity 2031 M 70 FS / 2207060 , 0.12MB , pdfRoHS Declaration of conformity 2031 M 70 FS / 2207060 , 0.12MB , pdfLabel approval UL certificate, Grip grouped support , 0.33MB , pdfMounting instructions Grip M grouped support 2031 M , 0.80MB , pdf
