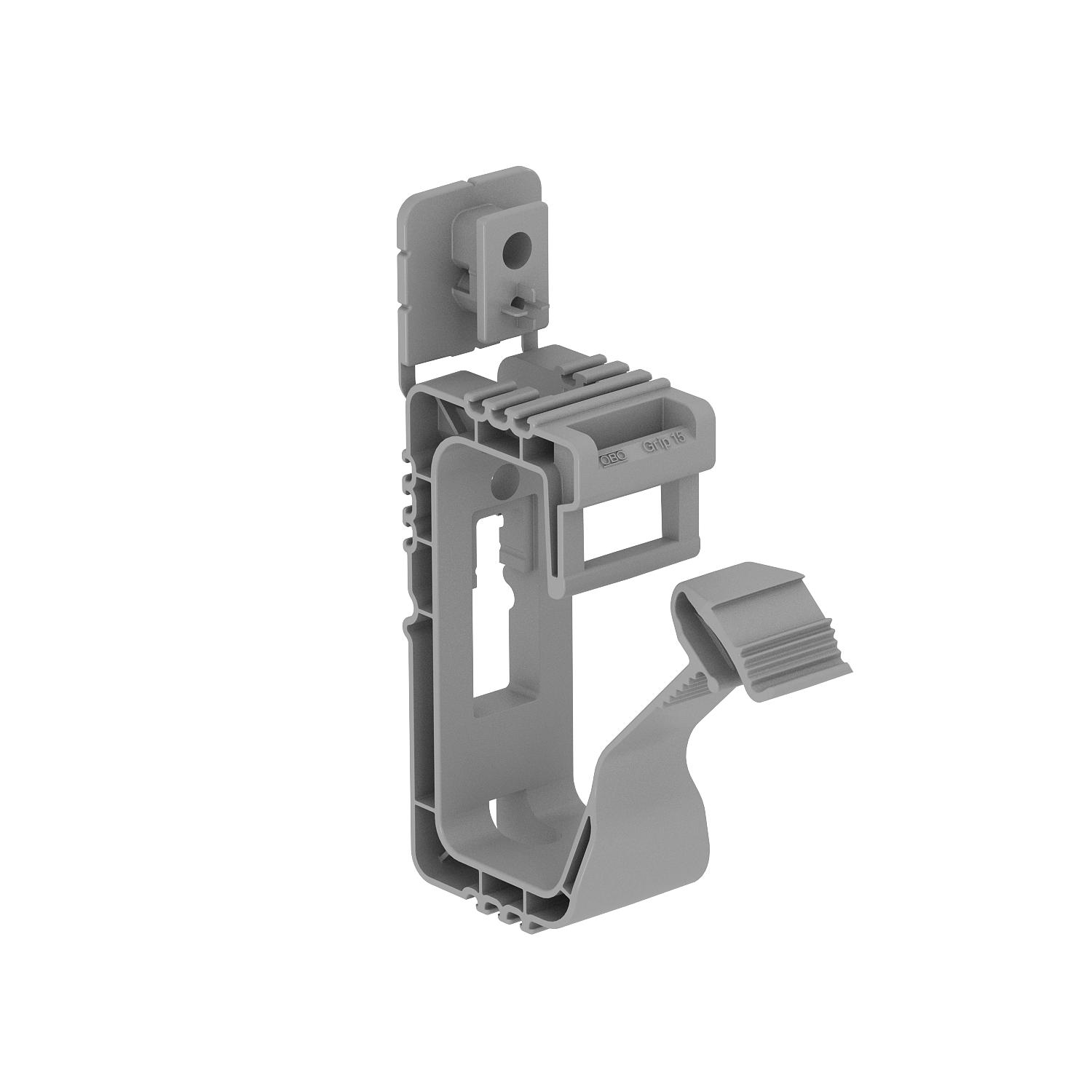

Grip 20 flame-resistant
Item no. 2205412 | EAN 4012195651659
- Product description
-

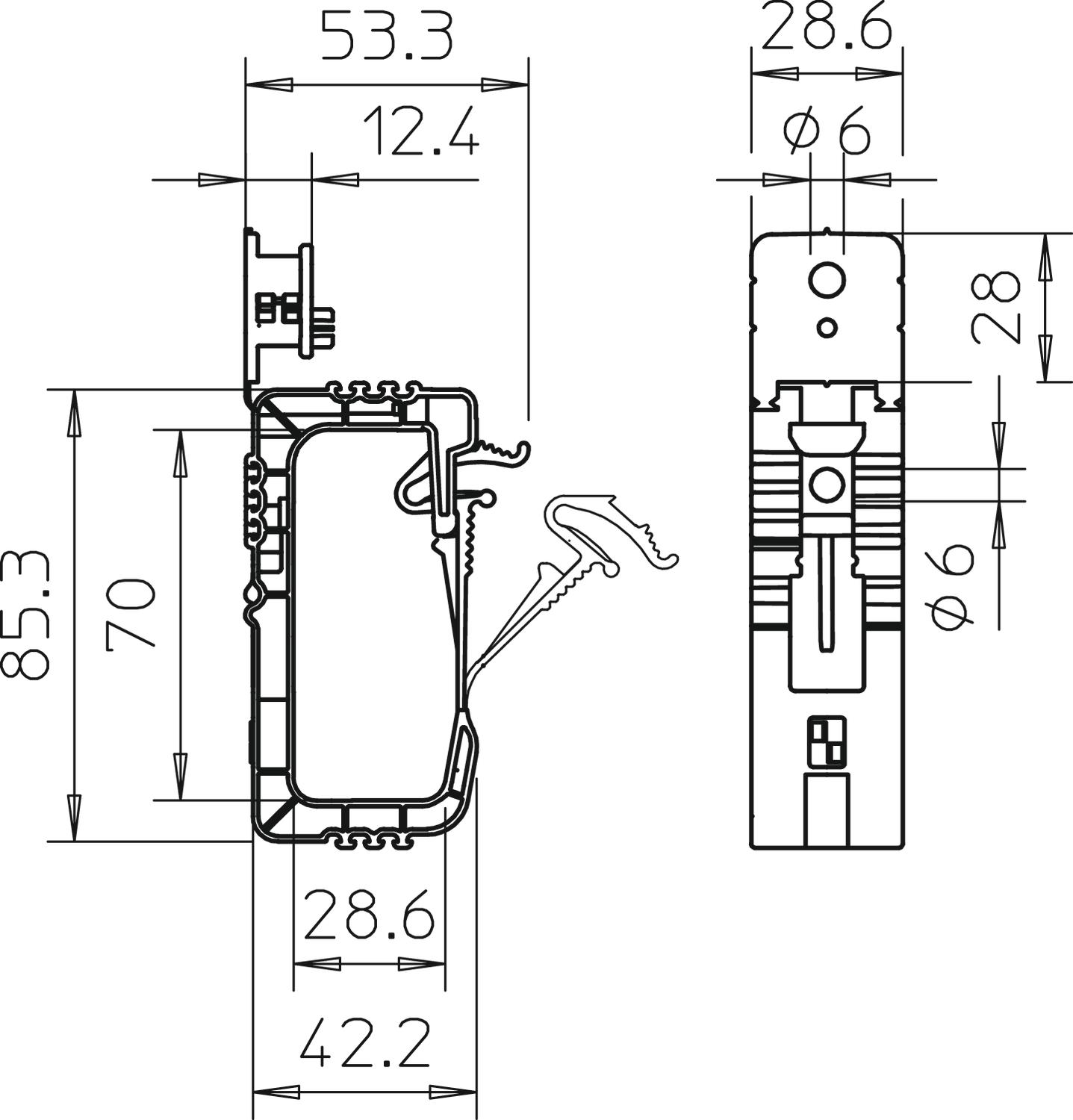

Product descriptionCable tidy with moulded fastening element, for mounting up to 20 cables NYM 3 x 1.5 mm2 on walls or ceilings. Fastening with impact anchor or push-fit anchor. Fastening hole: Ø 6 mm. Recommended fastening distance of 250–400 cm when fully assigned, depending on the respective national specifications/norms. Flame resistant to DIN VDE 0471/DIN IEC 695 Part 2-1, test temperature 960 °C.
With multifunctional fastening element.
Capacity: 2031/ 20 max. 20 cables NYM 3 x 1.5 mm²
-
- Technical data
-
Technical data
Breaking load 0,32 kN Colour Stone grey; RAL 7030 Dimension 20x NYM3x1,5 Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 960 °C Flame-resistant version yes Halogen-free yes Maintain electrical functions no Material Polypropylene No. of conductors NYM 3 x 1.5 20 With anchor no - All types
- Downloads
-
Data sheet 2031 F 20 / 2205412 , 0.23MB , pdfEU declaration of conformity 2031 F 20 / 2205412 , 0.10MB , pdfUK Declaration of Conformity 2031 F 20 / 2205412 , 0.09MB , pdfREACH Declaration of conformity 2031 F 20 / 2205412 , 0.12MB , pdfRoHS Declaration of conformity 2031 F 20 / 2205412 , 0.12MB , pdfMounting instructions Grip M grouped support 2031 , 0.99MB , pdf
