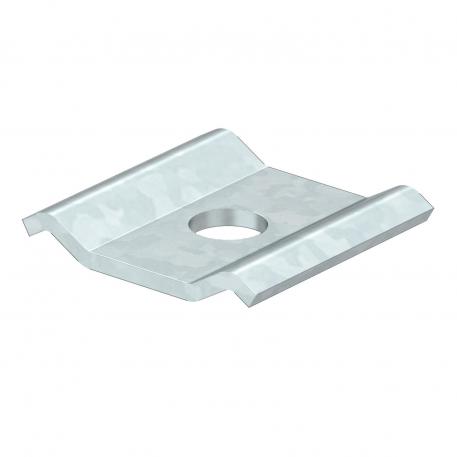

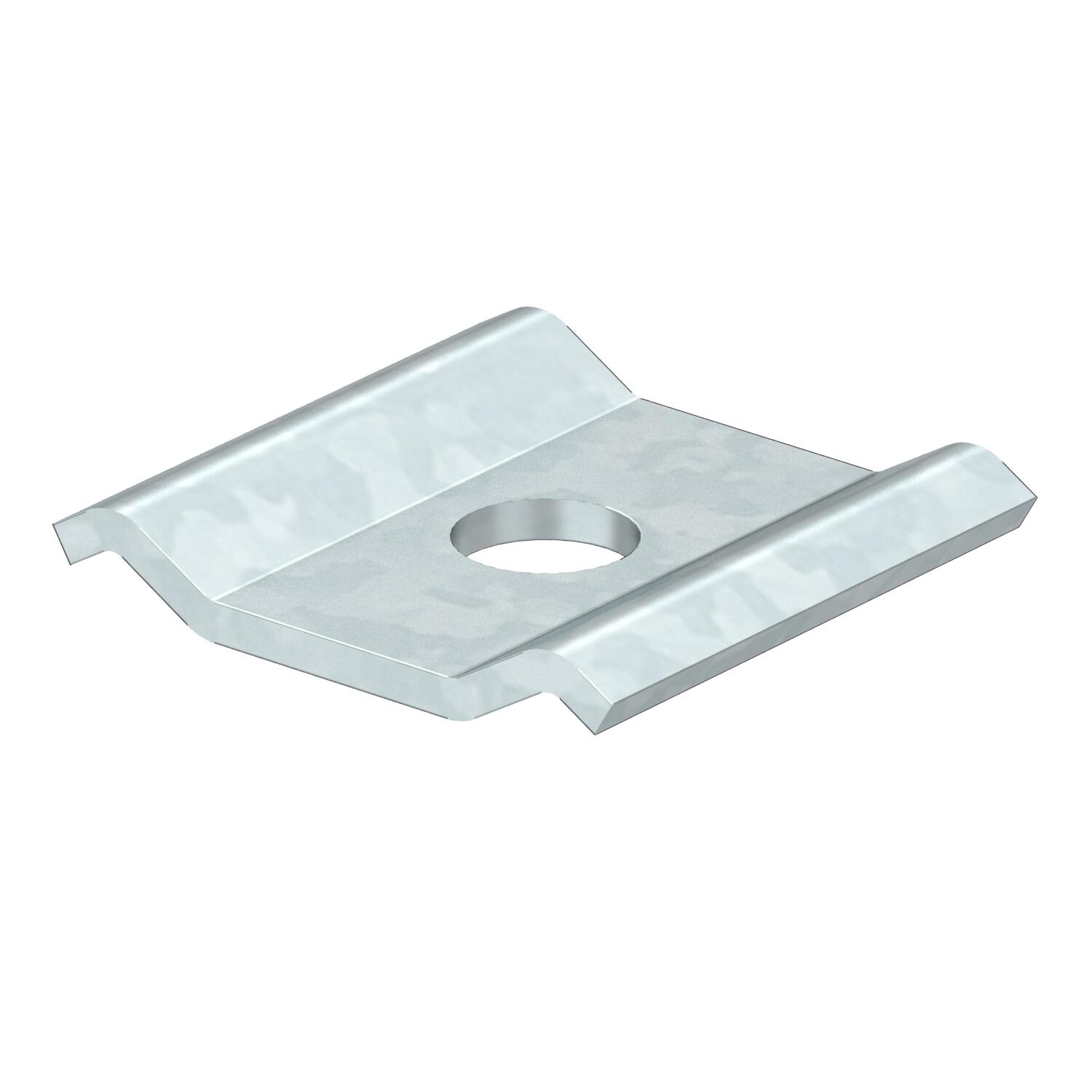

Gridspan clamping piece

Item no. / Types

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

Hold-down clamp for fixing mesh cable trays to wall or support brackets.

Technical data

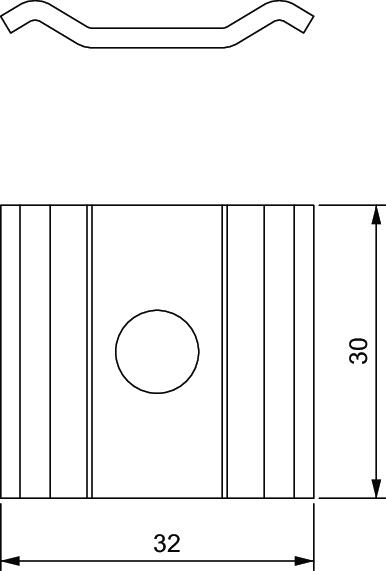

Dimension	70x32x5
Maintain electrical functions	no
Material	Steel
Rustproof steel, pickled	no
Suitable for cable ladder	no

All types

All types

Types	Material	Surface	Item no.	Quantity	SSU
GS 6 HDC HDG	Steel	Hot-dip galvanised	6909216	piece	1 piece
GS 12 HDC HDG	Steel	Hot-dip galvanised	6909218	piece	1 piece
GS HOLD D HDG	Steel	Hot-dip galvanised	9810177		1

Downloads

Data sheet GS HOLD D HDG / 9810177 , 0.14MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Catalogue Cable support systems , 45.23MB , pdf

EU declaration of conformity GS HOLD D HDG / 9810177 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Mounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
