Gridspan clamping piece | | Steel | Hot-dip galvanised

morepic-1

morepic-2

Gridspan clamping piece

Item no. 6909218 | EAN 4012196575282

Item no. / Types

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

Hold-down clamp for fixing mesh cable trays to wall or support brackets.

Technical data

Technical data

Dimension	68x32x7
Hole diameter	12 mm
Maintain electrical functions	no
Material	Steel
Rustproof steel, pickled	no

Suitable for cable ladder	no
Suitable for cable tray	no
Suitable for mesh cable tray	yes
Surface	Hot-dip galvanised
With screw accessories	yes

All types

All types

Types	Material	Surface	Item no.	Quantity	SSU
GS 6 HDC HDG	Steel	Hot-dip galvanised	6909216	piece	1 piece
GS 12 HDC HDG	Steel	Hot-dip galvanised	6909218	piece	1 piece
GS HOLD D HDG	Steel	Hot-dip galvanised	9810177		1

Downloads

Data sheet GS 12 HDC HDG / 6909218 , 0.15MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Mesh cable tray systems , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity GS 12 HDC HDG / 6909218 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Mounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf

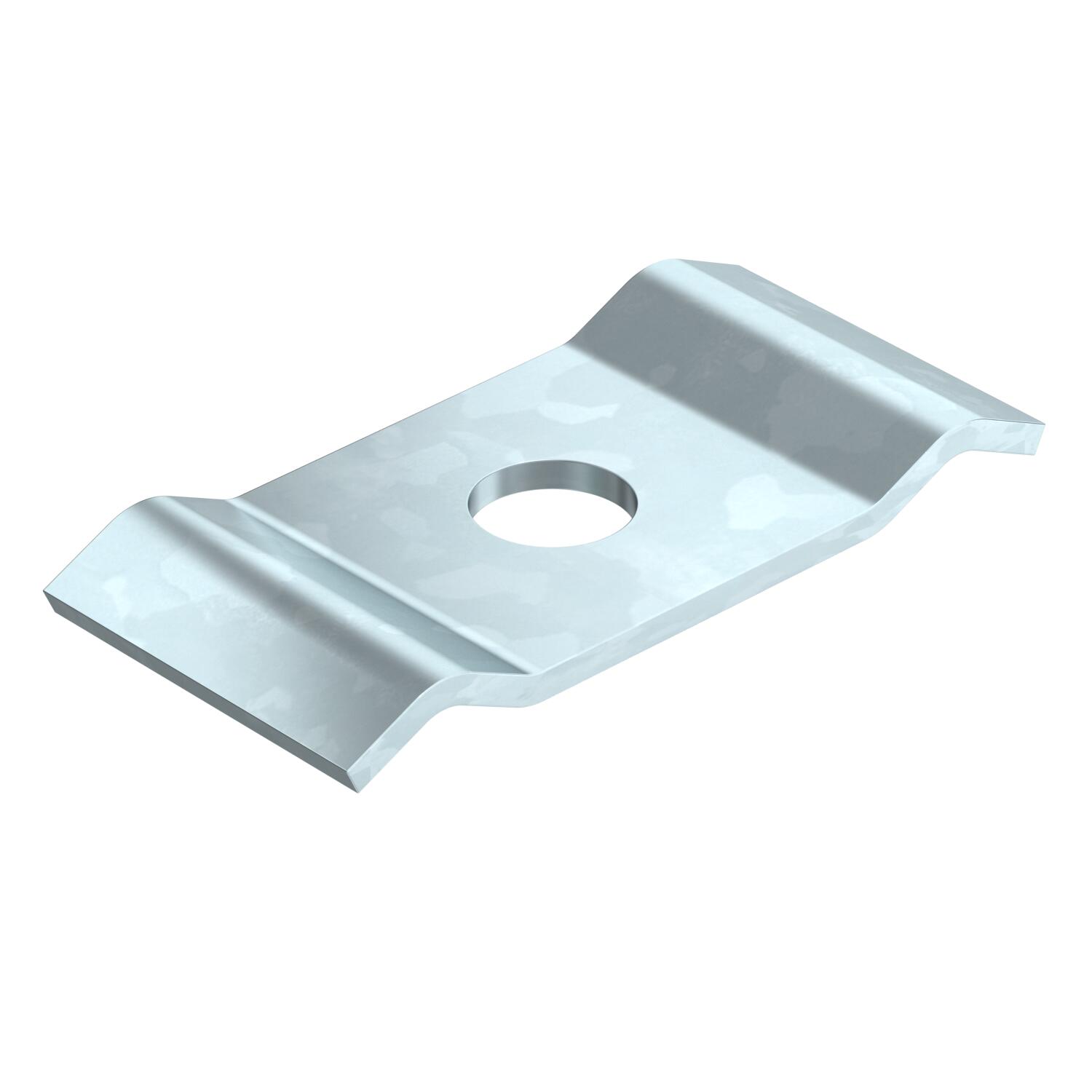

Product graphic GS 12 HDC HDG / 6909218, 44.82 kB, jpg

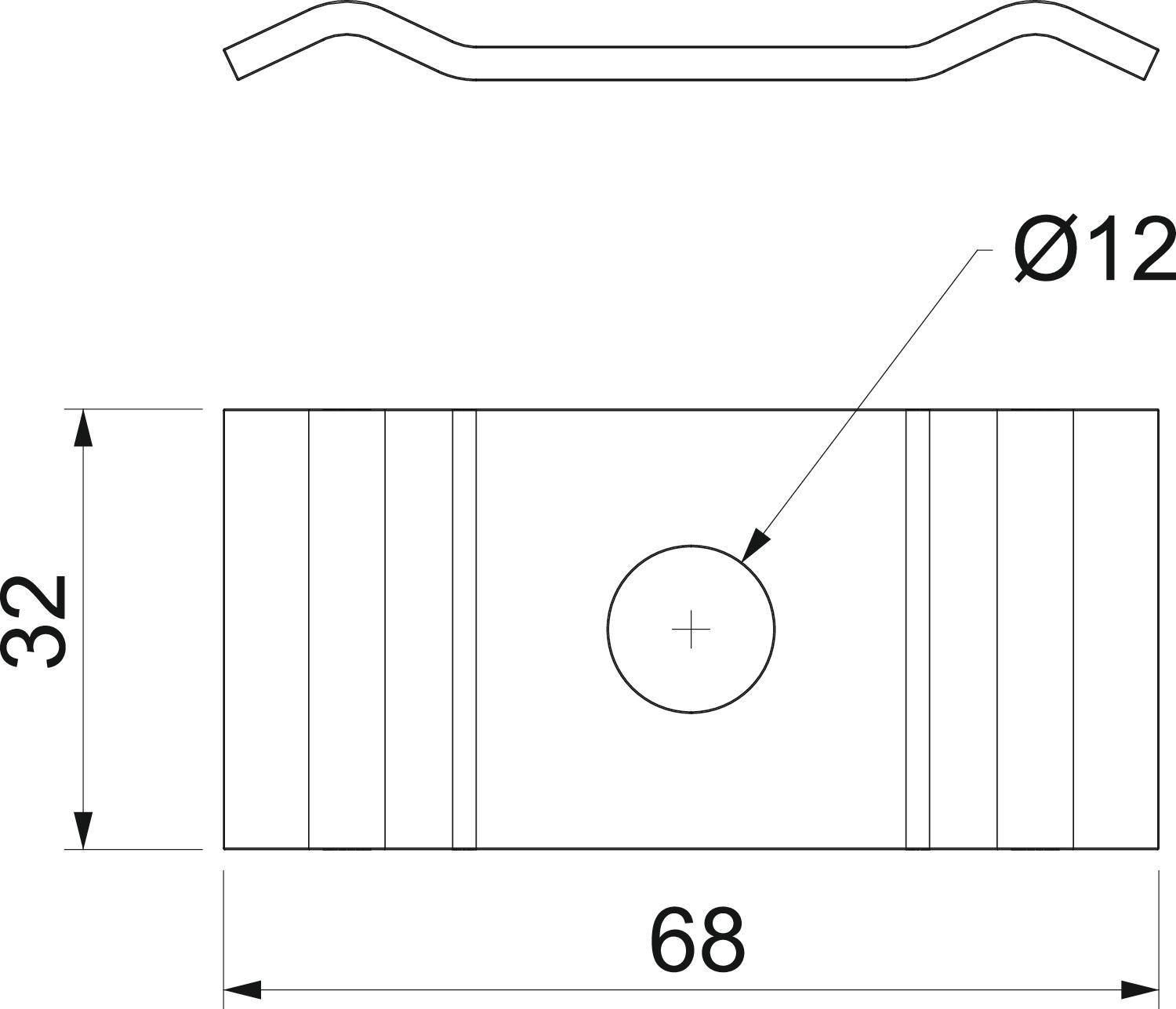

Scale drawing GS 12 HDC HDG / 6909218, 58.40 kB, jpg

GS 12 HDC HDG / 6909218
