Gridspan clamping piece

Item no. 6909216 | EAN 4012196575329

Item no. / Types

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

Hold-down clamp for fixing mesh cable trays to wall or support brackets.

Technical data

Technical data

Dimension	68x32x7
Hole diameter	6 mm
Maintain electrical functions	no
Material	Steel
Rustproof steel, pickled	no

Suitable for cable ladder	no
Suitable for cable tray	no
Suitable for mesh cable tray	yes
Surface	Hot-dip galvanised
With screw accessories	yes

All types

All types

Types	Material	Surface	Item no.	Quantity	SSU
GS 6 HDC HDG	Steel	Hot-dip galvanised	6909216	piece	1 piece
GS 12 HDC HDG	Steel	Hot-dip galvanised	6909218	piece	1 piece
GS HOLD D HDG	Steel	Hot-dip galvanised	9810177		1

Downloads

Data sheet GS 6 HDC HDG / 6909216 , 0.16MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Mesh cable tray systems , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity GS 6 HDC HDG / 6909216 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Mounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf

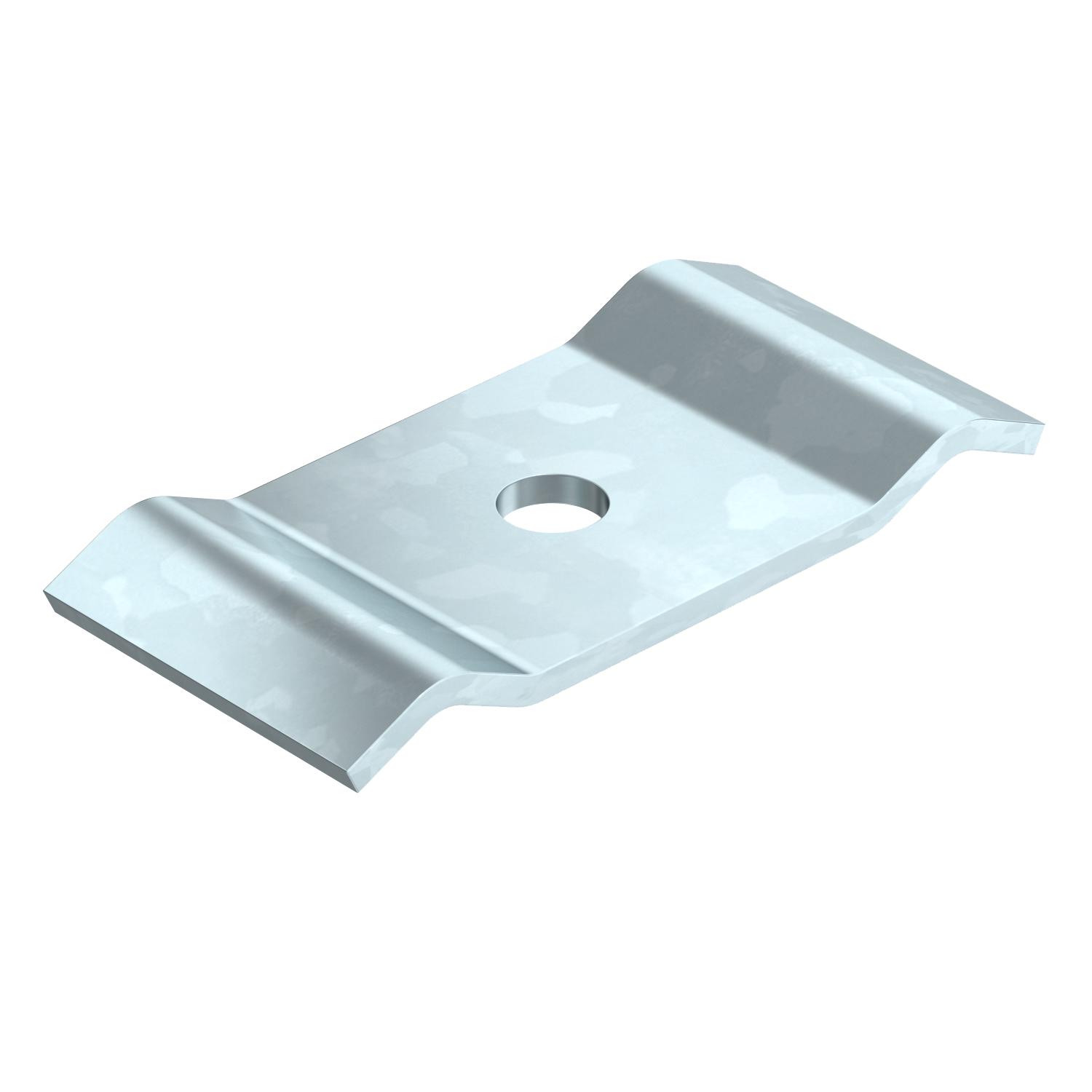

Product graphic GS 6 HDC HDG / 6909216, 44.50 kB, jpg

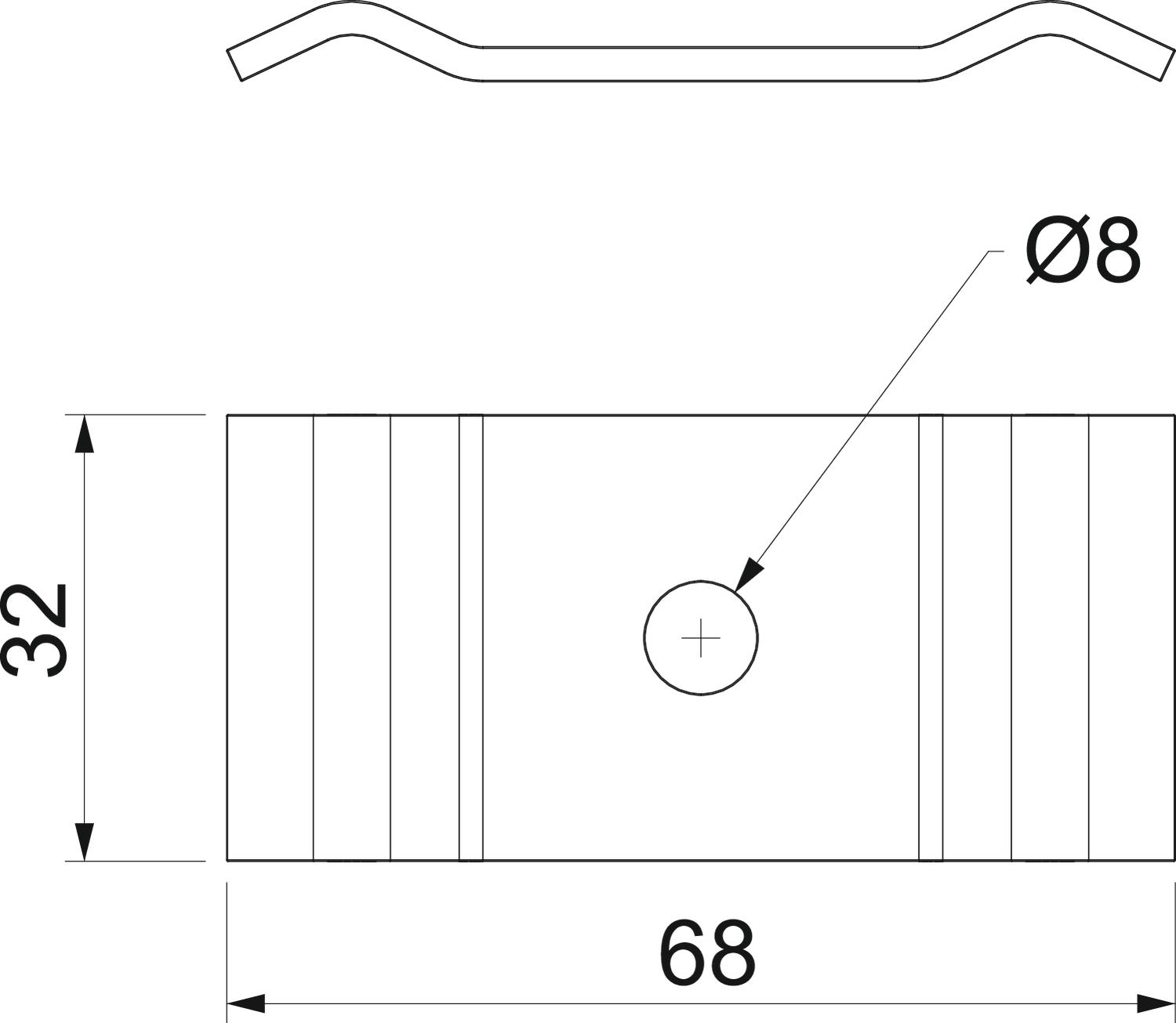

Scale drawing GS 6 HDC HDG / 6909216, 61.15 kB, jpg
