Folding clamp and connection terminal up to 5 mm Cu plate thickness Rd 8 | 5 |
morepic-1 morepic-2 video-1

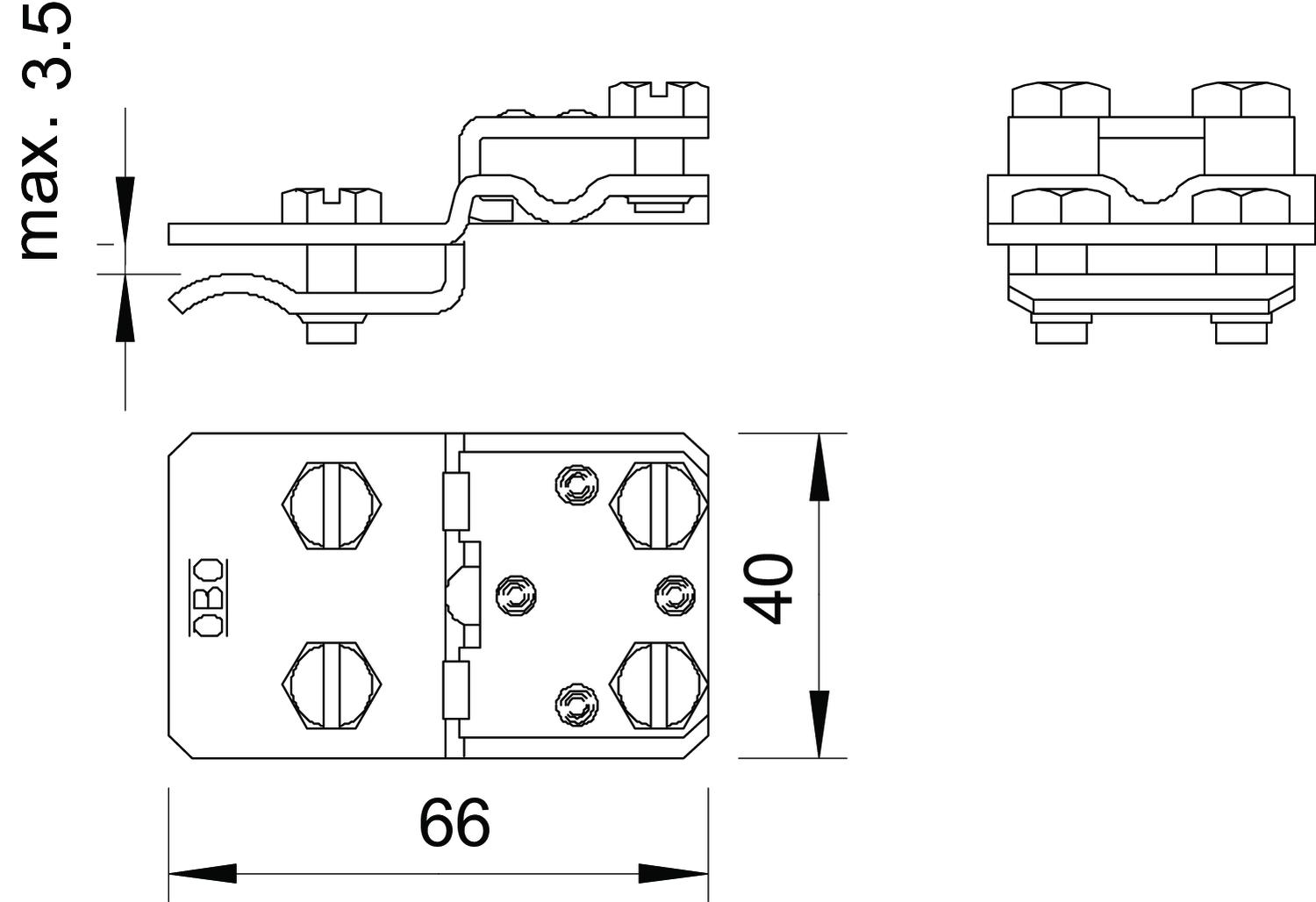

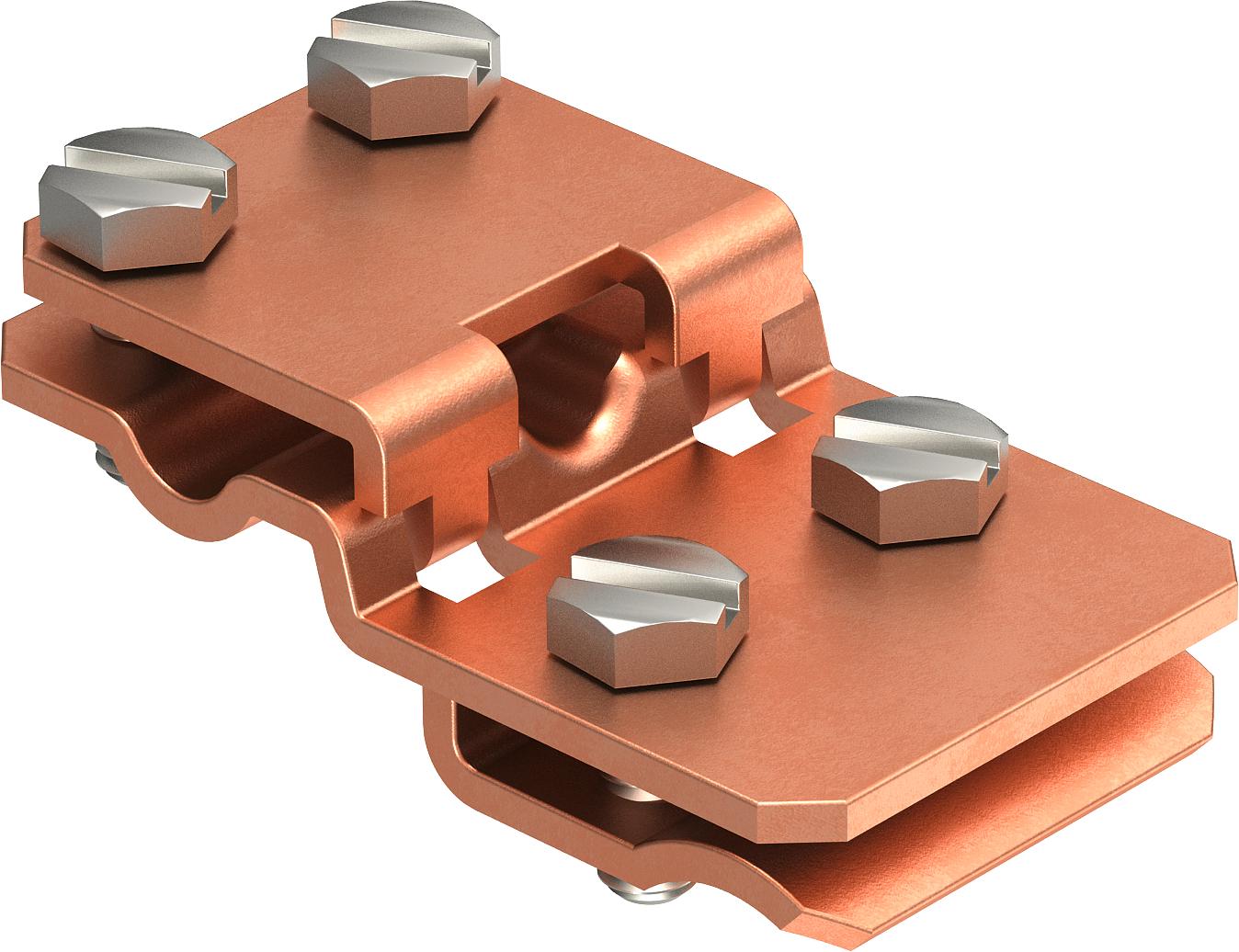

Folding clamp and connection terminal up to 5 mm Cu plate thickness

Item no. 5317479 | EAN 4012195420972

5317479 / 274 CU
Rd 8 mm
5 mm
Product description
Product description
• Plate thickness to 5 mm

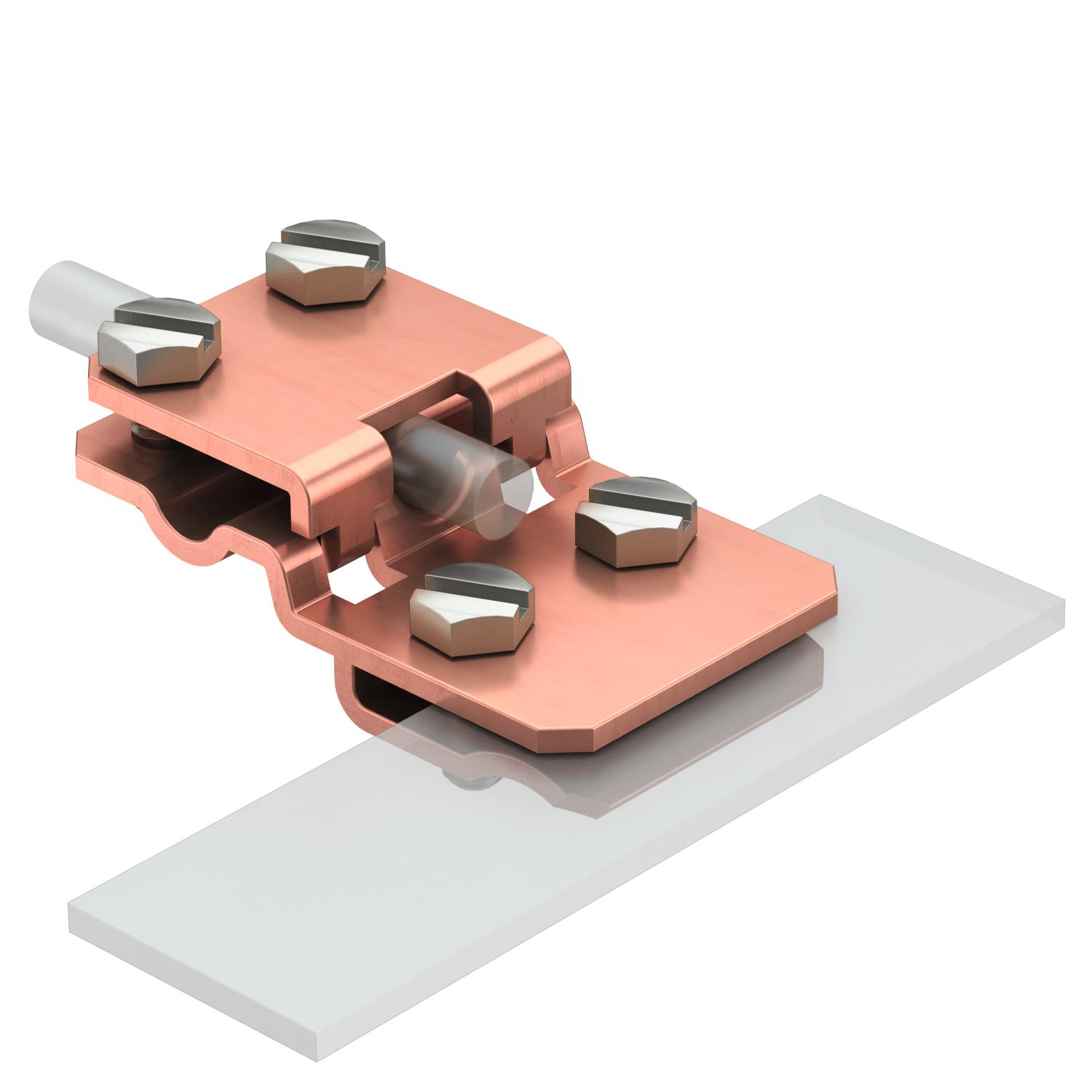

• For cable routing along and across the plate
• 4 hexagonal bolts M6 x 16
• Meets the requirements of VDE 0185-305 (IEC 62305)
  • Lightning current-tested
Technical data

Technical data

Clamping range, max. 5 mm
Dimension 8mm
Fit Rd 8 mm
Lightning current carrying capacity N/50 kA
Material Copper
Type of connector Folding clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Clamping range, max. Item no. Quantity SSU
274 CU Rd 8 mm 5 mm 5317479
10 piece
