Note: This article is discontinued.

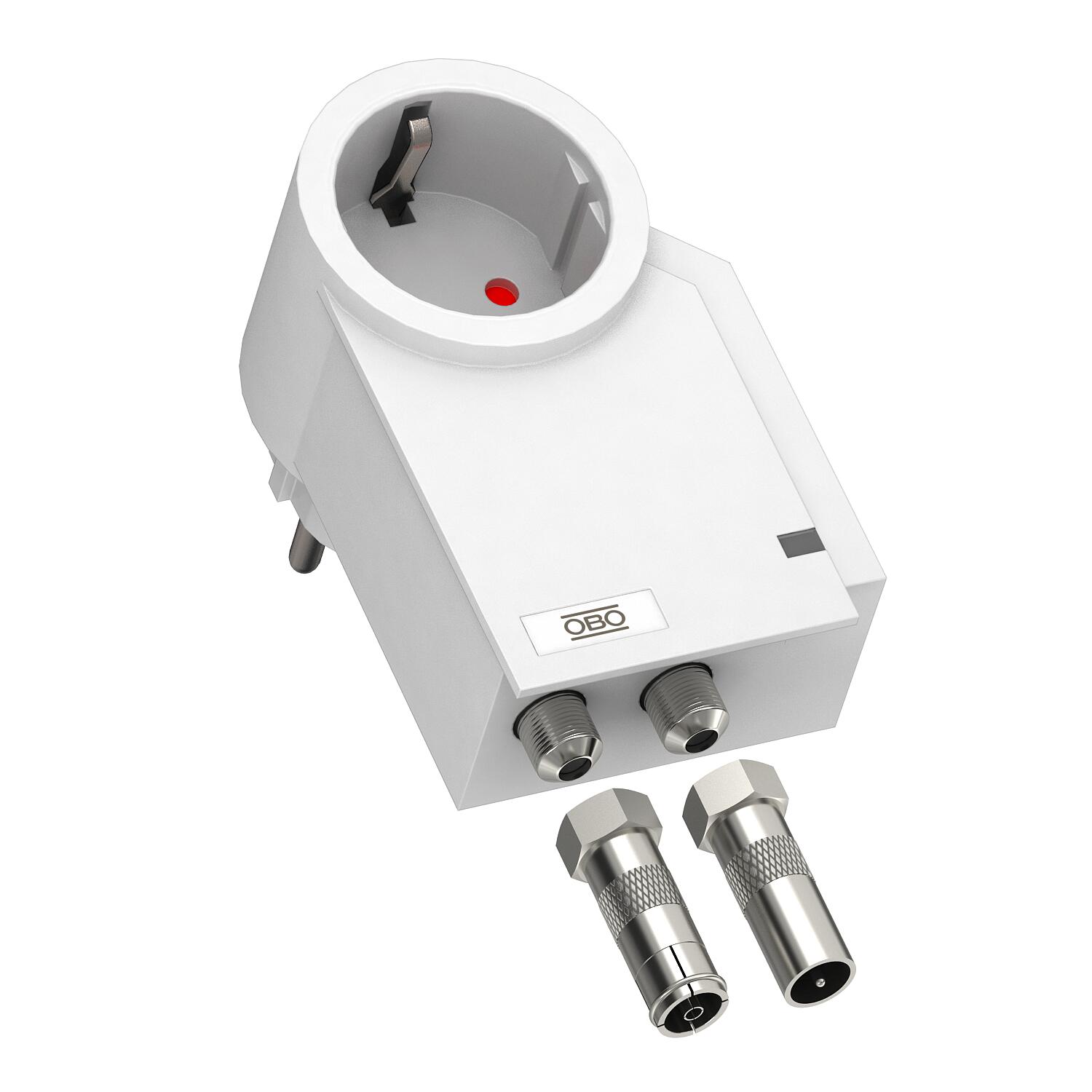

FineController FC-TV for video, TV and hi-fi systems
Item no. 5092808 | EAN 4012195035114
- Product description
-
Product description
Type 3 combined surge protection to EN 61643-11, designed for use on Schuko sockets and video, TV and hi-fi systems with IEC adapter.
• Adapter connector
• Cut-off unit and function display
• With increased contact protection
• Incl. 0.5 m connection cable in white (double-shielded)
• Maximum continuous voltage, TV connection 72 V DC / 1.5 A (25 °C)
• Limit frequency: type 2.5 GHz (75 Ohm system)
Note: The technical data in the table below refers to the power supply.
-
- Technical data
-
Technical data
Blow-out no Cable type for surge protection devices Power cable AV Colour Pure white; RAL 9010 Country-specific version D Cut-off frequency 2400 MHz Dimension 230V Frequency range, max. 2400 Lightning protection zone LPZ 2→3 Max. continuous operating voltage 275 V Maximum back-up fuse 16 A Nominal discharge surge current 3 kA Nominal voltage 230 V Protection level < 1,5 kV Protection level (L-N / L/N-PE) <1200 / <1500 V Protection level (L-N) < 1,2 kV Protection level (N-PE) < 1,5 kV Protection rating IP20 Rated current 16 A Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 3 SPD to IEC 61643-1 Class III Telecommunications contact no Test class, type 3 yes Version for Schuko + TV With interference suppression filter no - All types
