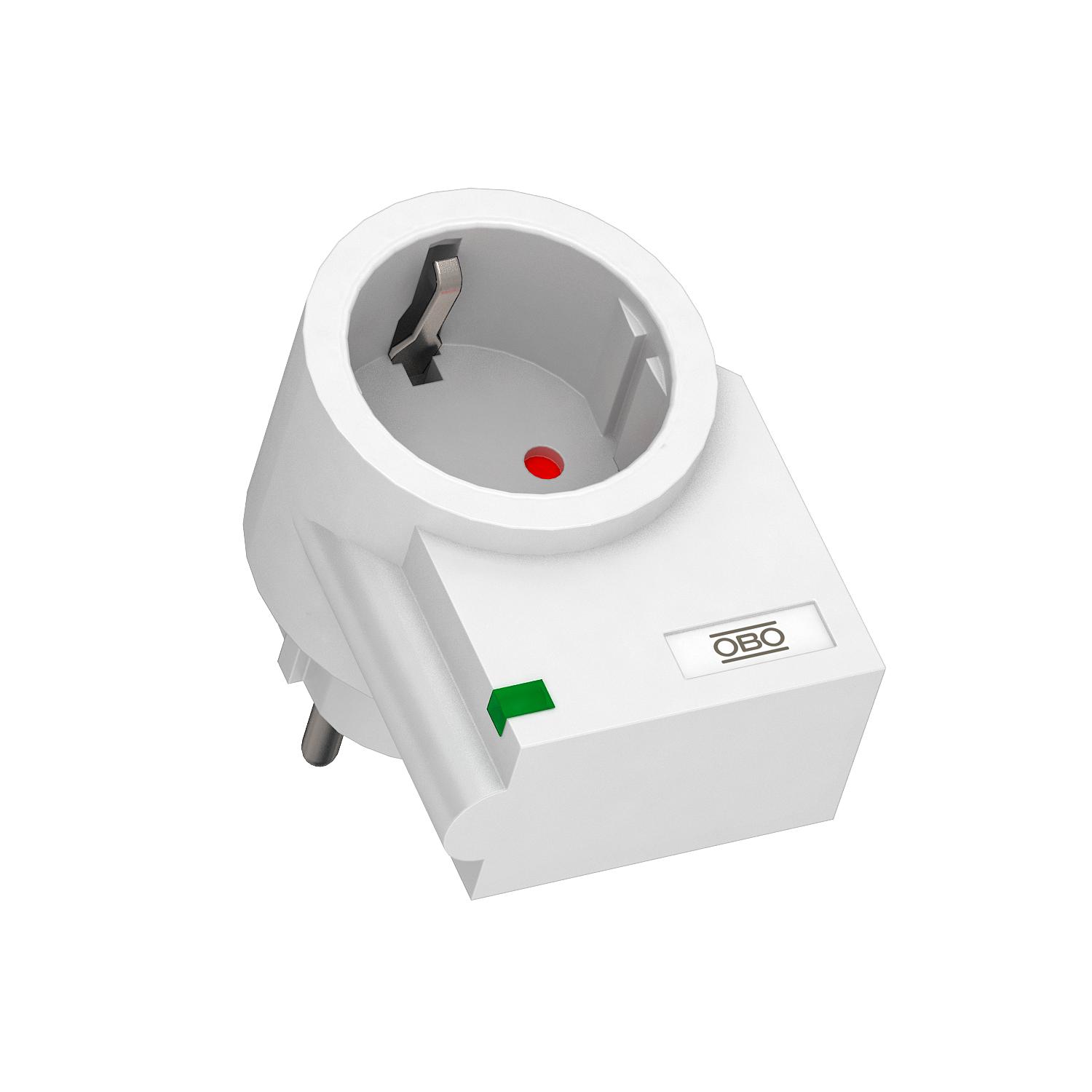

FineController FC-D for protective contact socket
Item no. 5092800 | EAN 4012195035053
- Product description
-
Product descriptionType 3 surge protective device to EN 61643-11,
intended for use in protective contact sockets.
• Adapter connector
• Cut-off unit and function display
• With increased touch protection
-
- Technical data
-
Technical data

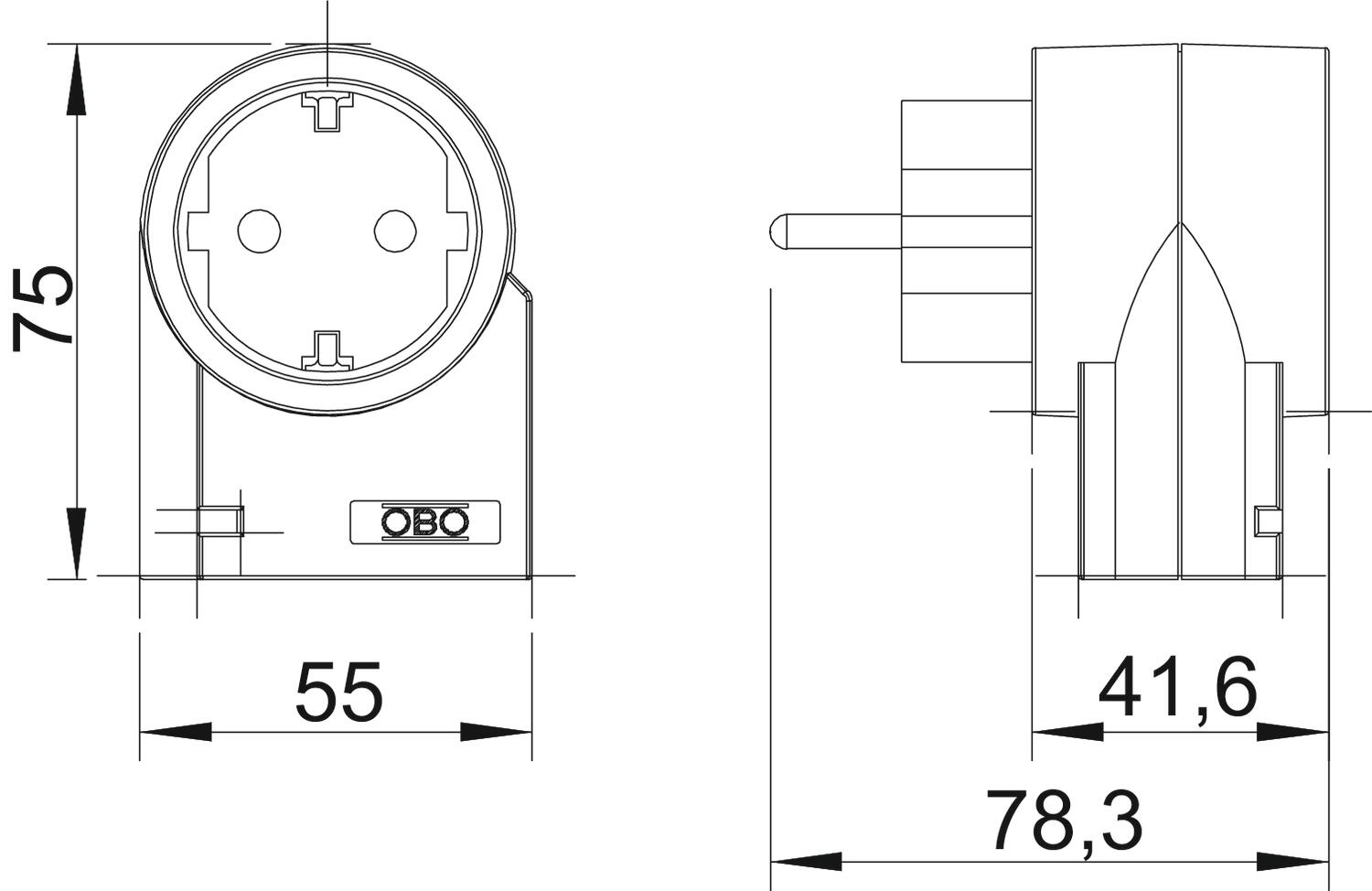

Blow-out no Cable type for surge protection devices Power cable AV Colour Pure white; RAL 9010 Country-specific version D Dimension 230V Height 75 mm Installation type Wall socket Integrated back-up fuse no Length 78,3 mm Lightning protection zone LPZ 2→3 Max. continuous operating voltage 275 V Max. mains-side overcurrent protection 16 A Maximum back-up fuse 16 A Maximum continuous voltage AC 275 V Maximum discharge current (8/20 μs) 8 kA Nominal discharge current (8/20 µs) 3 kA Nominal discharge surge current 3 kA Nominal voltage 230 V Nominal voltage AC (50/60 Hz) 230 V OBO_Nominal load current (input/output terminal) 16 A Operating temperature, max. 75 °C Operating temperature, min. -25 °C Permitted temperature range, max. 75 °C Permitted temperature range, min. -25 °C Protection level <1,5 kV Protection level [L-N] ≤1,5 Protection rating IP20 Rated current 16 A Remote signalling no Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 3 SPD to IEC 61643-1 Class III Telecommunications contact no Test class, type 2 no Test class, type 3 yes Version for Schuko Width 55 mm - All types
