Fine protection 8-F for Ethernet networks (Class D/CAT 5)

Item no. 5081990 | EAN 4012196415694

Item no. / Types	5081990 / RJ45 S-ATM 8-F

Number of poles	8

Version for	Fine protection, 8 wires + shield

Maximum continuous voltage DC	6 V

Plug-in system	RJ45 8(8)

Product description

Product description

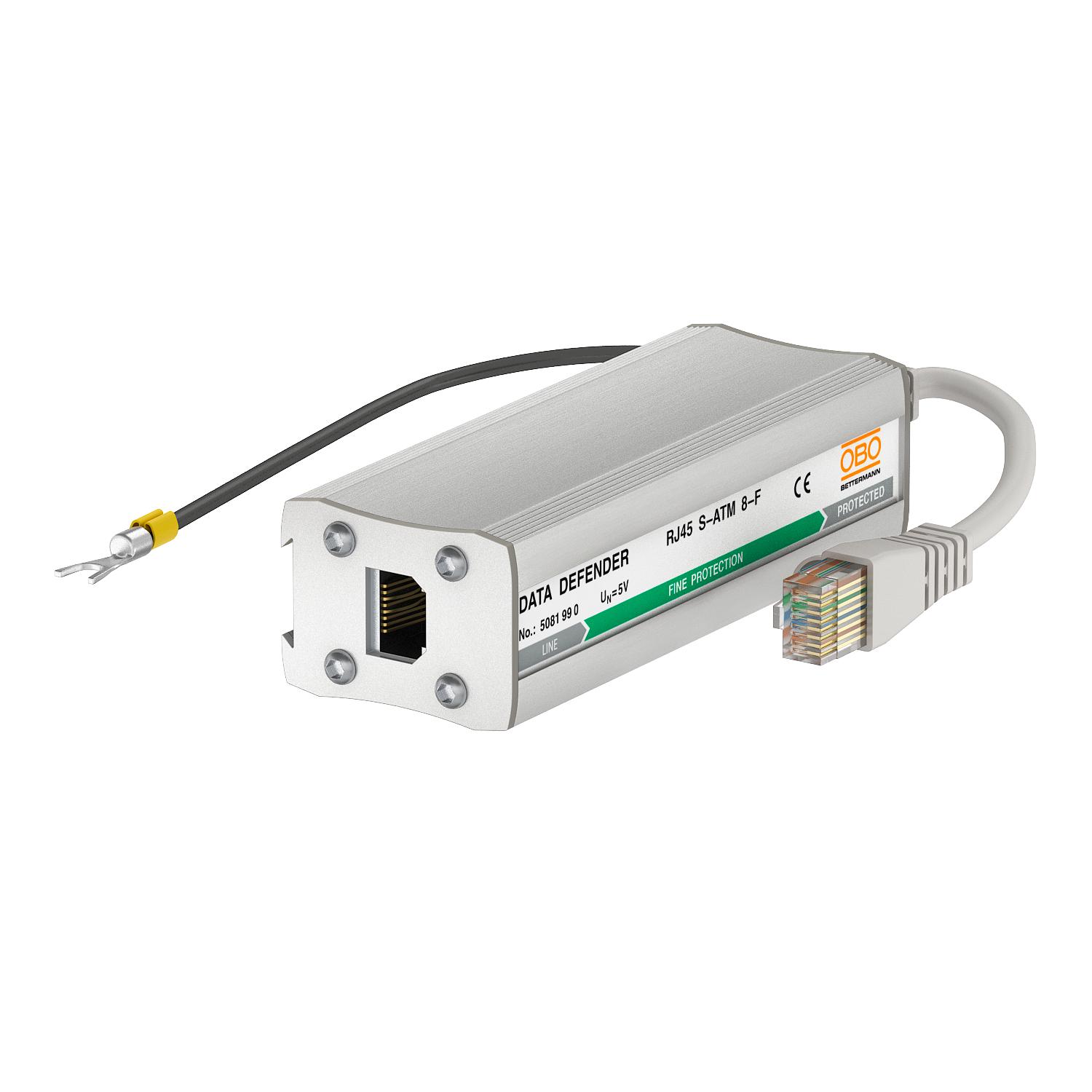

Universal data cable protection device for network technology and telecommunication systems

• In aluminium housing

• Protection for 8 cores

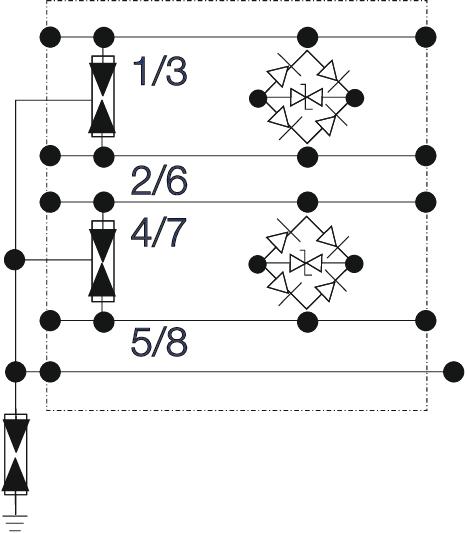

• With two-stage protective circuit

• Simple mounting

• With RJ45 Western connector

• Incl. 150 mm connection cable with RJ45 connectors

• Cat 5e network technology, 10BaseT, 100BaseT, 1000BaseT

• DIN rail mounting with accessories DLS-BS (5082 38 2)

Application: For analogue, ISDN, DSL systems, Ethernet Twisted Pair.
• Usable in networks of Class D or CAT 5e

• Can be locked onto DIN profile rails or mounted directly at the terminal

• Simple installation using RJ45 connection technology

• Optimised transmission properties

Technical data

Technical data

Arrestor monitoring	no
Capacity (wire-earth)	<10 pF
Capacity (wire-wire)	<50 pF
Channel performance Ansi/EA	CAT 5e
Channel performance ISO/IEC	Class D
Cut-off frequency	155 MHz

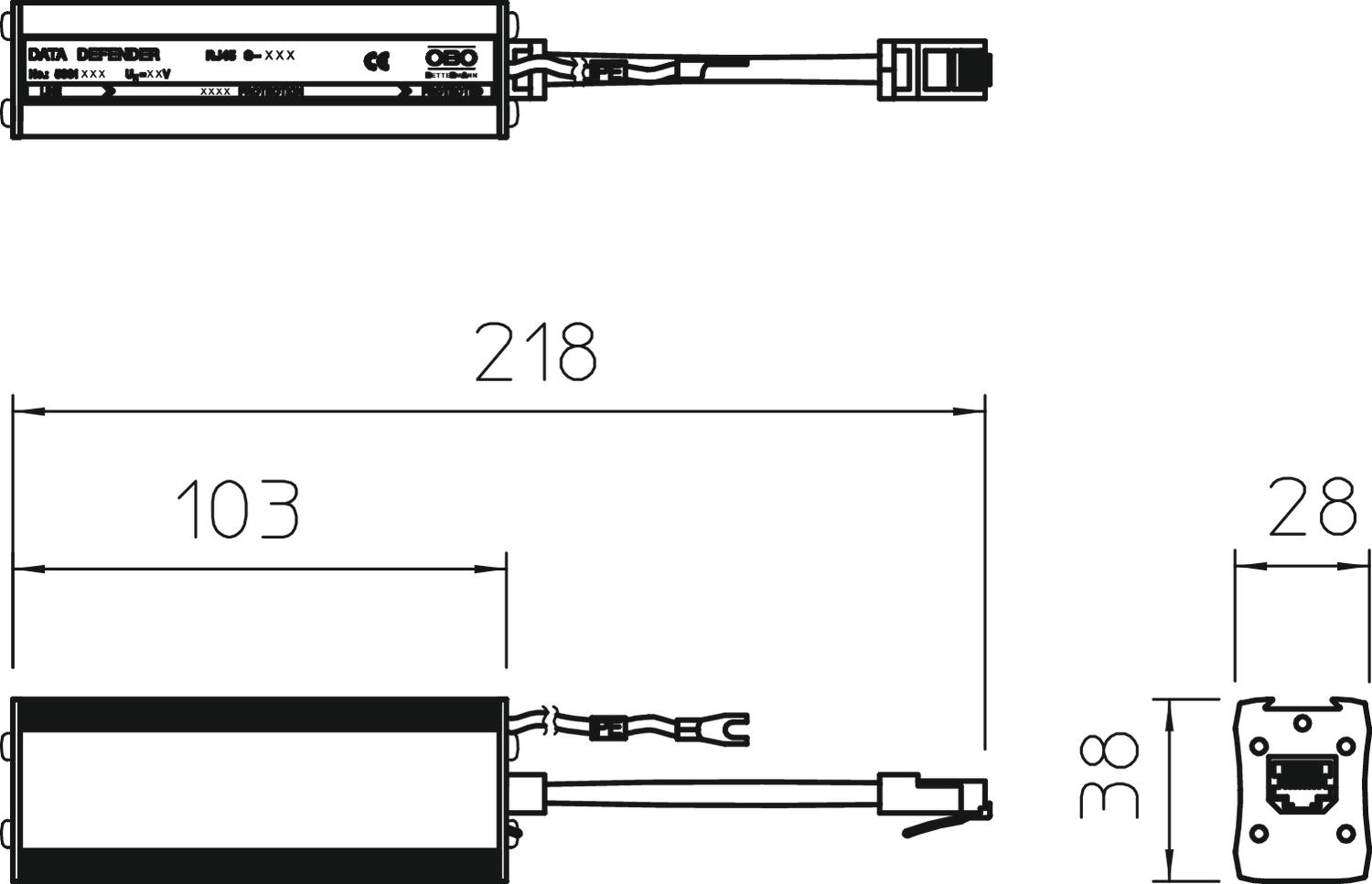

Dimension	6.2V
Earthing via:	Connection cable
Impulse durability wire-earth	C2: 3 kV / 1,5 kA (8/20µs)
Impulse durability wire-wire	C2: 3 kV / 1,5 kA (8/20µs)
Insertion loss	<3 @ 150 MHz dB
Insulation resistance	>1 GΩ
Kategorie	Type 2+3 / C2+C1
Lightning protection zone LPZ	1→3
Maximum continuous voltage AC	4,2 V

Maximum continuous voltage DC	6 V
Number of poles	8
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Plug-in system	RJ45 8(8)
Protection level wire-earth	<900 V
Protection level wire-wire	<40 V
Protection rating	IP40
Screening	Direct
Shielding connection available	yes
SPD to IEC 61643-21	Class II+III / C2+C1
Testing standard	IEC 61643-21
Total discharge current (8/20)	7,5 kA
Version for	Fine protection, 8 wires + shield
