- Product description
-

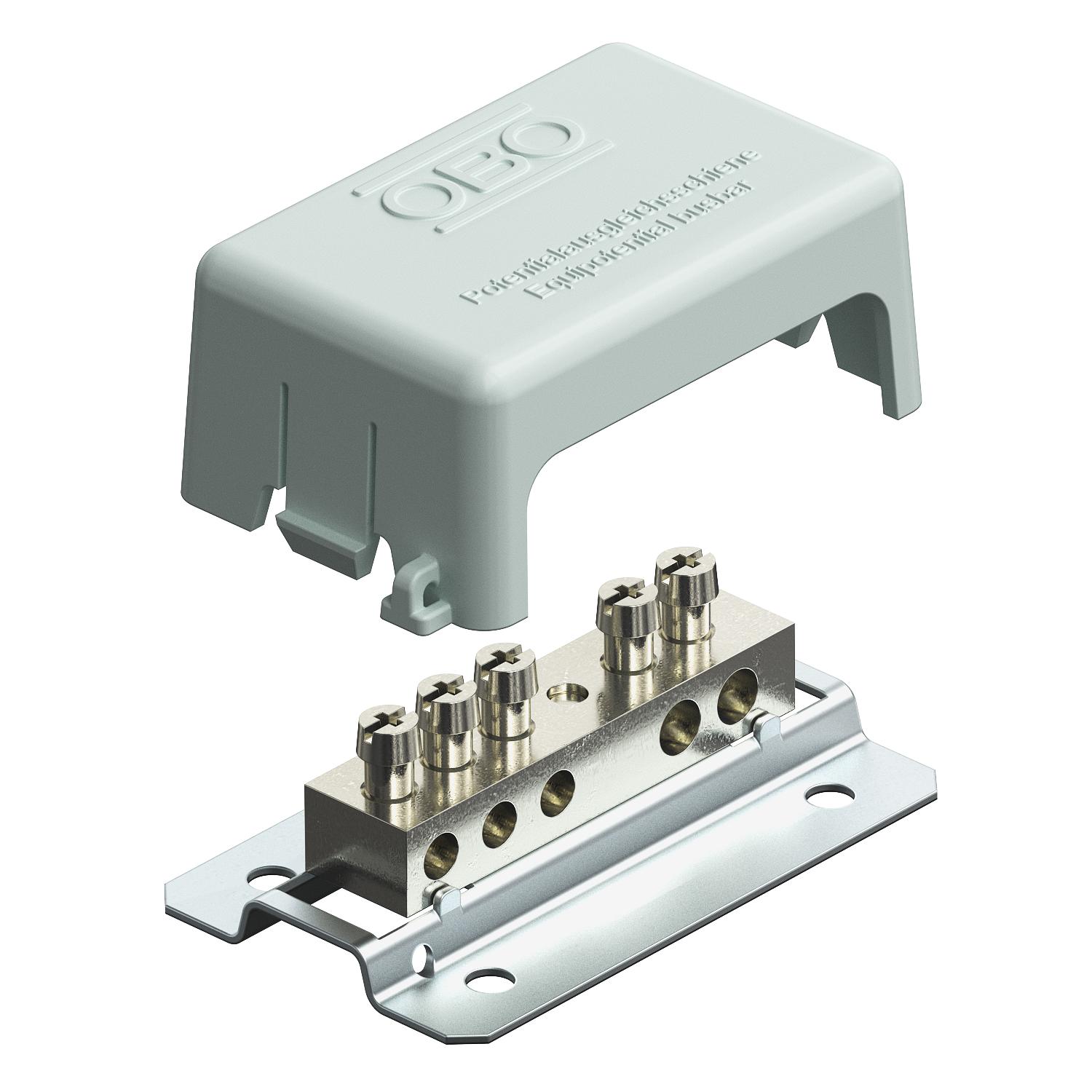

Product description
• Cover made of polystyrene, grey
• Sealable/labellable
• Base plate made of strip galvanised steel
• Contact strip and screws made of nickel-plated brass
Connection options:
• 3 x multi-core cables to 6 mm²
• 2 x multi-core cables to 16 mm²
- Technical data
-
Technical data
Colour Grey Dimension 72x45mm Insulator no Material Brass Material of the contact rail Brass Material of the terminal Brass Quantity of cable connections up to 16 mm², rigid 2 Quantity of cable connections up to 6 mm², rigid 3 Surface of the contact rail Nickel-plated Surface of the terminal Nickel-plated Type Fixed structure Version for With cover hood Dimensions

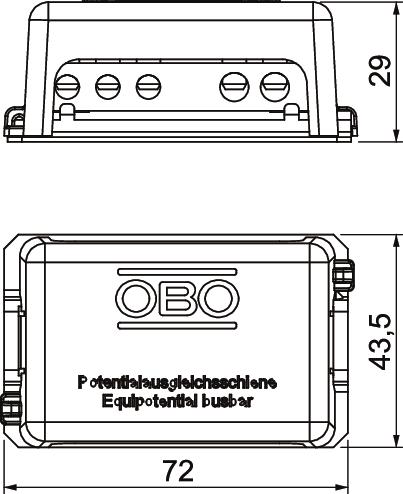

Height 29 mm Length 72 mm Width 43,5 mm - All types
- Downloads
-
Data sheet 1809 BG / 5015502 , 0.27MB , pdfDeclaration of conformity 1809 BG / 5015502 , 0.13MB , pdfREACH Declaration of conformity 1809 BG / 5015502 , 0.12MB , pdfRoHS Declaration of conformity 1809 BG / 5015502 , 0.12MB , pdf
