Equipotential busbar for flexible wall mounting with separation point 605 | 40 | 85 | 10 |
morepic-1 morepic-2 video-1

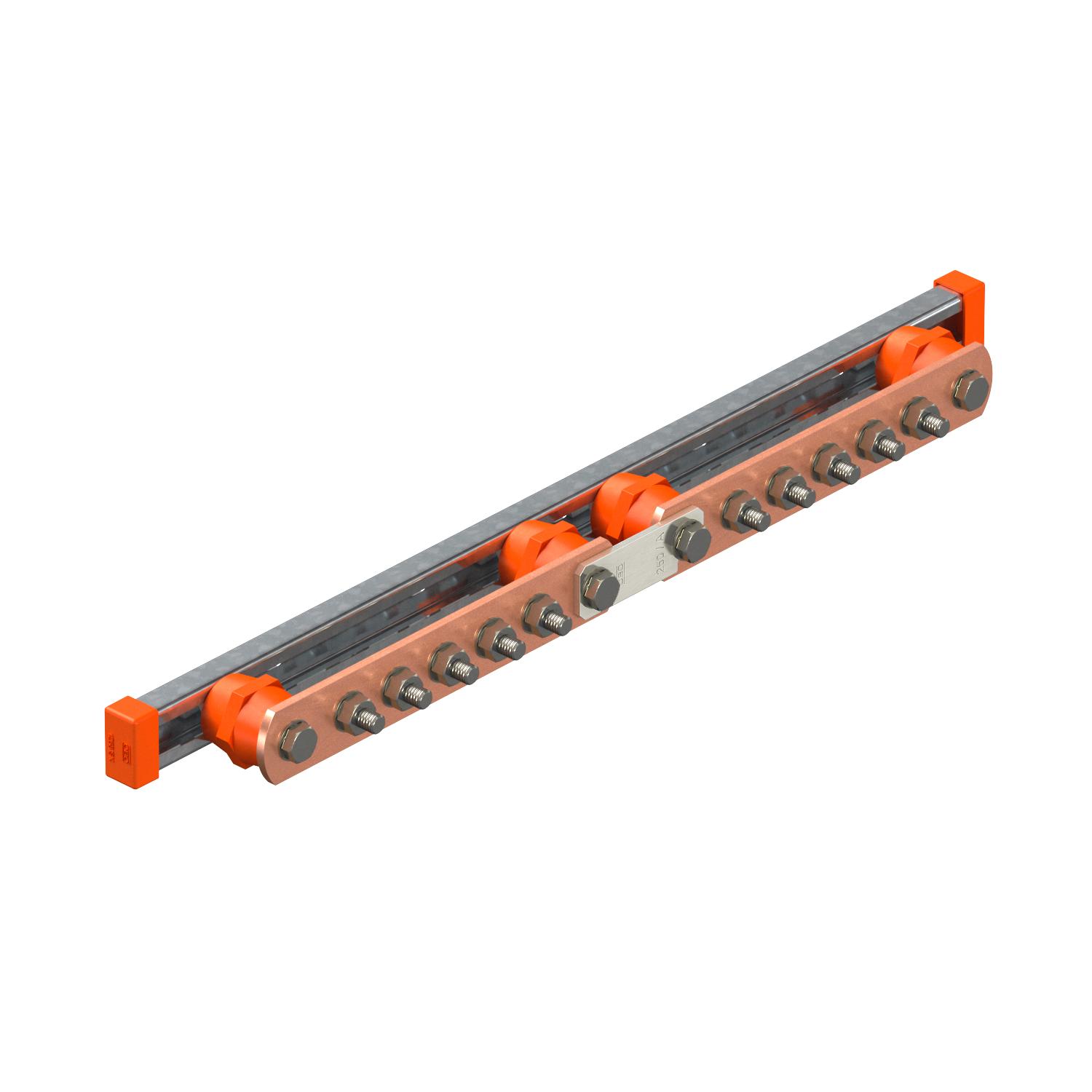

Equipotential busbar for flexible wall mounting with separation point

Item no. 5015874 | EAN 4012196681945

40 mm
Product description
Product description
Main equipotential busbar for equipotential bonding to VDE 0100 Part 410/-540 and
lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)

• With separation point (Disconnect – DC)
• For flexible wall mounting
• Complete with profile rail (FT) and screws
• Quick, simple mounting of the connection cable using
lock bolts M10
• With lock washer (DIN 137) for bolt locking against loosening



  • Lightning current-tested
Technical data

Technical data

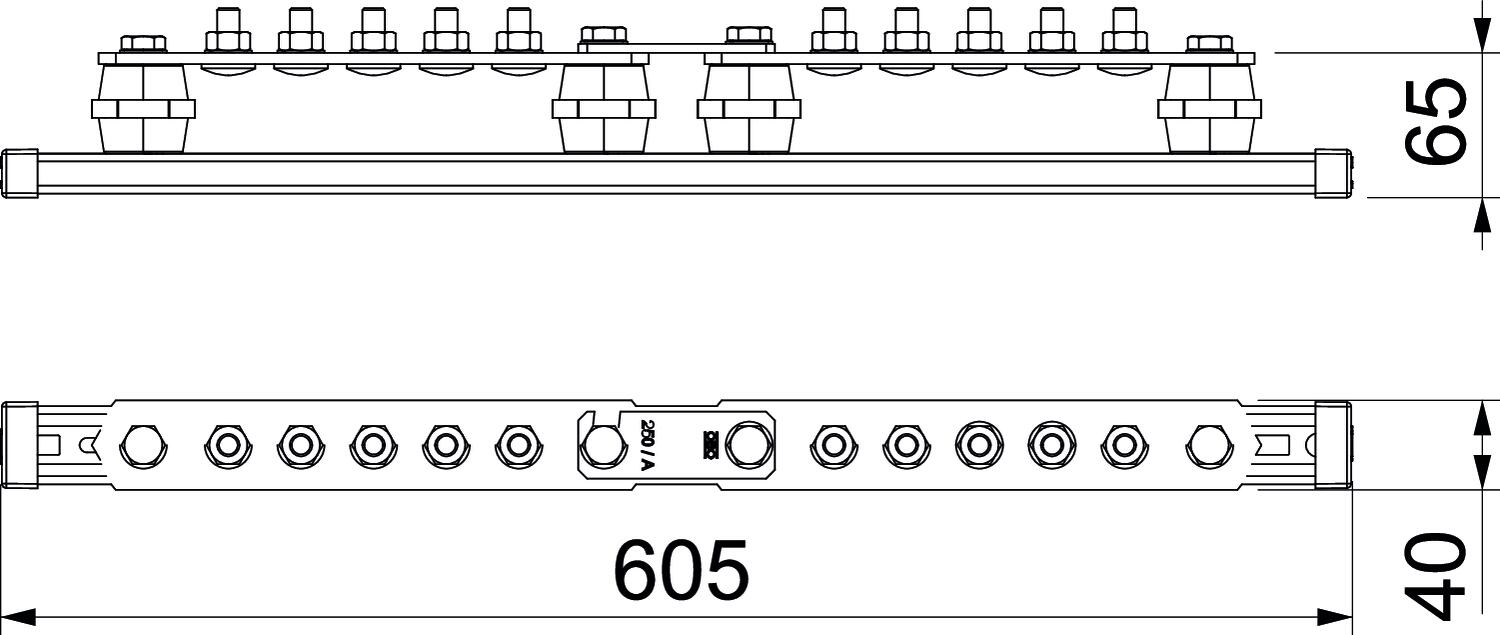

Dimension 5+5 x M10
Height 85 mm
Insulator yes
Length 605 mm
Lightning current carrying capacity H/100 kA
Material Copper
Material of the contact rail Copper
Material of the terminal Copper
Number of connections 10
Type Fixed structure
Version for Only terminal
Width 40 mm
All types

All types

Types Length Width Height Number of connections Item no. Quantity SSU
1802 5 CU 246 mm 40 mm 5 mm 5 5015830
1 piece
1802 6 CU 278.5 mm 40 mm 5 mm 6 5015832
1 piece
1802 8 CU 343.5 mm 40 mm 5 mm 8 5015836
1 piece
1802 10 CU 408.5 mm 40 mm 5 mm 10 5015842
1 piece
1802 12 CU 473.5 mm 40 mm 5 mm 12 5015844
1 piece
1802 14 CU 538.5 mm 40 mm 5 mm 14 5015847
1 piece
1802 20 CU 733.5 mm 40 mm 5 mm 20 5015849
1 piece
1802 DC 5+1 CU 505 mm 40 mm 85 mm 6 5015870
1 piece
1802 DC 5+5 CU 605 mm 40 mm 85 mm 10 5015874
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Crossbar for equipotential busbar Crossbar for equipotential busbar 1802 KL 5015890
1 piece
