End piece
Item no. 5408393 | EAN 4012195674412
- Product description
-

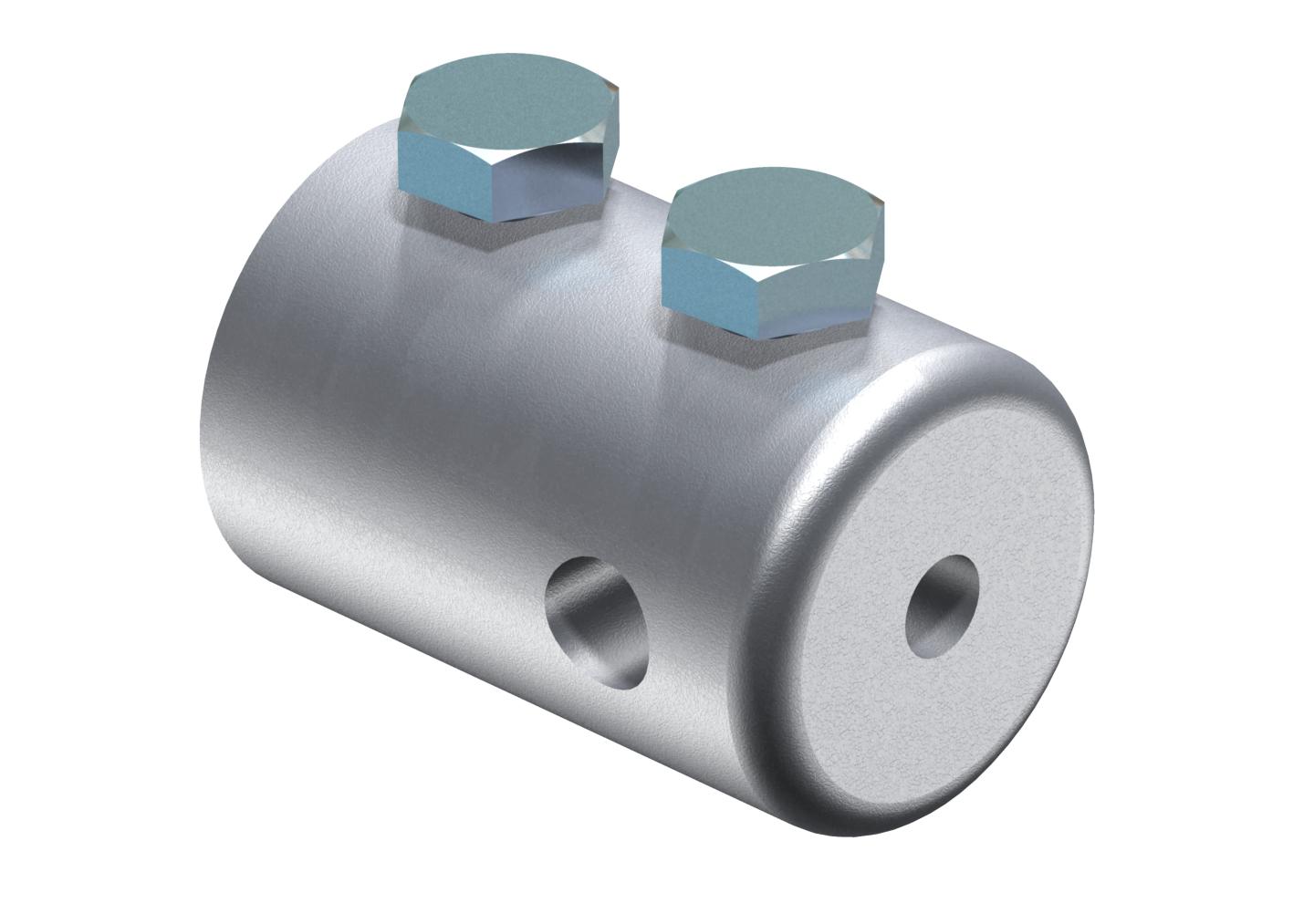

Product description• End piece for attaching round conductors Rd 8-10 and air-termination tips, type 101 ISP
• With M10 internal thread, e.g. for mounting a Vario quick connector for fixed conductor routing at intersections
• With M10 bolts
- Technical data
-
Technical data

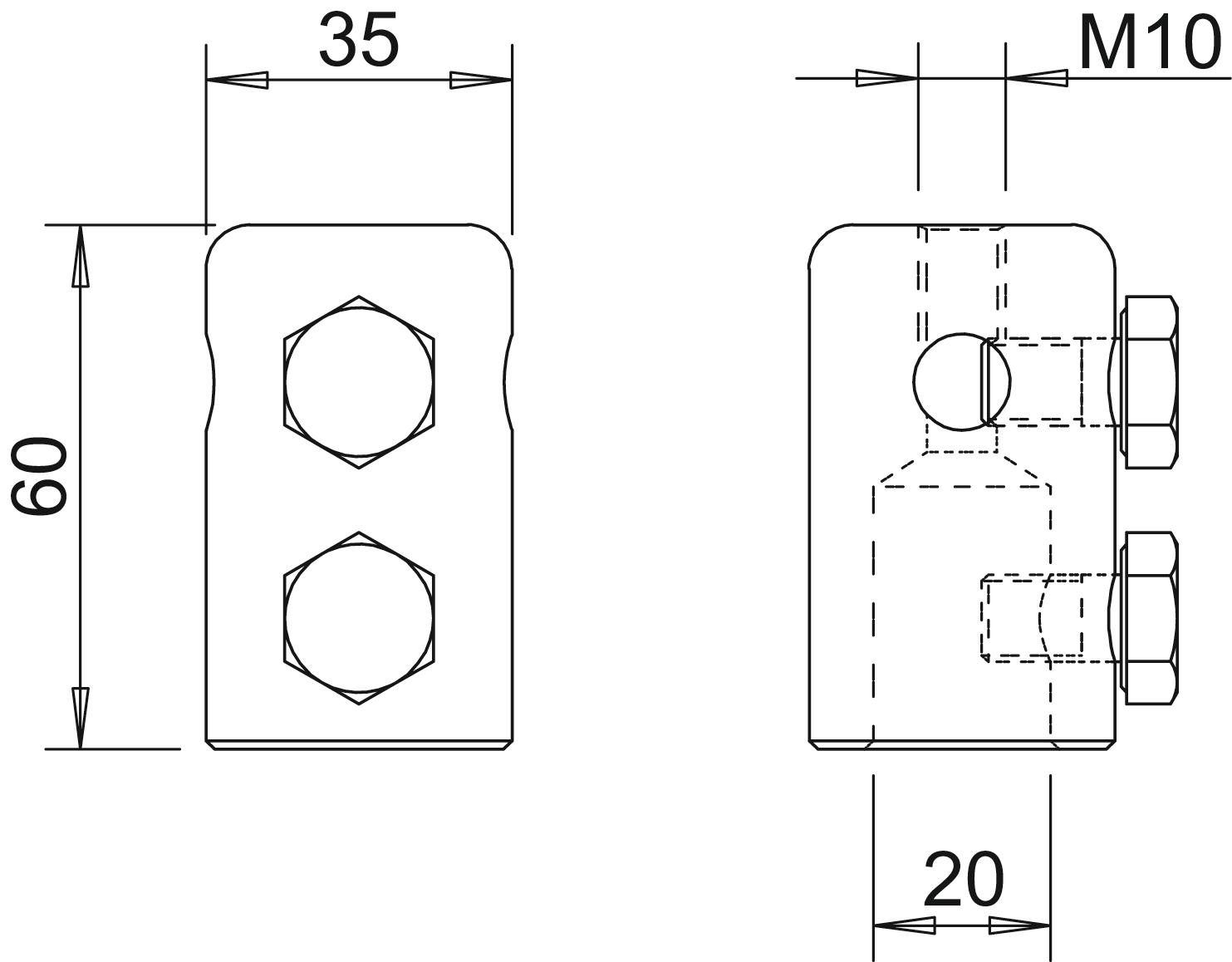

Connection Round conductor Dimension 20mm Dimension d min. 35 mm Dimension d Ø 20 mm Dimension L 60 mm Length 60 mm Material Aluminium - All types
- Downloads
-
Data sheet 101 IES / 5408393 , 0.13MB , pdf
