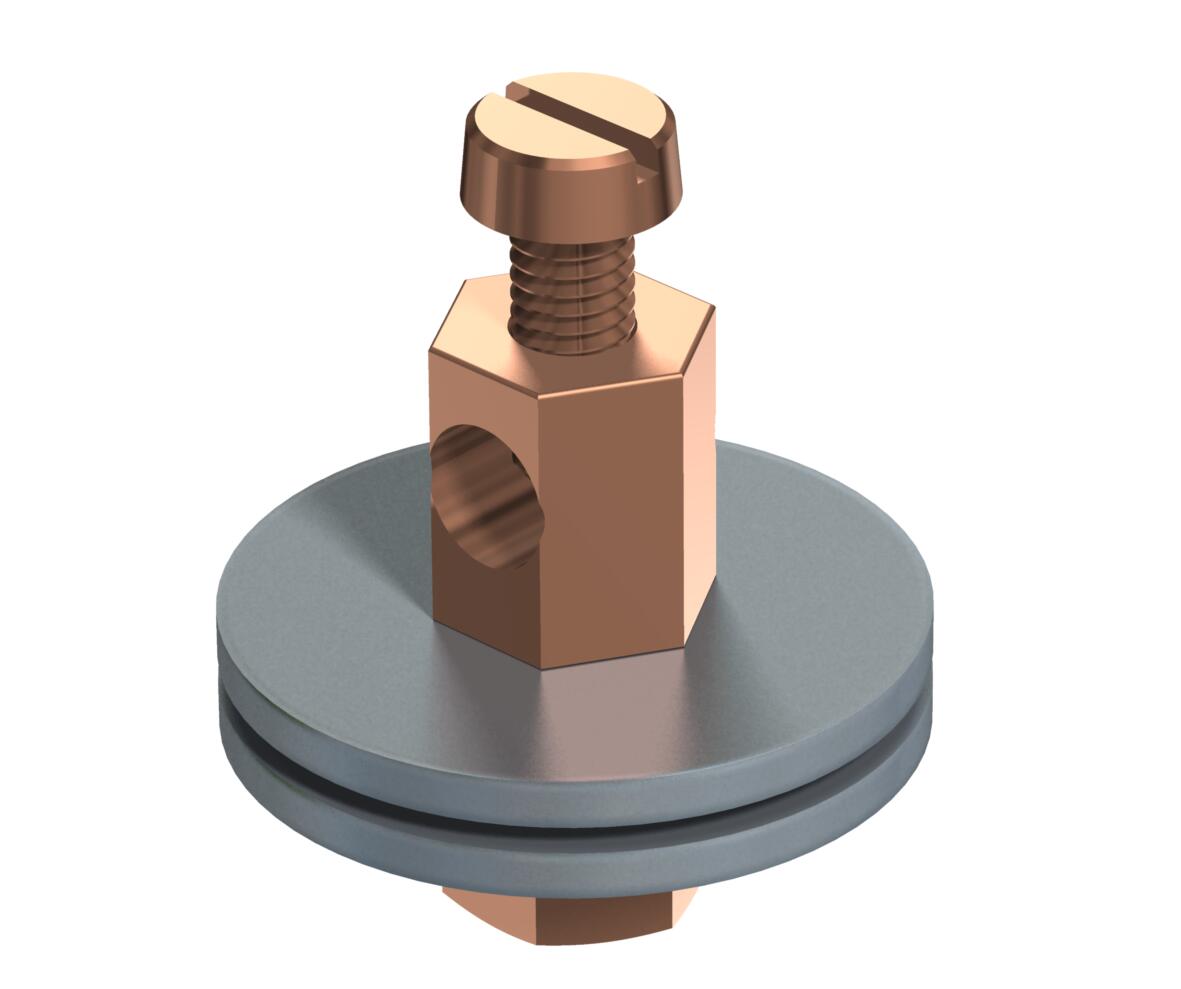

Earthing terminal for fastening on earthing strap
Item no. 5040507 | EAN 4012195385936
- Product description
-
Product description
• For use in bathtubs or shower tubs etc.
• Connection option: conductors to 16 mm²
• Clamping element with threaded connection M6, 1 hexagonal nut M6,
1 serrated dimension washer and 1 cylinder bolt M5 x 8
• Clamping element, nut and screws from copper-plated brass
• Serrated washer from stainless steel; 2 washers from galvanised steel
-
- Technical data
-
Technical data

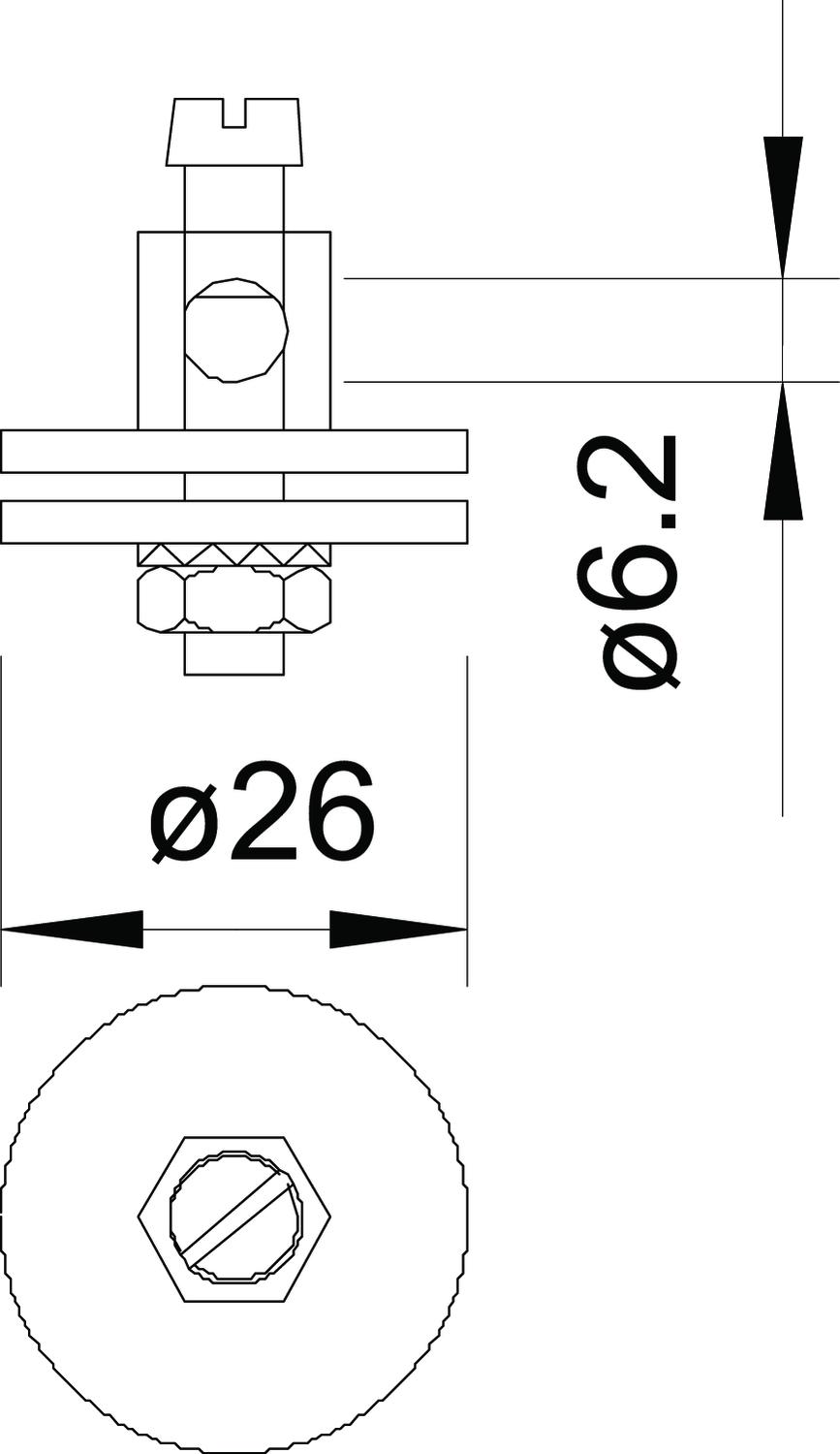

Dimension 1/2" Material Brass Suitable for Round conductor Surface Nickel-plated - All types
- Downloads
-
Data sheet 928 / 5040507 , 0.18MB , pdfDeclaration of conformity Declaration of conformity ,REACH Declaration of conformity 928 / 5040507 , 0.13MB , pdfRoHS Declaration of conformity 928 / 5040507 , 0.13MB , pdf
