Note: This article is discontinued.

Earthing rail for UF separation point 290 | Copper |

morepic-1

morepic-2

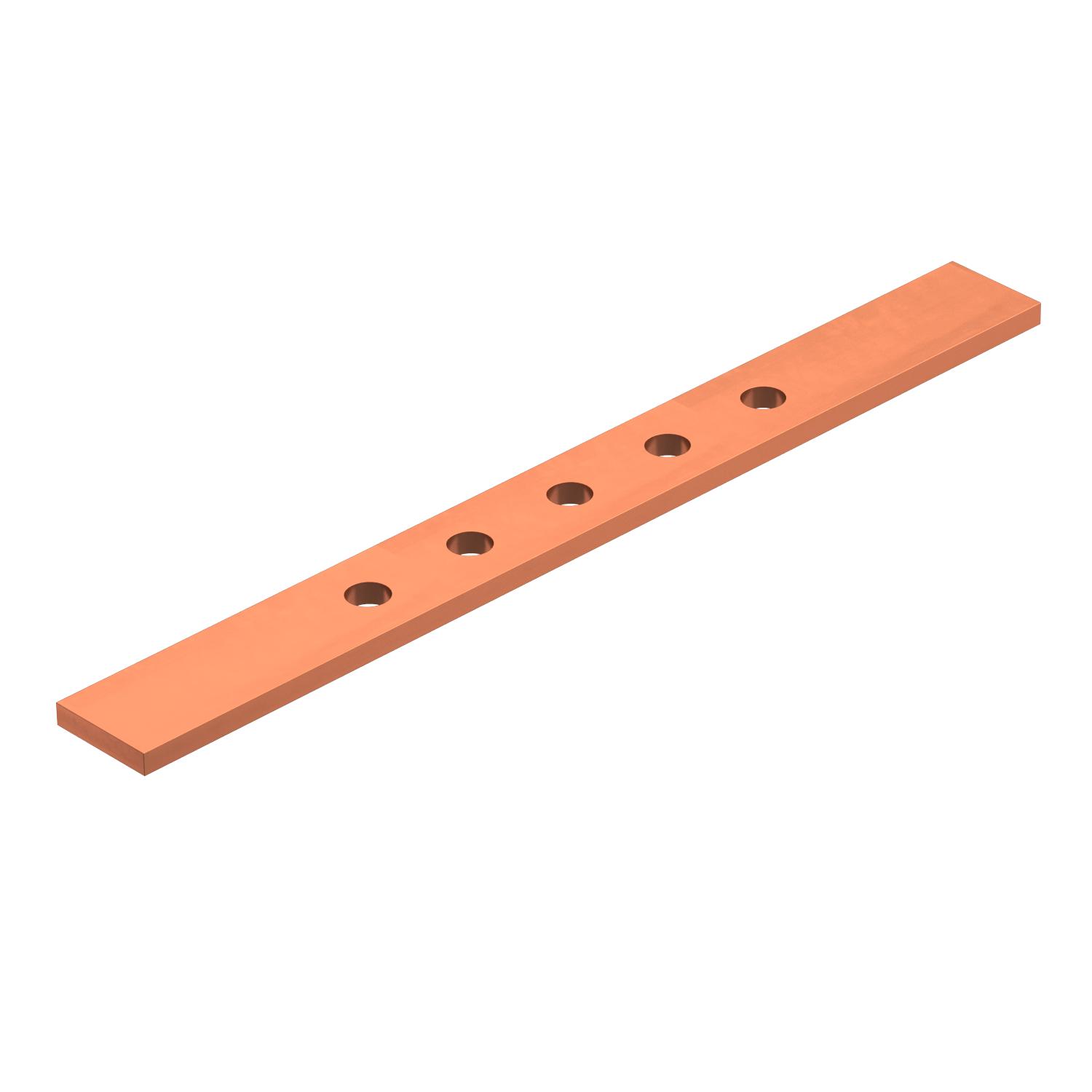

Earthing rail for UF separation point

Item no. 5106071 | EAN 4012196431281

Item no. / Types

Length

Material	Copper

Product description

Product description

• For UF test box 5700 CIP/PIP
• With 5 connection holes
• Diameter of drill hole 11 mm

Technical data

Technical data

Dimension	290x30x3
Fit	M10 mm
Height	6 mm

Length	290 mm
Material	Copper
Width	30 mm

All types

All types

Types	Length	Material	Item no.	Quantity	SSU
5700 PIP EB	240 mm	Copper	5106050	piece	1 piece
5700 CIP EB	290 mm	Copper	5106071	piece	1 piece

Downloads

Data sheet 5700 CIP EB / 5106071 , 0.14MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Mounting instructions Mounting instructions, 5700; 5700 SP , 2.00MB , pdf

Download

Product graphic 5700 CIP EB / 5106071, 36.55 kB, jpg

Scale drawing 5700 CIP EB / 5106071, 55.17 kB, jpg

5700 CIP EB / 5106071
