- Product description
-
Product description• For pipes 1/4"-1½" or Ø 11.5-48.3 mm
• Connection options: conductors to 16 mm² with connecting terminal, riveted with brass
and 1 cylinder bolt M5 x 12
• To 1½" with 2 cylinder bolts M6 x 16 (G)
- Technical data
-
Technical data

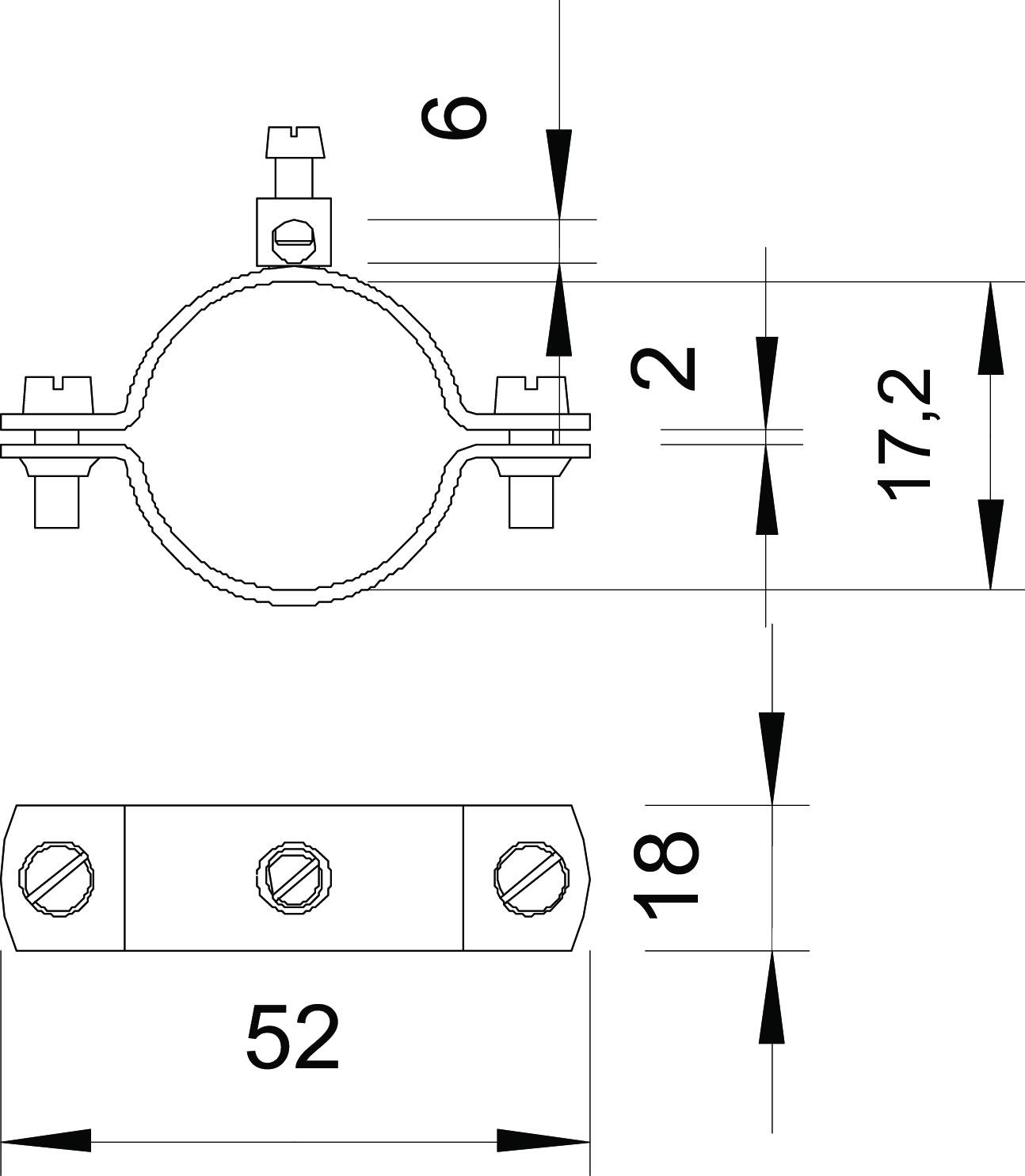

Clamping range D 3/8 Clamping range D, max. 17,2 mm Clamping range D, min. 15,2 mm Cross-section of cable to be connected, max. 16 mm² Dimension 3/8" Dimension A 52 mm Dimension b 18 mm Dimension D 17,2 mm Dimension X 2 mm For pipe diameter, max. 17,2 mm For pipe diameter, min. 15,2 mm Material Steel Number of conductors 1 Surface Electrogalvanized - All types
-
All types
- Downloads
-
Data sheet 925 3/8 / 5040051 , 0.18MB , pdfEU declaration of conformity 925 3/8 / 5040051 , 0.06MB , pdfREACH Declaration of conformity 925 3/8 / 5040051 , 0.12MB , pdfRoHS Declaration of conformity 925 3/8 / 5040051 , 0.12MB , pdf
