Downpipe clip FS
Item no. 5350115 | EAN 4012195425779
- Product description
-
Product description• To connect conductors and downpipes
• Similar to DIN 48818 C
• Strip galvanised (rd. 275 g/m² = 40 µm average value)
• With 1x hexagonal bolt M8 x 20
• With 1x hexagonal nut M8 and 1 stainless steel serrated washer
• With connection hole Ø 11 mm
- Technical data
-
Technical data

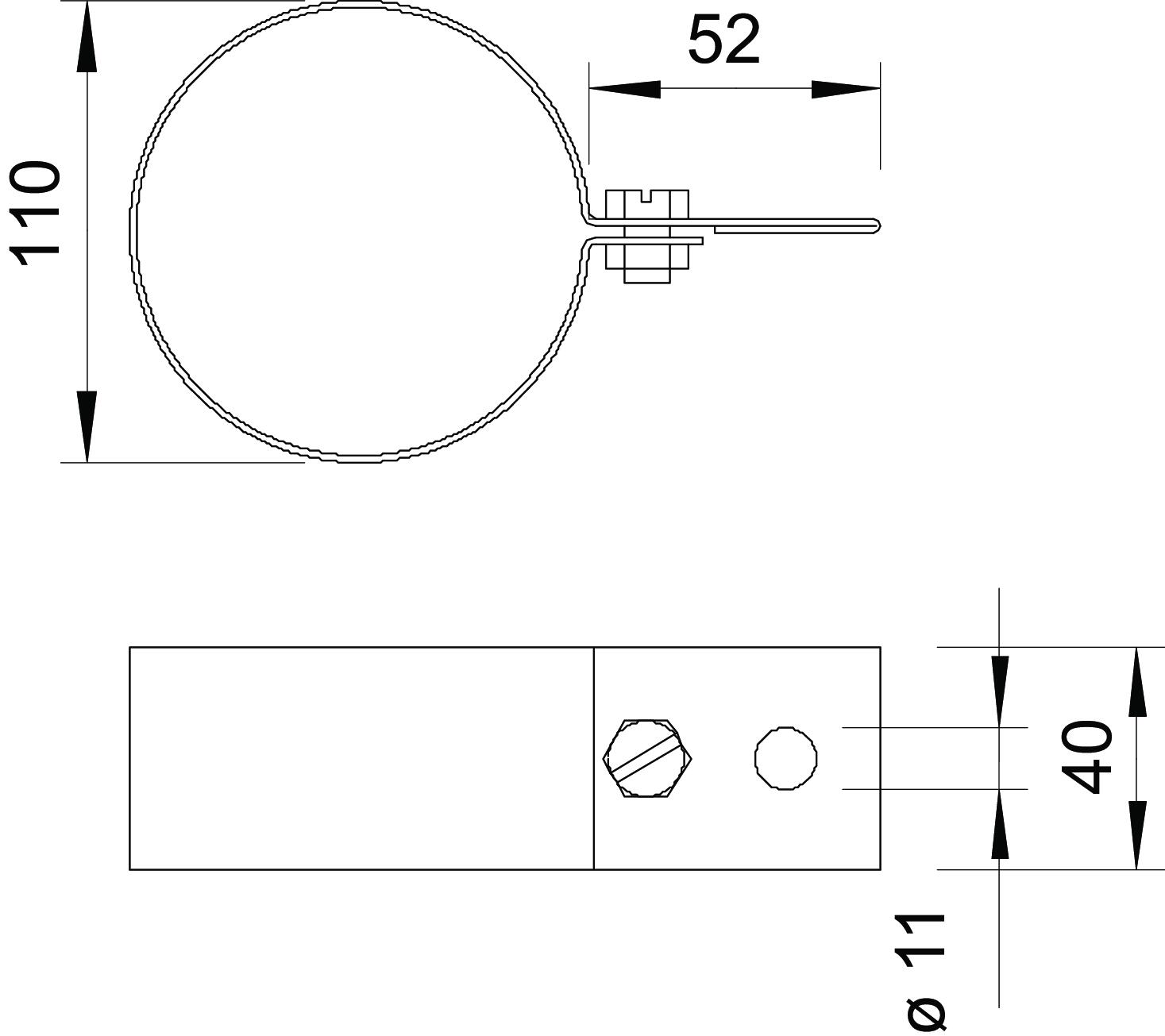

Bimetal connector no Clamping range, min. 110 mm Connection hole 11 mm Dimension 110mm Dimension d min. 110 mm explosion-proof no Integrated round conductor guide no Material Steel Surface Strip galvanized - All types
- Downloads
-
Data sheet 301 DIN-110 / 5350115 , 0.15MB , pdfEU declaration of conformity 301 DIN-110 / 5350115 , 0.06MB , pdfREACH Declaration of conformity 301 DIN-110 / 5350115 , 0.12MB , pdfRoHS Declaration of conformity 301 DIN-110 / 5350115 , 0.12MB , pdf
