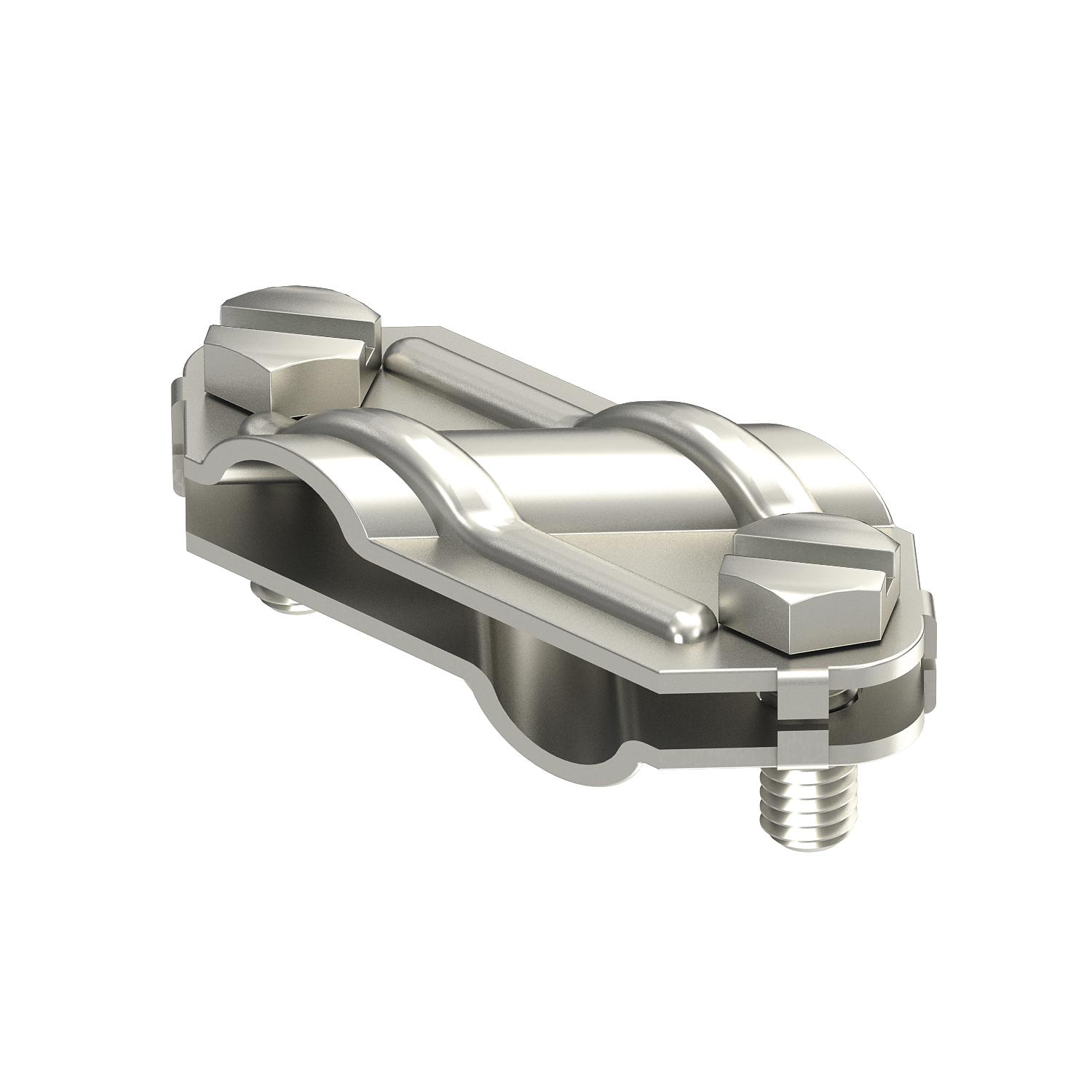

Cross-connector for flat conductors and round conductors stainless steel

Item no. 5312925 | EAN 4012195700876

Rd 8-10/FL30 mm
Product description

Product description

• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)

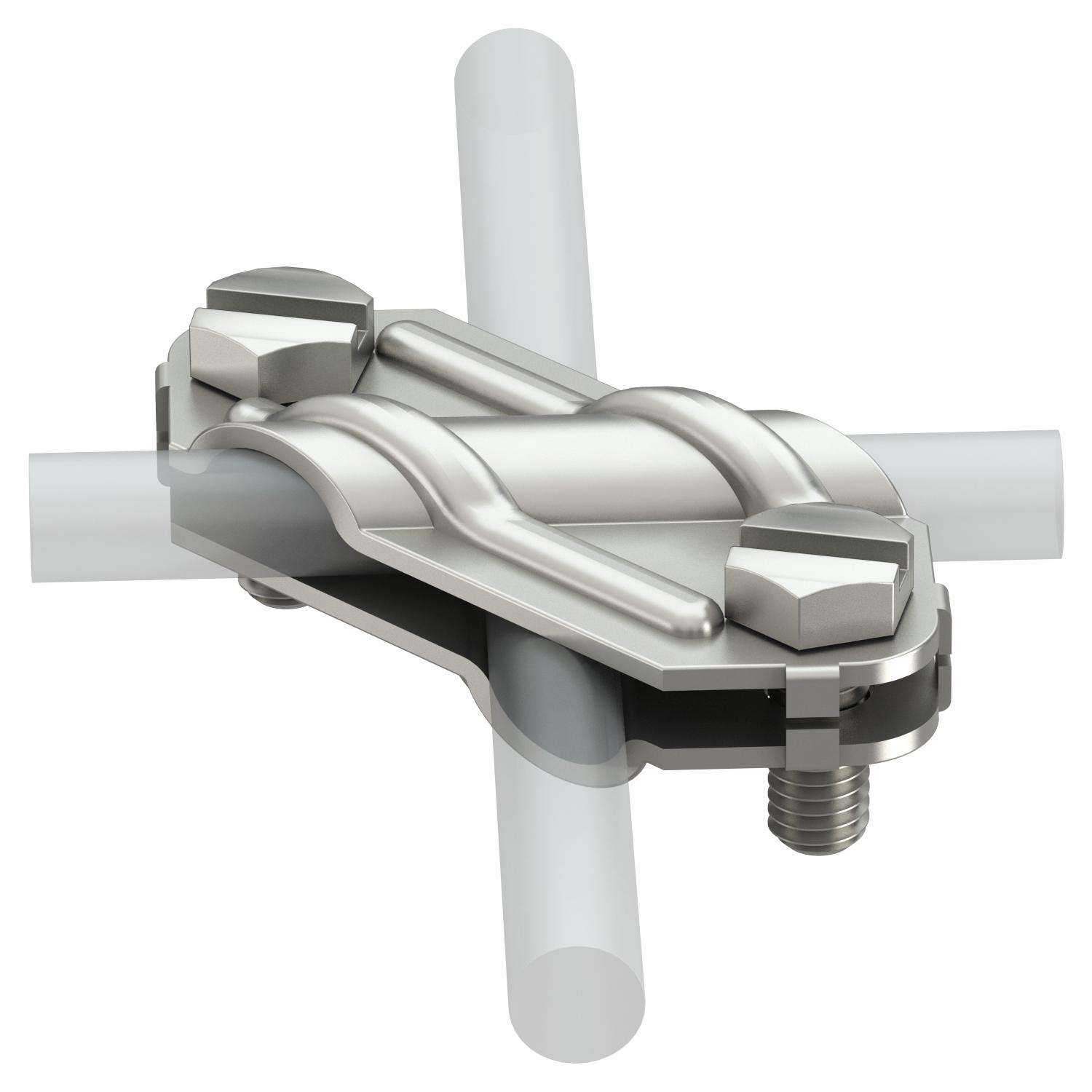

• Fit: Rd 8-10 x Rd 8-10

• Fit: Rd 8-10 x FL 30

• Fit: FL 30 x FL 30

• Mounted with 2 hexagonal bolts M8 x 20
  • Lightning current-tested
Technical data

Technical data

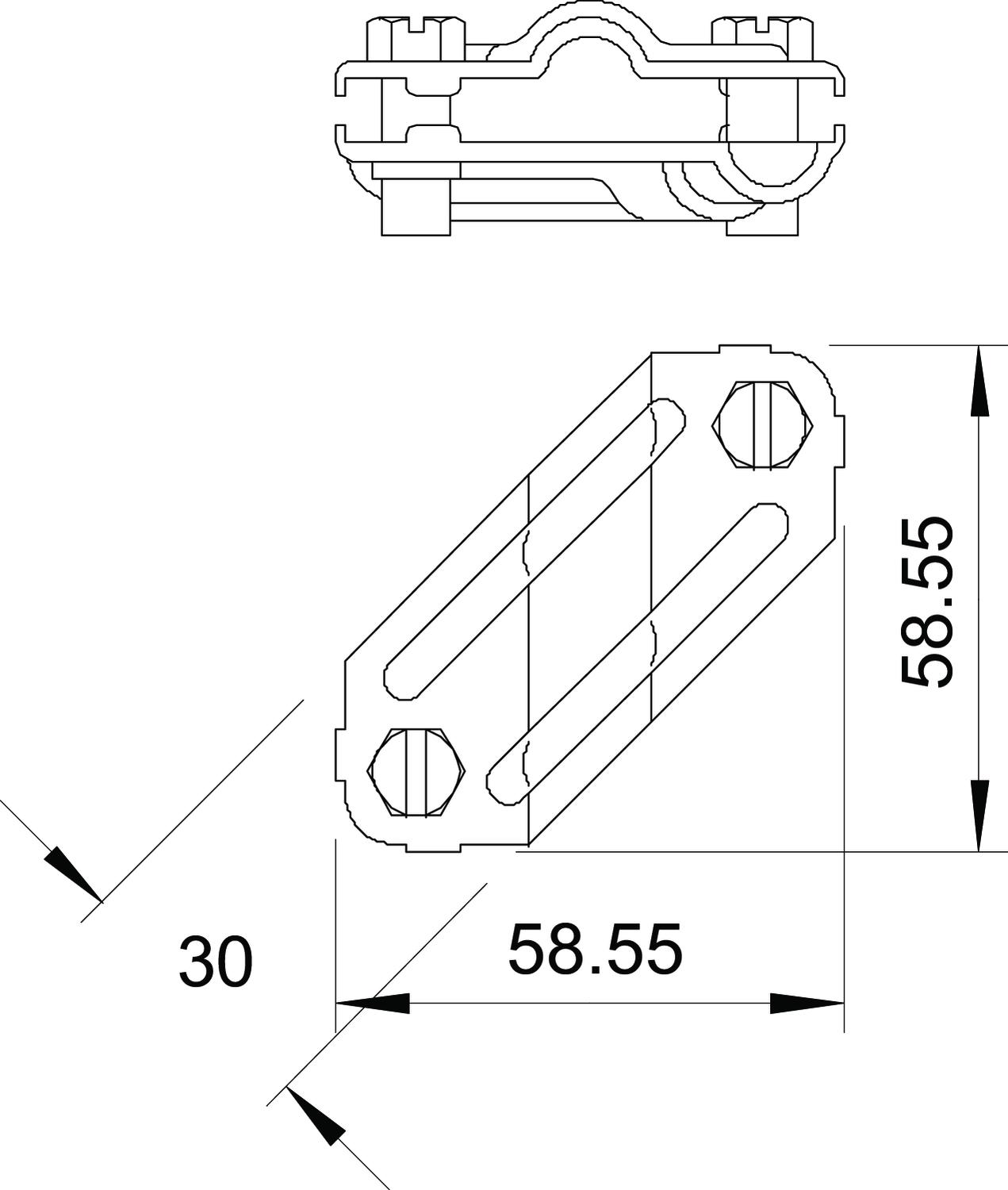

Dimension 8-10mm
Fit Rd 8-10/FL30 mm
Intermediate plate no
Lightning current carrying capacity H/100 kA
Material Stainless steel
Short-circuit current (50 HZ)(1 s;≤300°C) 1,4
Suitable for connection Round conductor Rd 8-10 / flat conductor Fl 30
Type of connector Cross-connectors
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
250 V4A Rd 8-10/FL30 mm 5312925
10 piece
250 VA Rd 8-10/FL30 mm 5312922
25 piece
Downloads

Download

REACH Declaration of conformity 250 V4A / 5312925 , 0.12MB , pdf
RoHS Declaration of conformity 250 V4A / 5312925 , 0.12MB , pdf

Download

250 V4A / 5312925
Download
