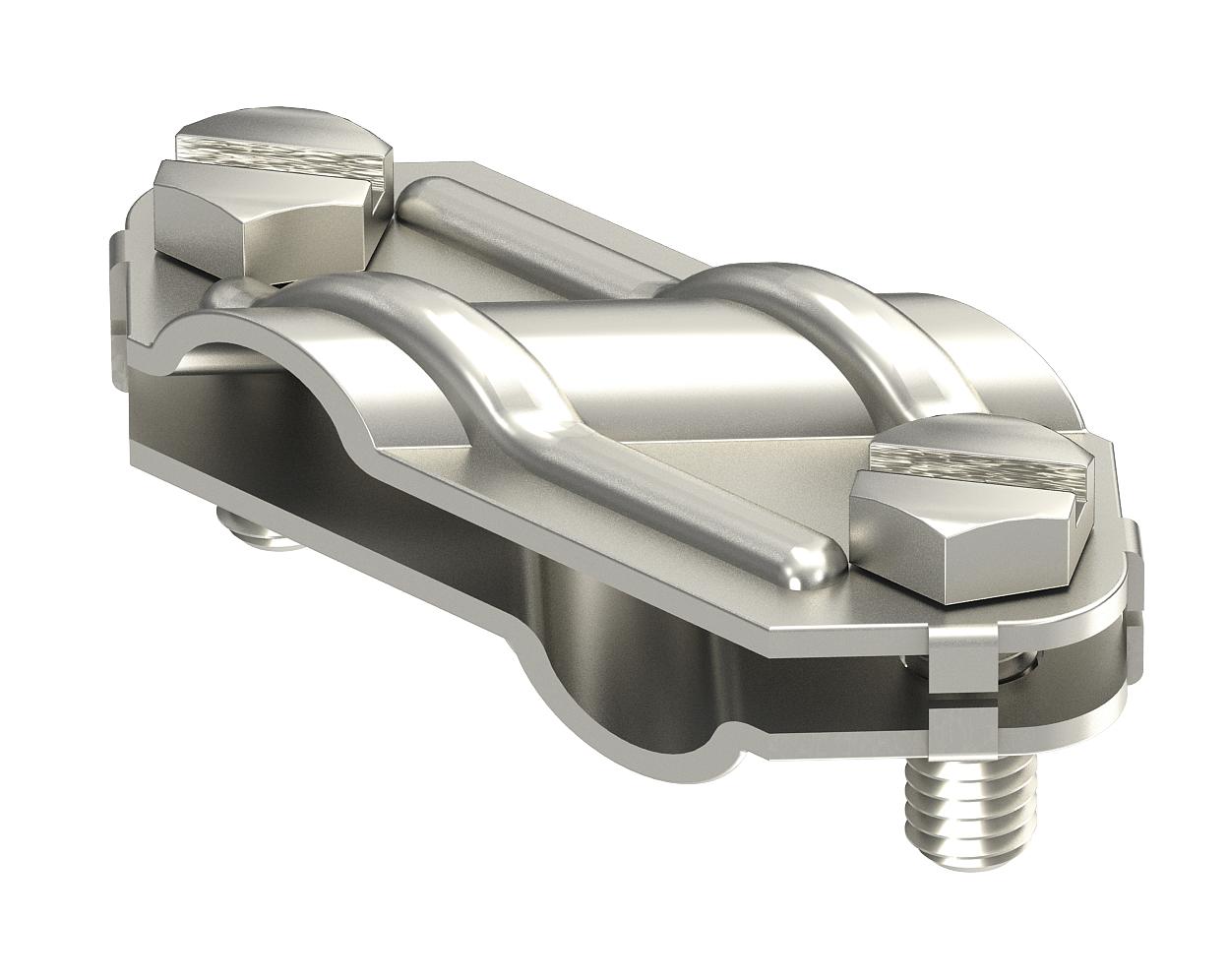

Cross-connector for flat conductors and round conductors stainless steel
Item no. 5312922 | EAN 4012195418757
- Product description
-
Product description

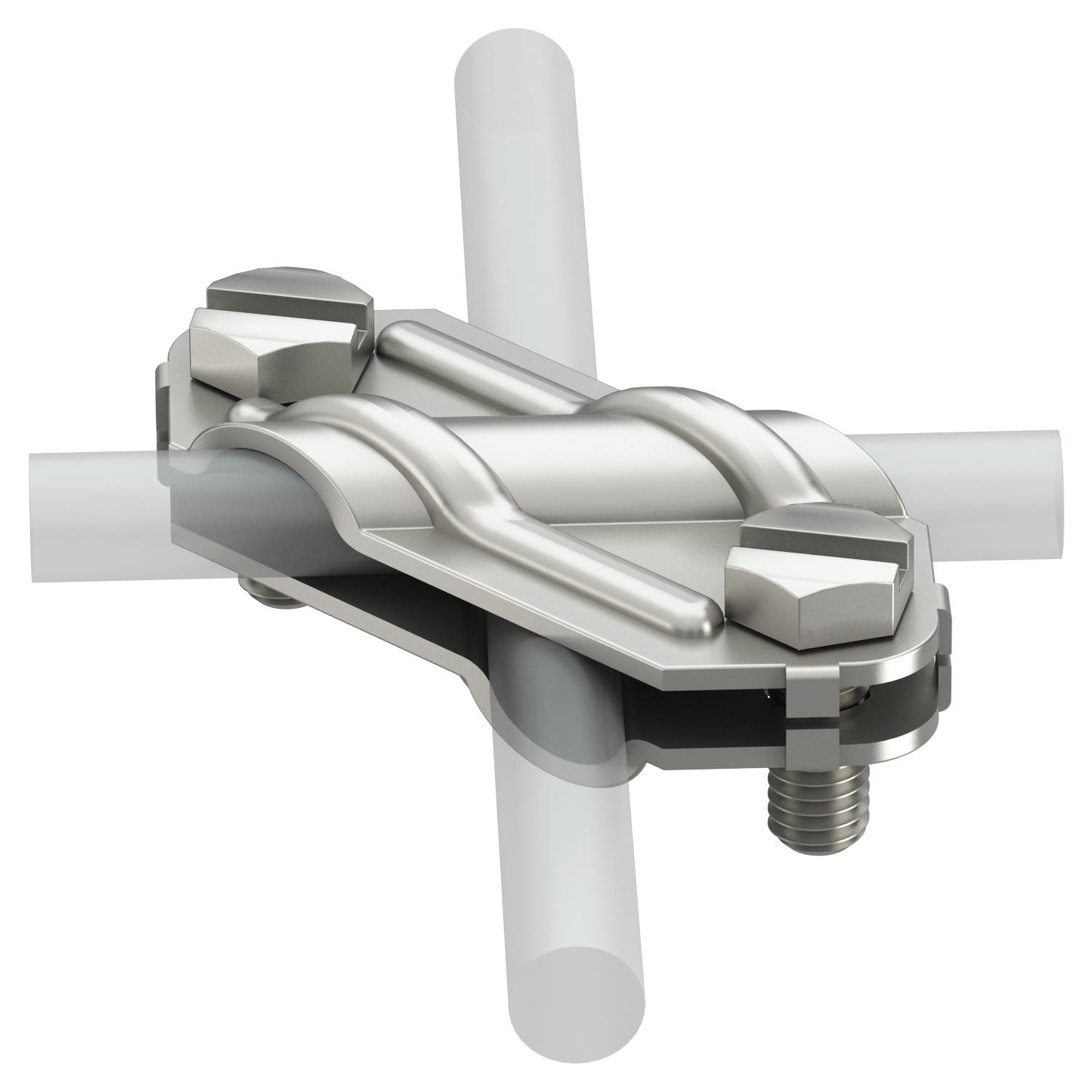

• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Rd 8-10 x Rd 8-10
• Fit: Rd 8-10 x FL 30
• Fit: FL 30 x FL 30
• Mounted with 2 hexagonal bolts M8 x 20 (F)
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10/FL30 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Stainless steel Short-circuit current (50 HZ)(1 s;≤300°C) 1,4 Suitable for connection Round conductor Rd 8-10 / flat conductor Fl 30 Type of connector Cross-connectors Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 250 VA / 5312922 , 0.21MB , pdfREACH Declaration of conformity 250 VA / 5312922 , 0.12MB , pdfRoHS Declaration of conformity 250 VA / 5312922 , 0.12MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf
