Cover, 90° vertical bend, falling for PT38/PT76 FT 76 | 1.6

Cover, 90° vertical bend, falling for PT38/PT76 FT

Item no. 6901003 | EAN 4012196063338

Item no. / Types

Width

Plate thickness	1.6 mm

Product description

Product description

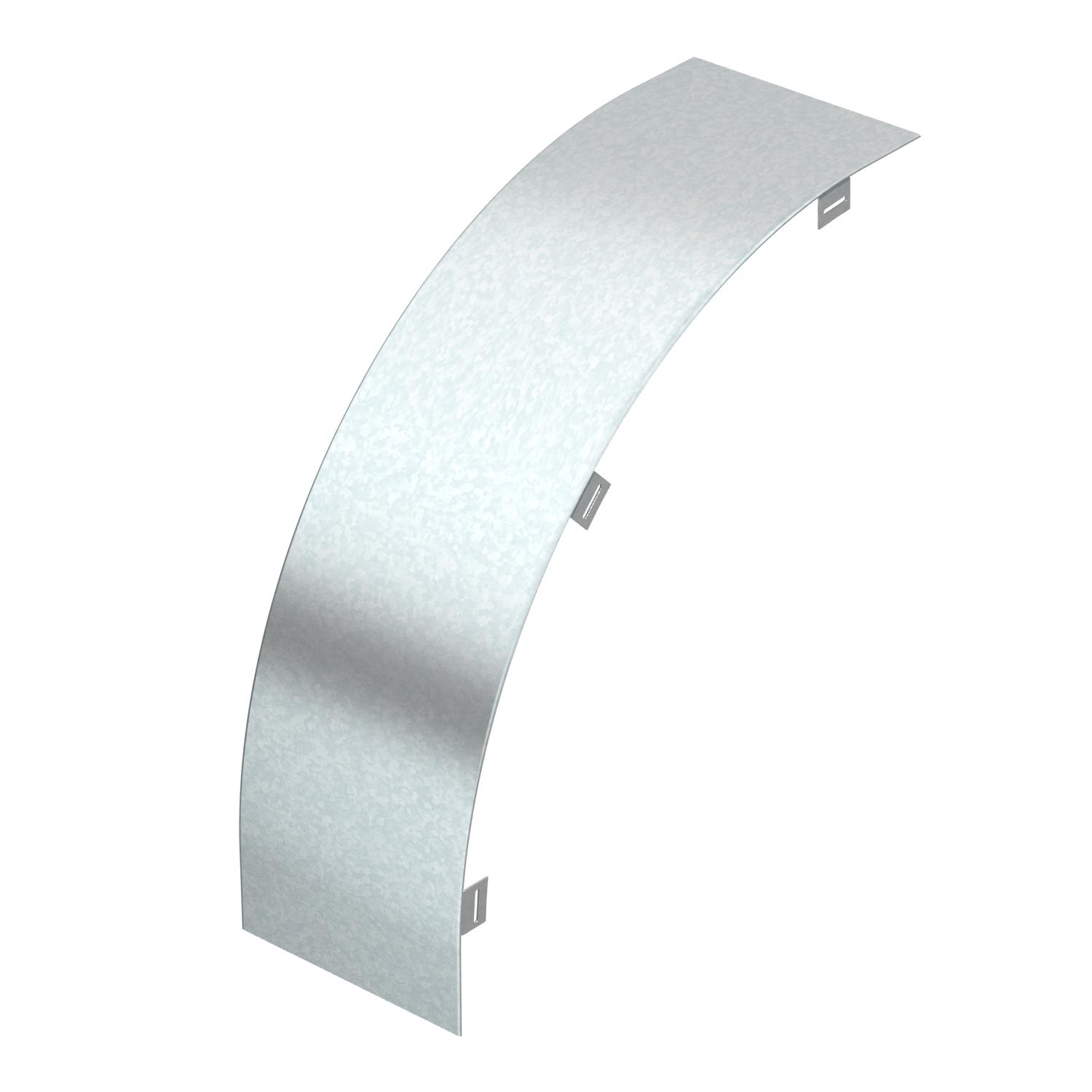

Unperforated cover for 90° vertical bend, falling, of types PT38 and PT76.
Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Technical data

Dimension	452x452x76
Material	Steel

Plate thickness	1,6 mm
Surface	Hot-dip galvanised

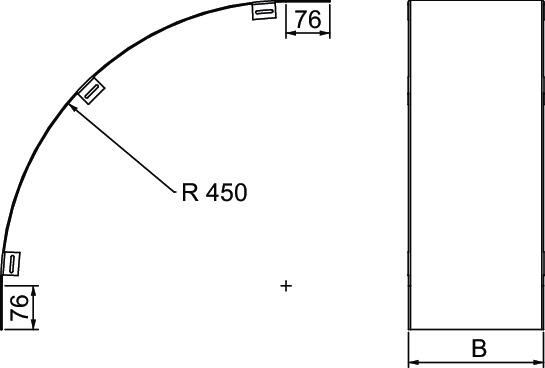

Dimensions

Dimension B	76 mm

Width	76 mm

All types

All types

Types	Width	Plate thickness	Item no.	SSU
PTCover76 HDG	76 mm	1.6 mm	6901003	1
PTCover114 HDG	114 mm	1.6 mm	6901007	1
PTCover152 HDG	152 mm	1.6 mm	6901011	1
PTCover228 HDG	228 mm	1.6 mm	6901015	1
PTCover304 HDG	304 mm	1.6 mm	6901019	1
PTCover457 HDG	457 mm	1.6 mm	6901023	1
PTCover609 HDG	609 mm	1.6 mm	6901027	1
