Cover, 90° bend PT38/PT76 FT

Item no. / Types

Width

Plate thickness	1.6 mm

Product description

Product description

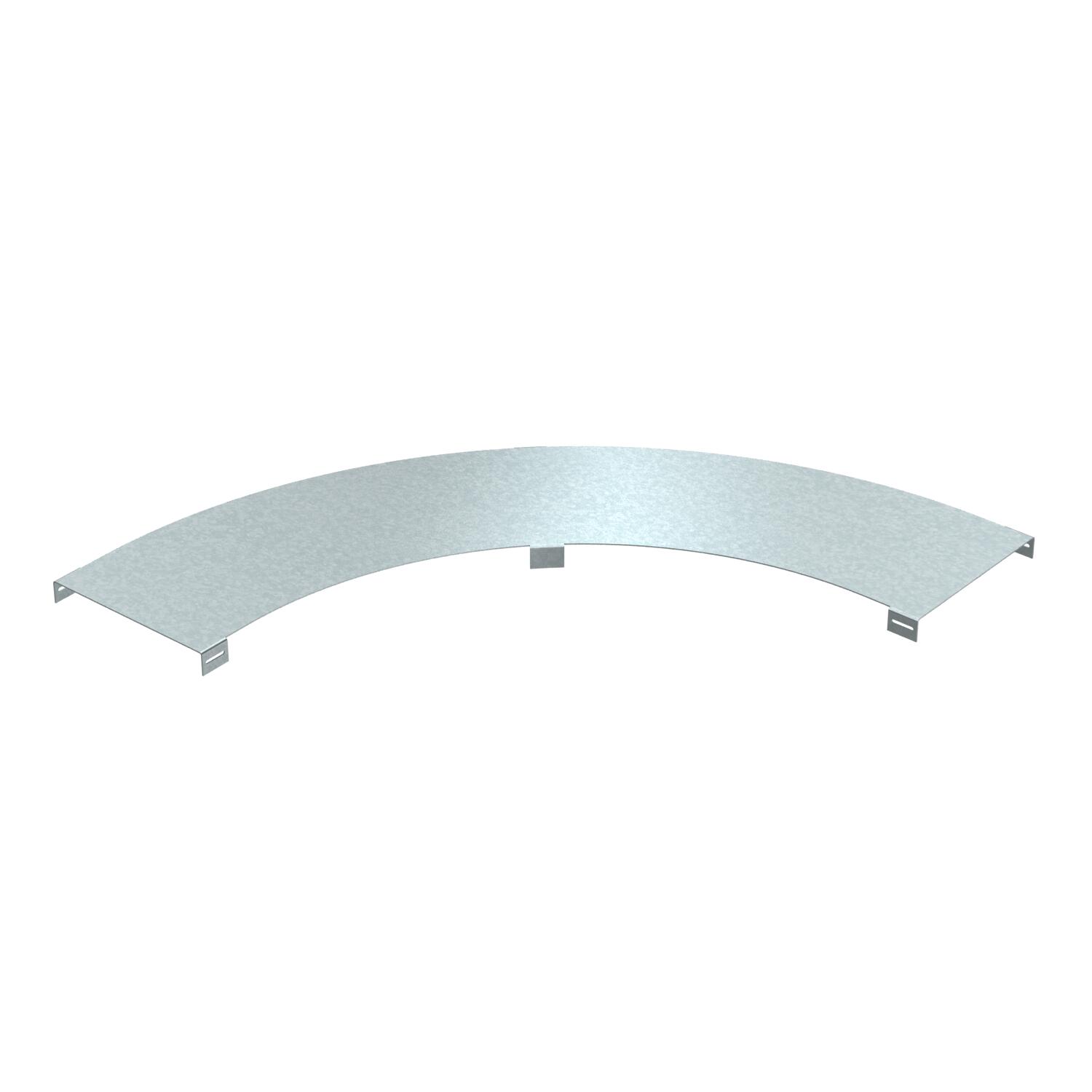

Unperforated cover for 90° bend of types PT38 and PT76.

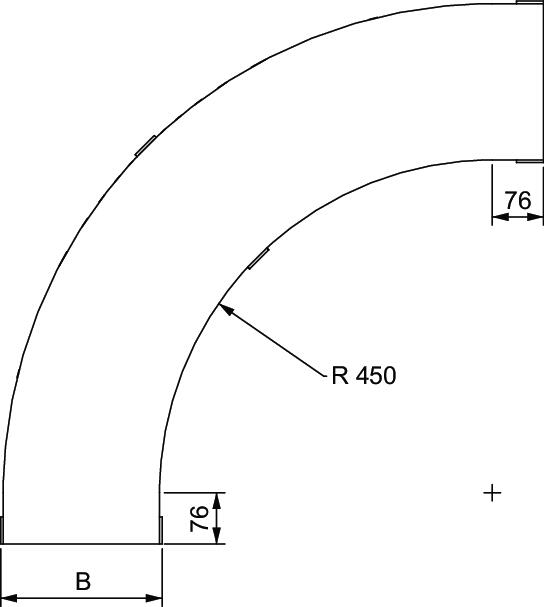

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Dimension	616x616x20
Hinged	no
Maintain electrical functions	no
Material	Steel
Plate thickness	1,6 mm

Dimension B	76 mm

Width	76 mm

All types

All types

Types	Width	Plate thickness	Item no.	SSU
PTCover 76 HDG	76 mm	1.6 mm	6900903	1
PTCover 114 HDG	114 mm	1.6 mm	6900907	1
PTCover 152 HDG	152 mm	1.6 mm	6900911	1
PTCover 228 HDG	228 mm	1.6 mm	6900915	1
PTCover 304 HDG	304 mm	1.6 mm	6900919	1
PTCover 457 HDG	457 mm	1.6 mm	6900923	1
PTCover 609 HDG	609 mm	1.6 mm	6900927	1
