Connection strap for Parex spark gap 13 | For M12 bolt

morepic-1

morepic-2

Connection strap for Parex spark gap

Item no. 5240220 | EAN 4012195412991

Item no. / Types

Drill hole diameter, min.

Version for

Product description

Product description

Attaching flange for installing OBO Parex spark gap 480 on insulating flanges.

Technical data

Technical data

Dimension	Ø13mm
Drill hole diameter, min.	13 mm
Material	Steel

Surface	Hot galvanized
Version for	For M12 bolt

All types

All types

Types	Drill hole diameter, min.	Version for	Item no.	Quantity	SSU
484 M12	13 mm	For M12 bolt	5240220	piece	2 piece
484 M16	17 mm	For M16 bolt	5240239	piece	2 piece
484 M20	21 mm	For M20 bolt	5240247	piece	2 piece
484 M24	25 mm	For M24 bolt	5240255	piece	2 piece

Downloads

Data sheet 484 M12 / 5240220 , 0.16MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue Überspannungsschutz , 28.42MB , pdf

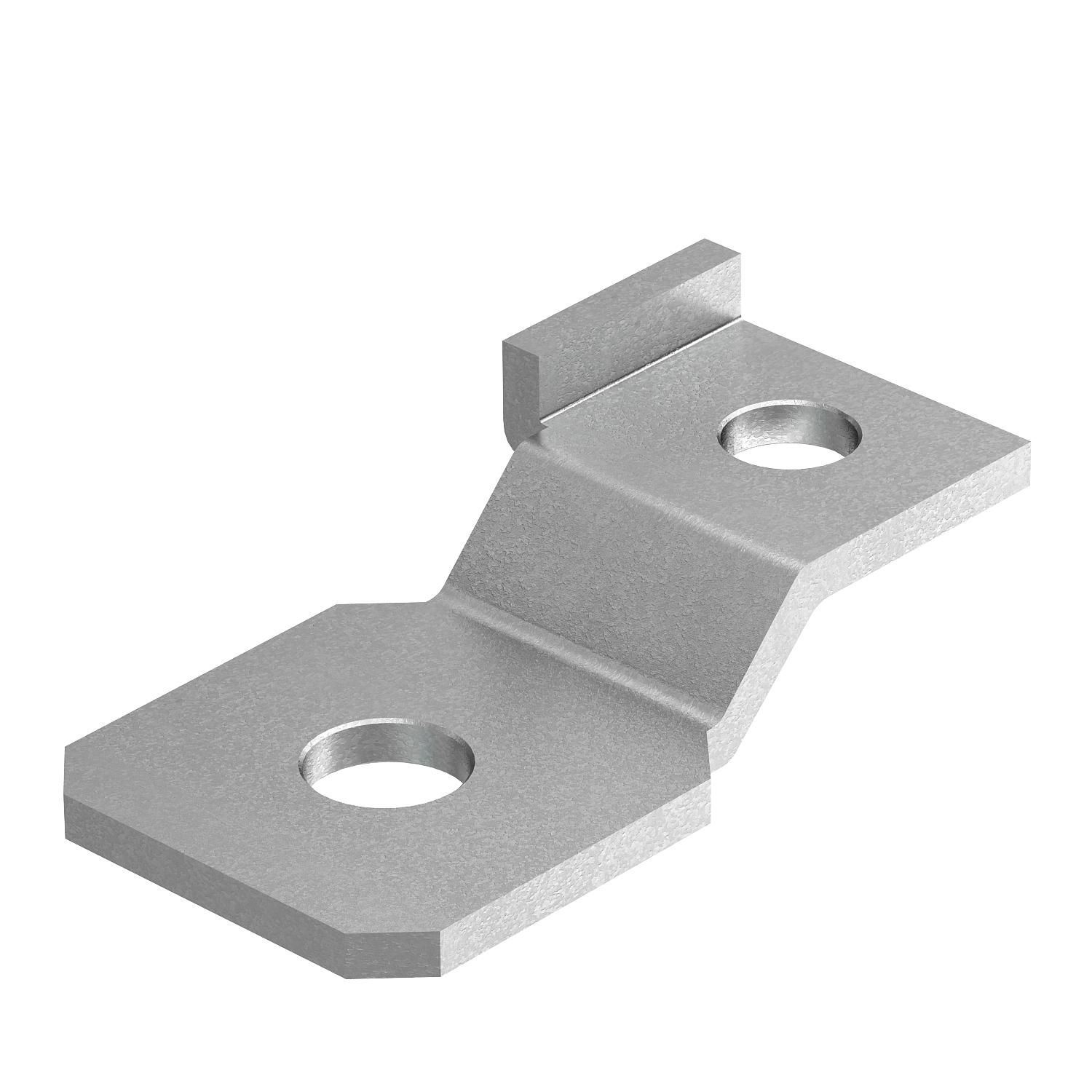

Product graphic 484 M12 / 5240220, 117.08 kB, jpg

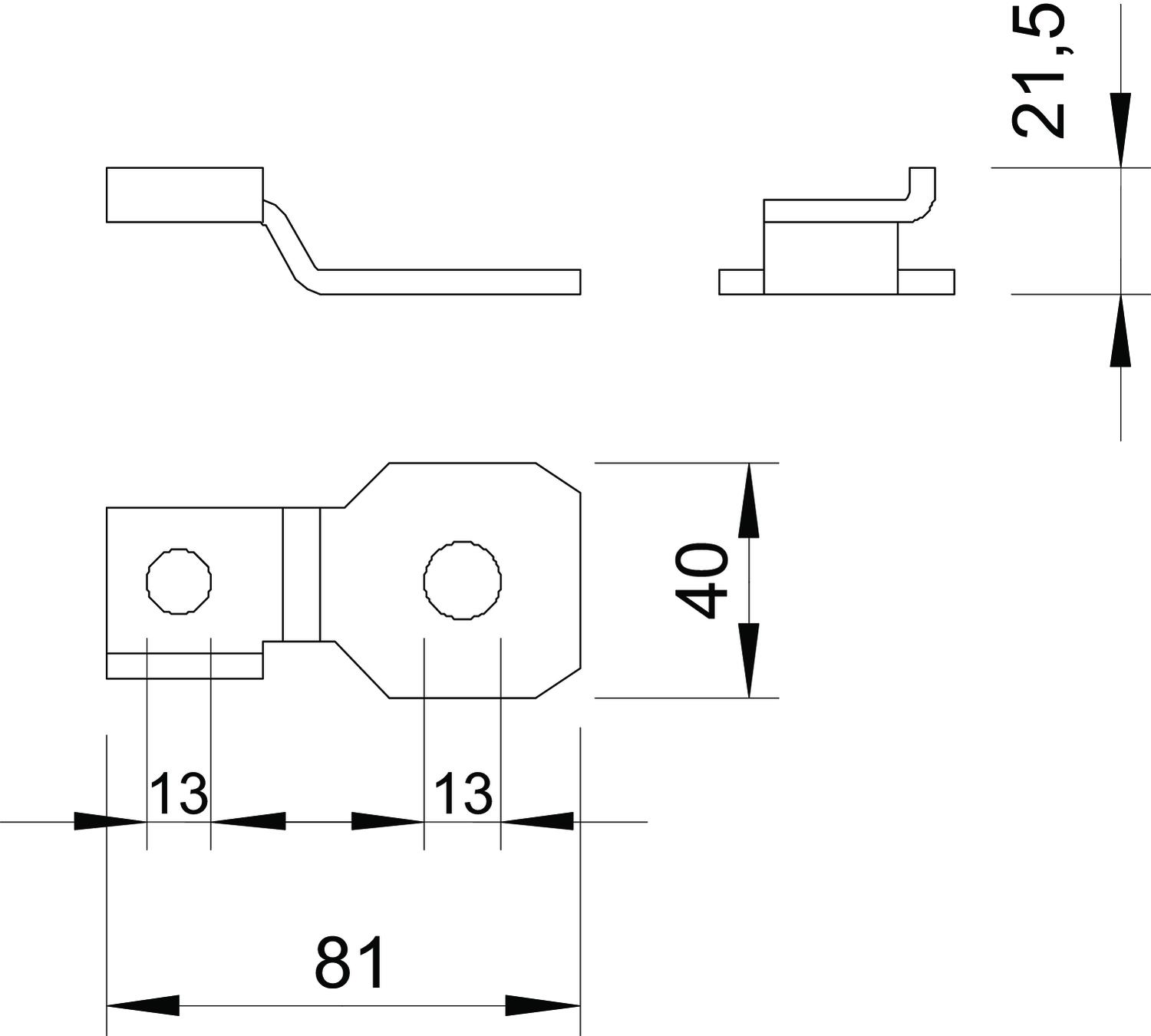

Scale drawing 484 M12 / 5240220, 53.81 kB, jpg
