Connection sleeve O-Line | 17 |

morepic-1

morepic-2

Connection sleeve O-Line

Item no. 6911151 | EAN 4012196082124

Item no. / Types	6911151 / M10 HEX C N EG

WAF	17

Product description

Product description

Coupling nut for screw-on connection of threaded rods.

Technical data

Technical data

Dimension	30x20x17
Dimension L	35 mm
Material	Steel

Surface	Electrogalvanized
WAF	17

All types

All types

Types	WAF	Item no.	Quantity	SSU
M10 HEX C N EG	17	6911151		1

Downloads

Data sheet M10 HEX C N EG / 6911151 , 0.15MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

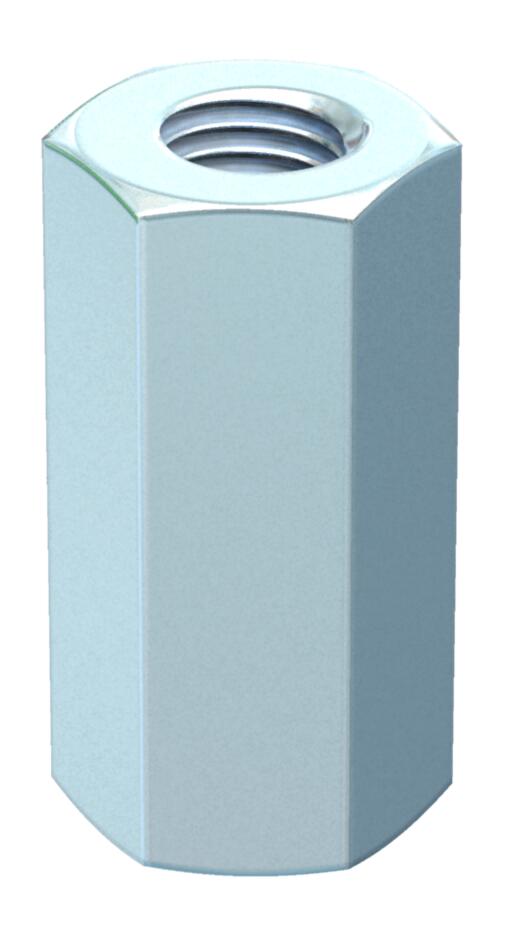

Product graphic M10 HEX C N EG / 6911151, 25.56 kB, jpg

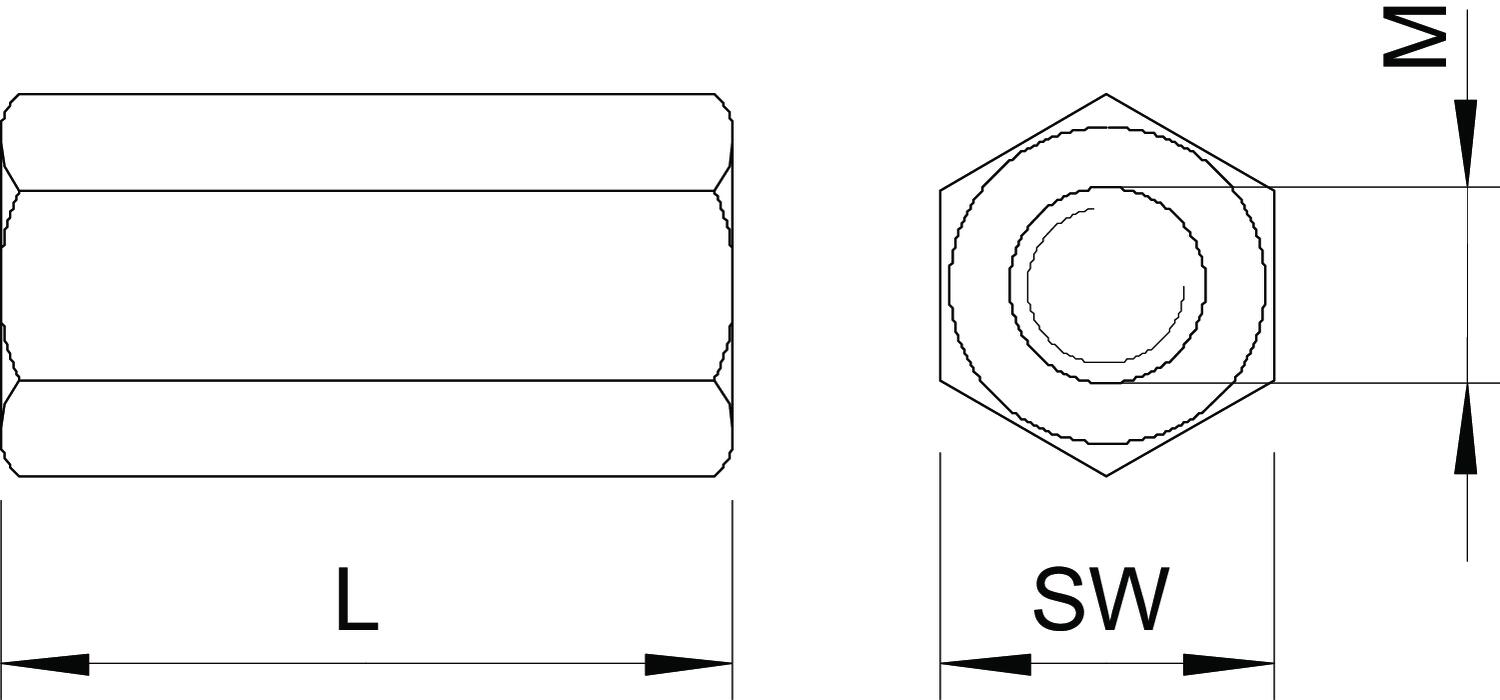

Scale drawing M10 HEX C N EG / 6911151, 43.45 kB, jpg

M10 HEX C N EG / 6911151
