Note: This article is discontinued.
You can find the current article here: 7400992 / Connection shackle, conductive, for EÜK-2

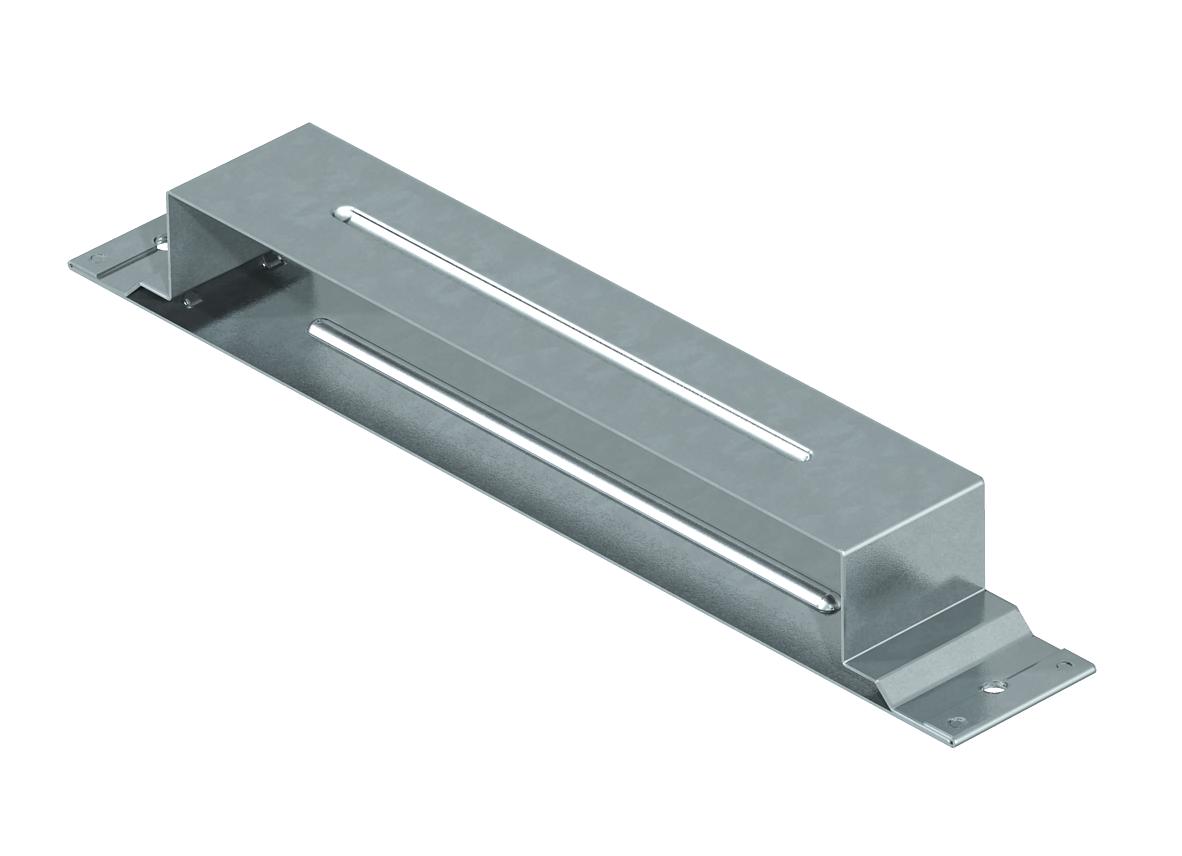

Connection shackle, height 38 mm
Item no. 7400968 | EAN 4012195432944
- Product description
-
Product descriptionDuct connectors for conductive mounting of screed-covered underfloor installation duct.
-
- Technical data
-
Technical data

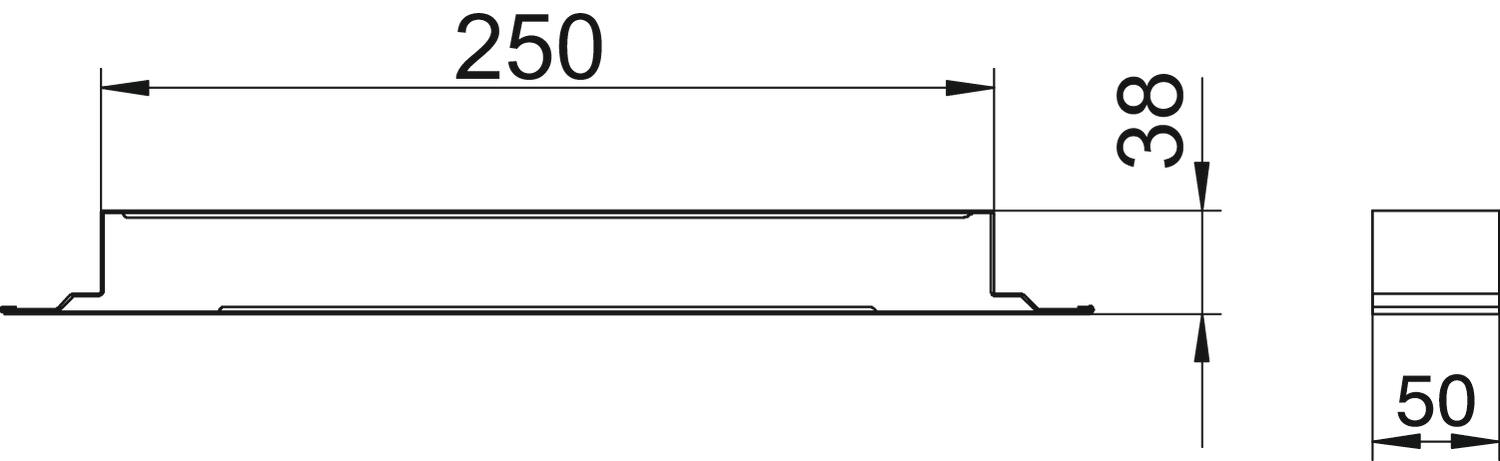

Dimension 50x250x38 Dimension a 250 mm Dimension h 38 mm Duct height, min. 38 mm Floor plate yes Height 38 mm Material Steel Seal installation option no Suitable for expansion joint yes Surface Strip galvanized Version for Strap Width 250 mm With equipotential bonding yes - All types
- Downloads
-
Data sheet VL 25038E / 7400968 , 0.13MB , pdfEU declaration of conformity VL 25038E / 7400968 , 0.11MB , pdfUK Declaration of Conformity VL 25038E / 7400968 , 0.09MB , pdfREACH Declaration of conformity VL 25038E / 7400968 , 0.12MB , pdfRoHS Declaration of conformity VL 25038E / 7400968 , 0.12MB , pdfLabel approval VDE symbol approval, EÜK , 0.12MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfNo invitation to tender text is available for this product.
