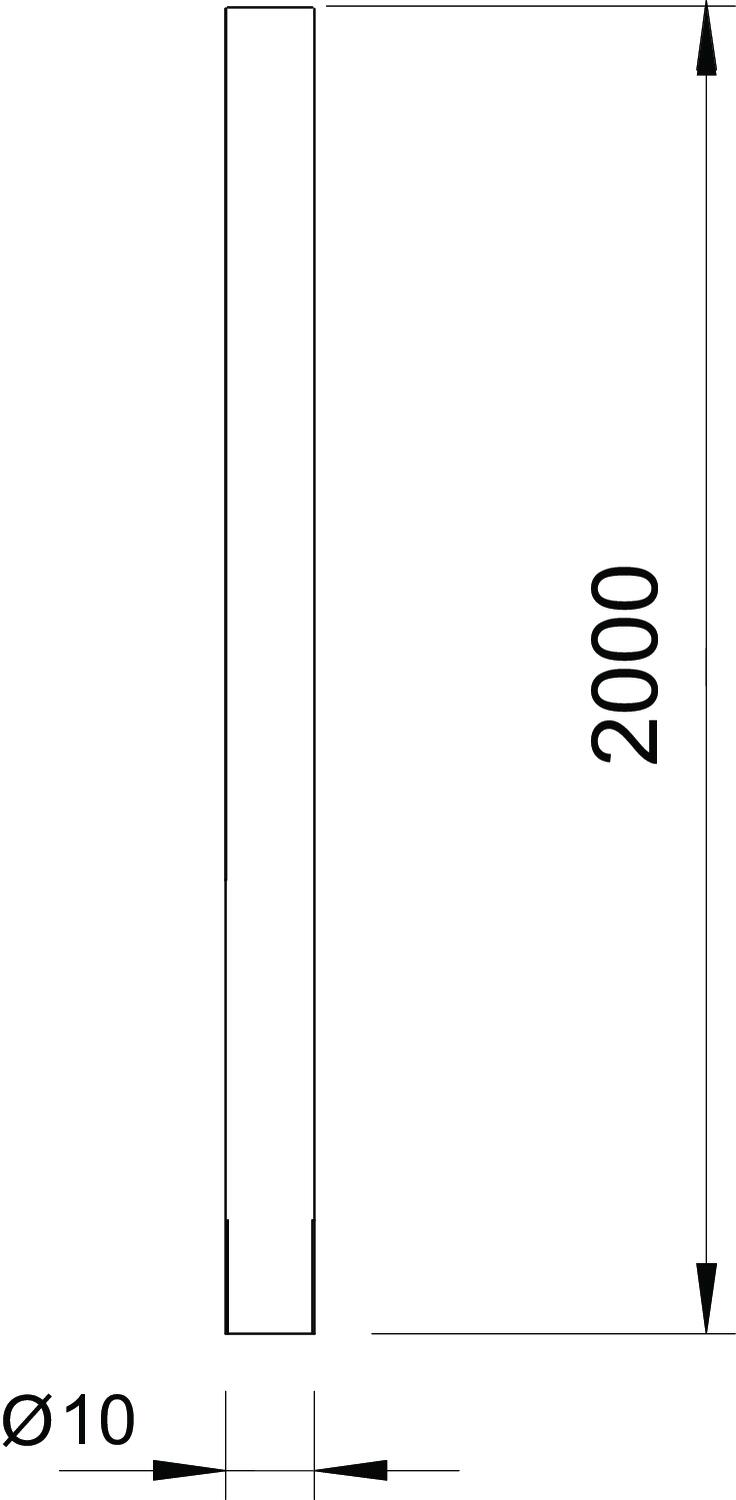

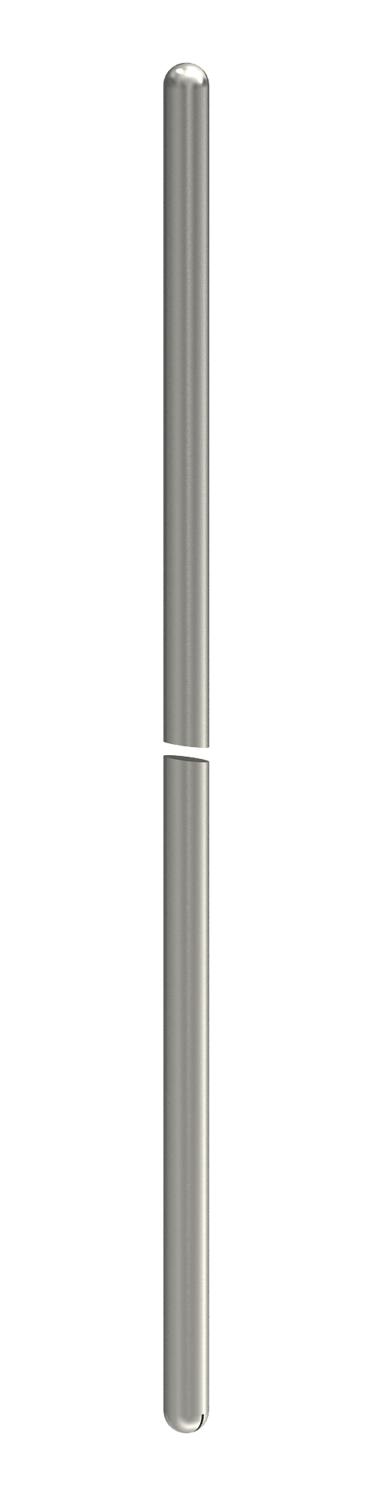

Connection lug/earth entry rod made of stainless steel (V4A) 2000 | 10

Connection lug/earth entry rod made of stainless steel (V4A)

Item no. 5430720 | EAN 4012196456161

Item no. / Types	5430720 / AF RD 10 V4A

Length	2000 mm

Nominal size Ø	10 mm

Product description

Product description

• According to DIN EN 62561-2 (VDE 0185-561-2)

• Corresponds to the requirements of VDE 0185-305 (IEC 62305)

• RD 10-V4A for applications in the earth

• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth

Technical data

Technical data

Cross-section	75 mm²
Dimension	2000mm
Dimension L	2000 mm
Length	2000 mm

Material	Stainless steel
Nominal size Ø	10 mm
With attaching holes	no

All types

All types

Types	Length	Nominal size Ø	Item no.	Quantity	SSU
AF RD 10 V4A	2000 mm	10 mm	5430720	piece	5 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 A4	252 8-10x16 V4A	5312346	piece	10 piece

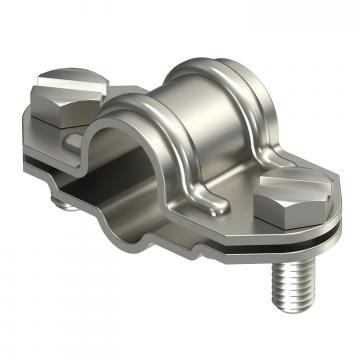

Universal separating piece A2	226 VA	5336058	piece	10 piece
