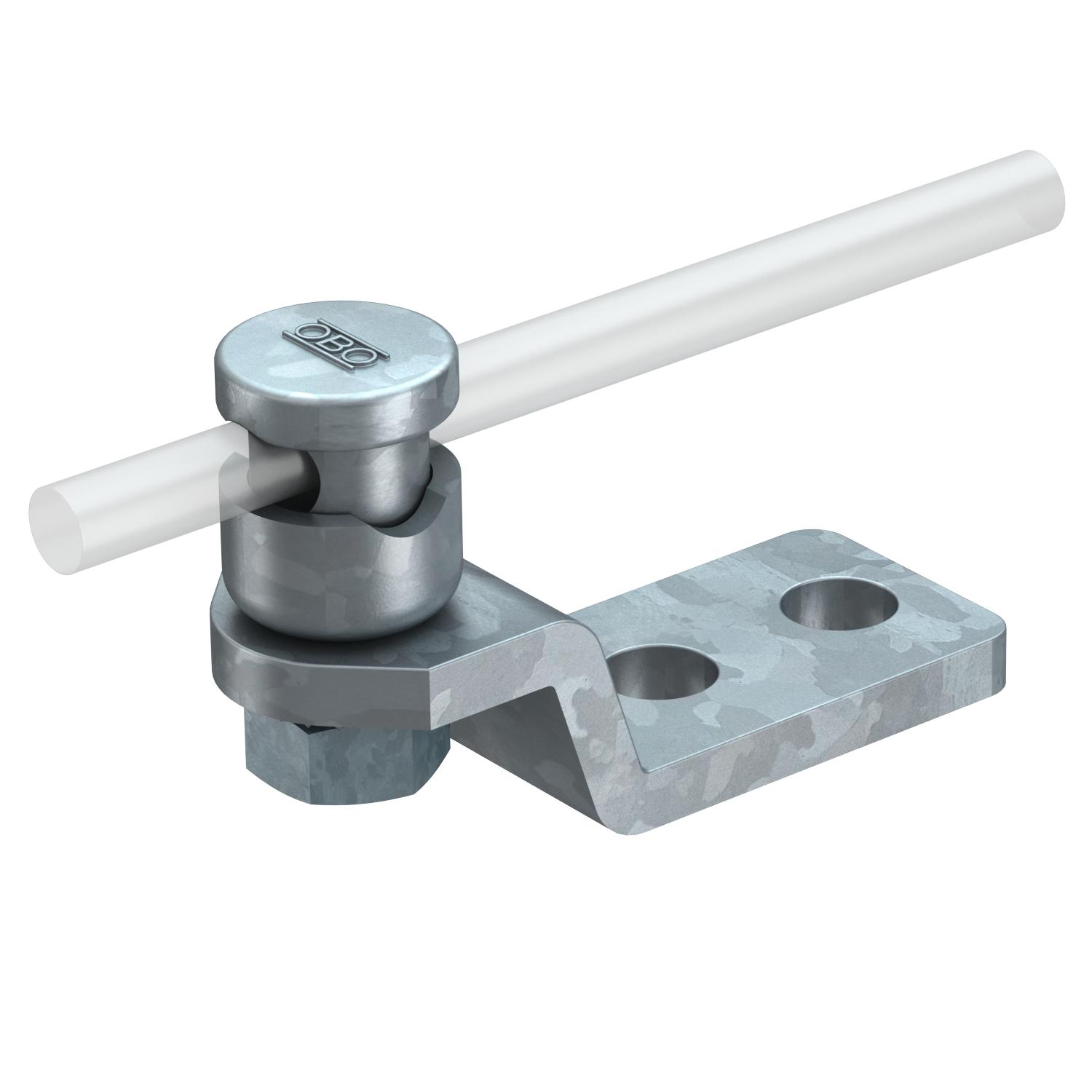

Connection and end piece with connector and pressure trough
Item no. 5304660 | EAN 4012195817758
- Product description
-

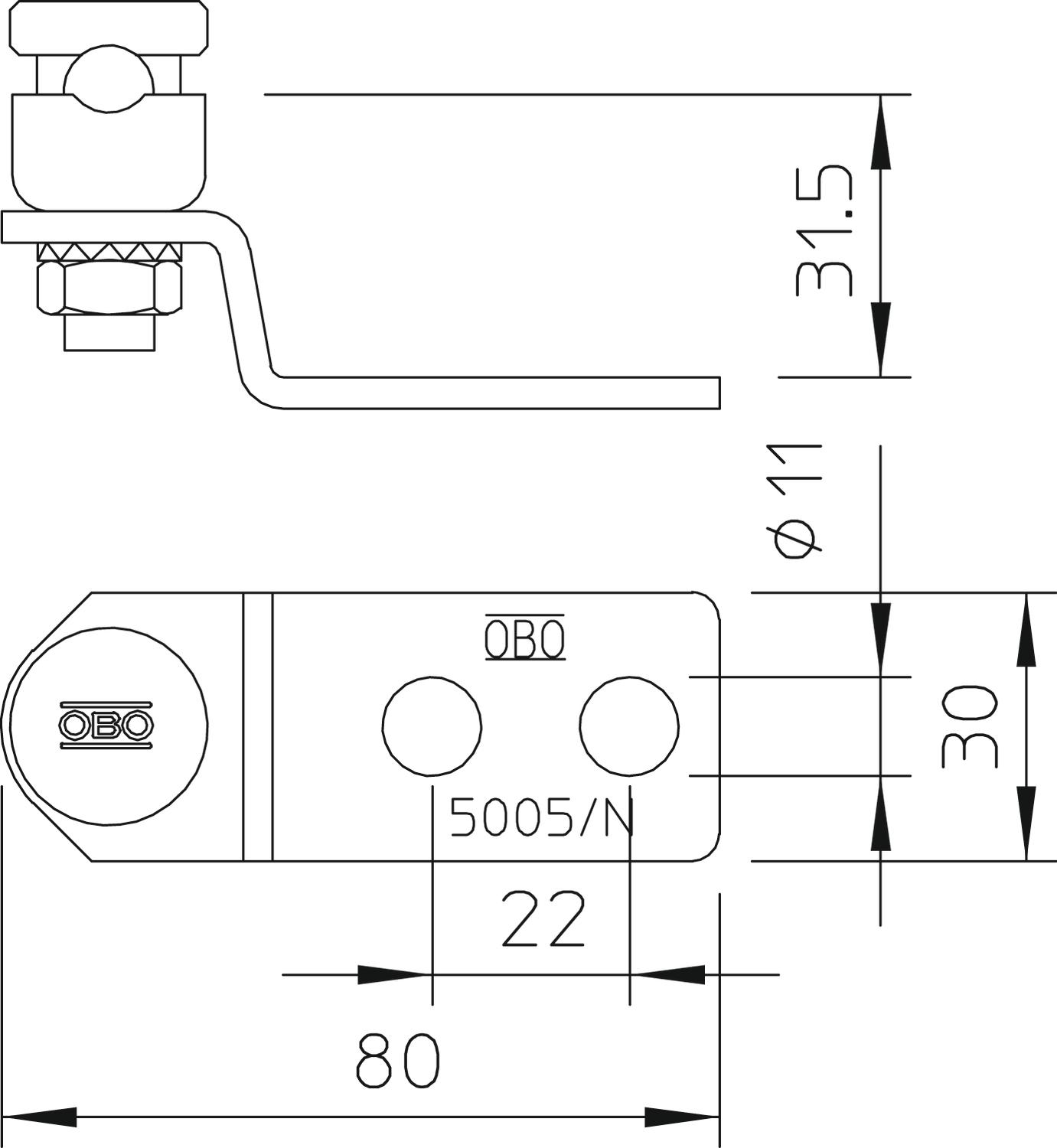

Product description• With 2 attaching holes Ø 11 mm
• Including pre-mounted connector 5001 N
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Steel Suitable for connection Miscellaneous Surface Hot-dip galvanised Type of connector End piece Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 5005 N-FT / 5304660 , 0.19MB , pdfEU declaration of conformity 5005 N-FT / 5304660 , 0.06MB , pdf
