Connection and end piece, DIN version | H/100 | Rd 8-10
morepic-1 morepic-2 video-1

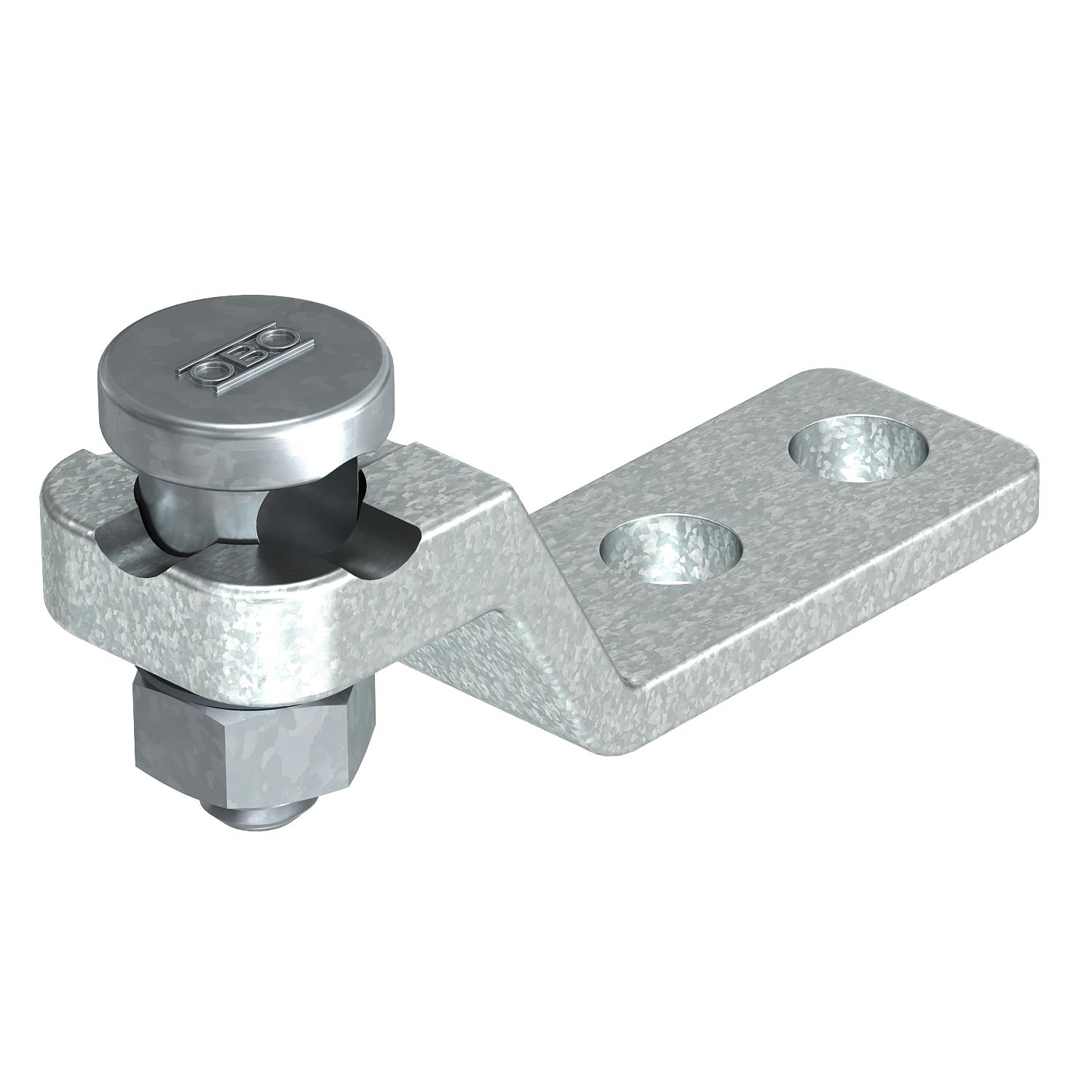

Connection and end piece, DIN version

Item no. 5304601 | EAN 4012195416470

5304601 / 5005 DIN-FT
H/100 kA
Rd 8-10 mm
Product description
Product description
• With 2 attaching holes and 1 fix contact clamping screw 5000…

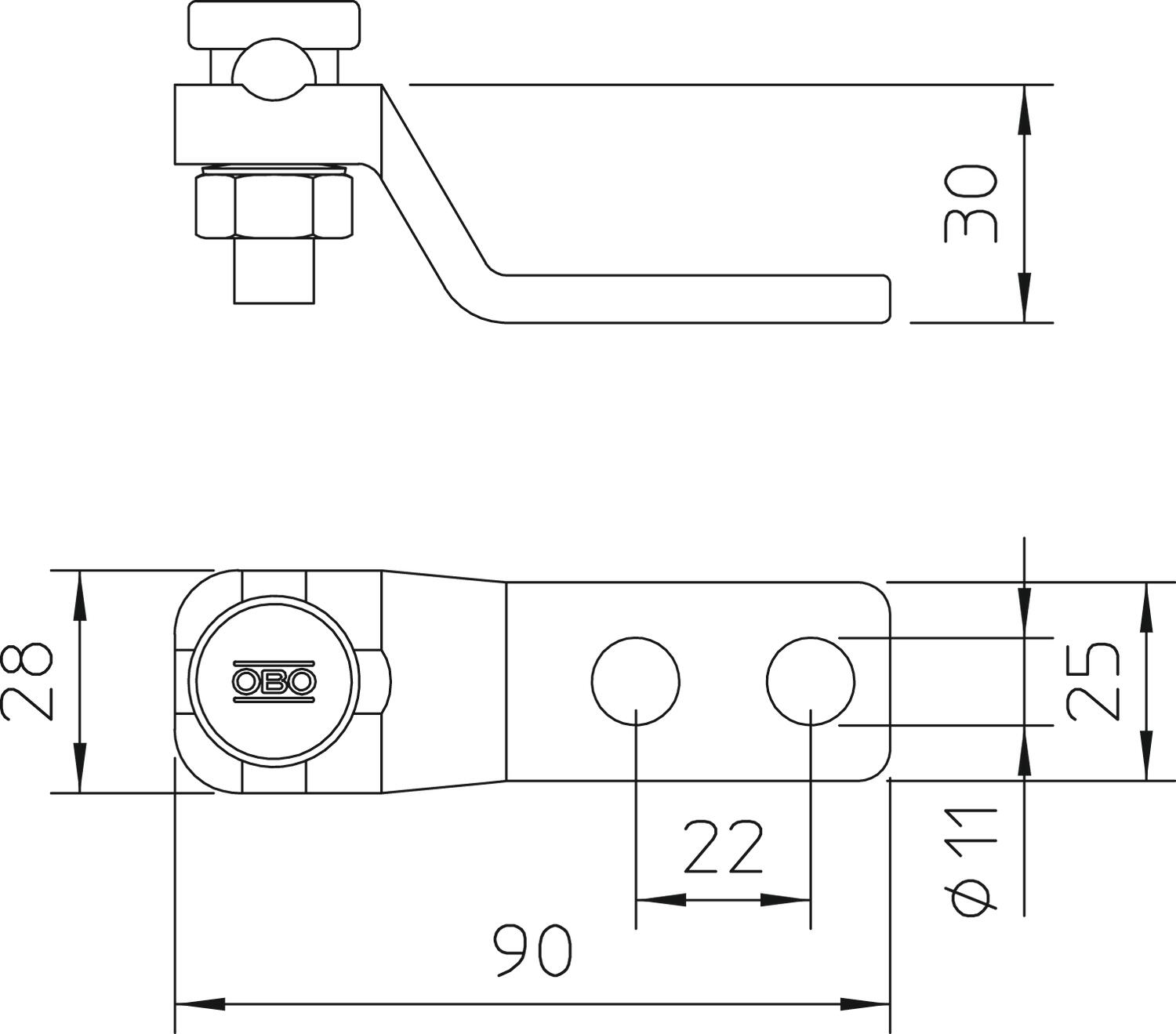

• With 2 attaching holes Ø 11 mm
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)

  • Lightning current-tested
Technical data

Technical data

Dimension 8-10mm
Fit Rd 8-10 mm
Intermediate plate no
Lightning current carrying capacity H/100 kA
Material cast steel
Suitable for connection Miscellaneous
Surface Hot galvanized
Type of connector Connectors
Type of fastening screw Clamping screw
All types

All types

Types Lightning current carrying capacity Fit Item no. Quantity SSU
5005 DIN-FT H/100 kA Rd 8-10 mm 5304601
10 piece
Downloads

Download

Download
Download

EU declaration of conformity 5005 DIN-FT / 5304601 , 0.06MB , pdf
Download

Download

5005 DIN-FT / 5304601
