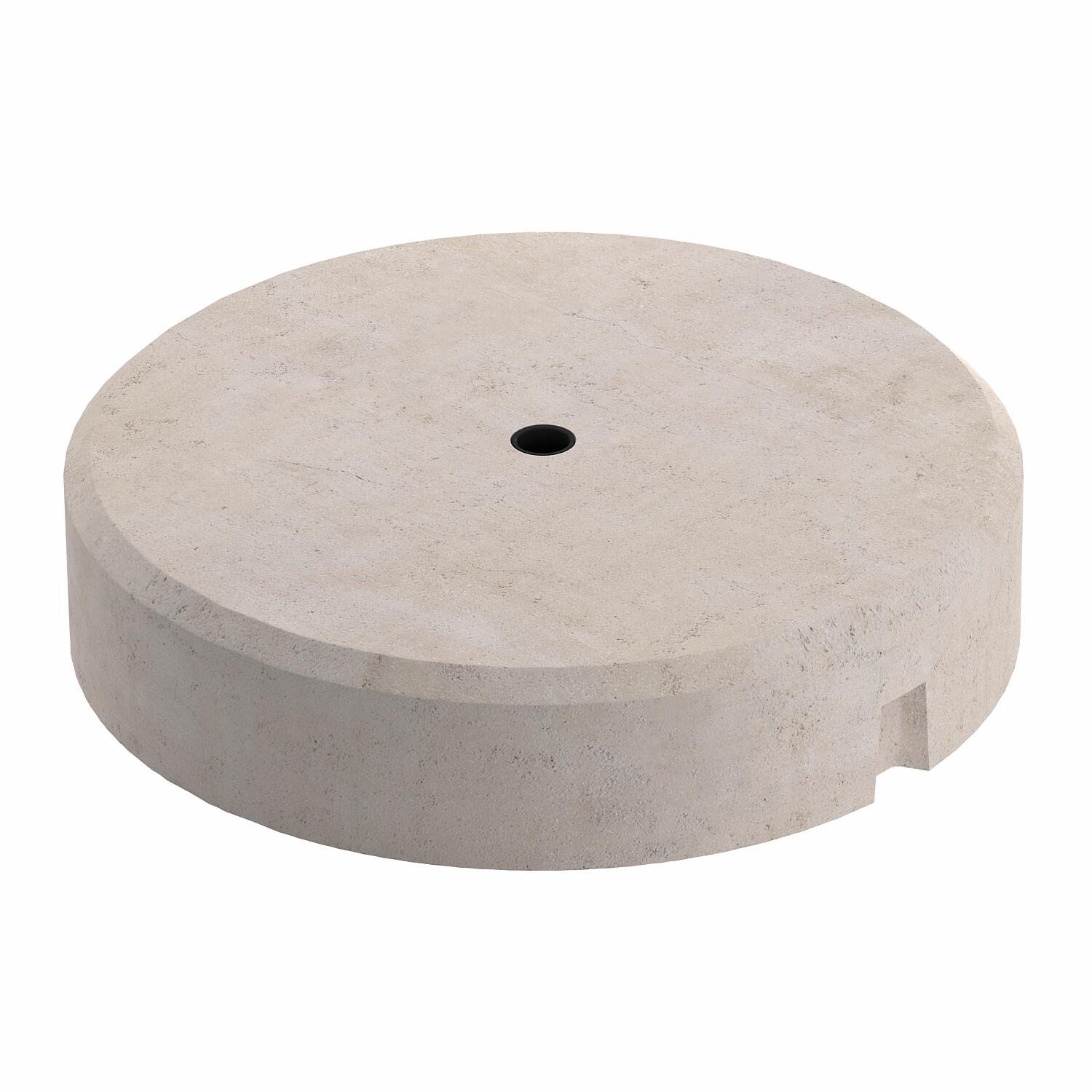

Concrete base for FangFix system, min. 16 kg
Item no. 5403227 | EAN 4012195548898
- Product description
-
Product description• Min. 16 kg block of Ø 365 mm, high level of stability
• Frost-resistant concrete
• Stackable
- Technical data
-
Technical data

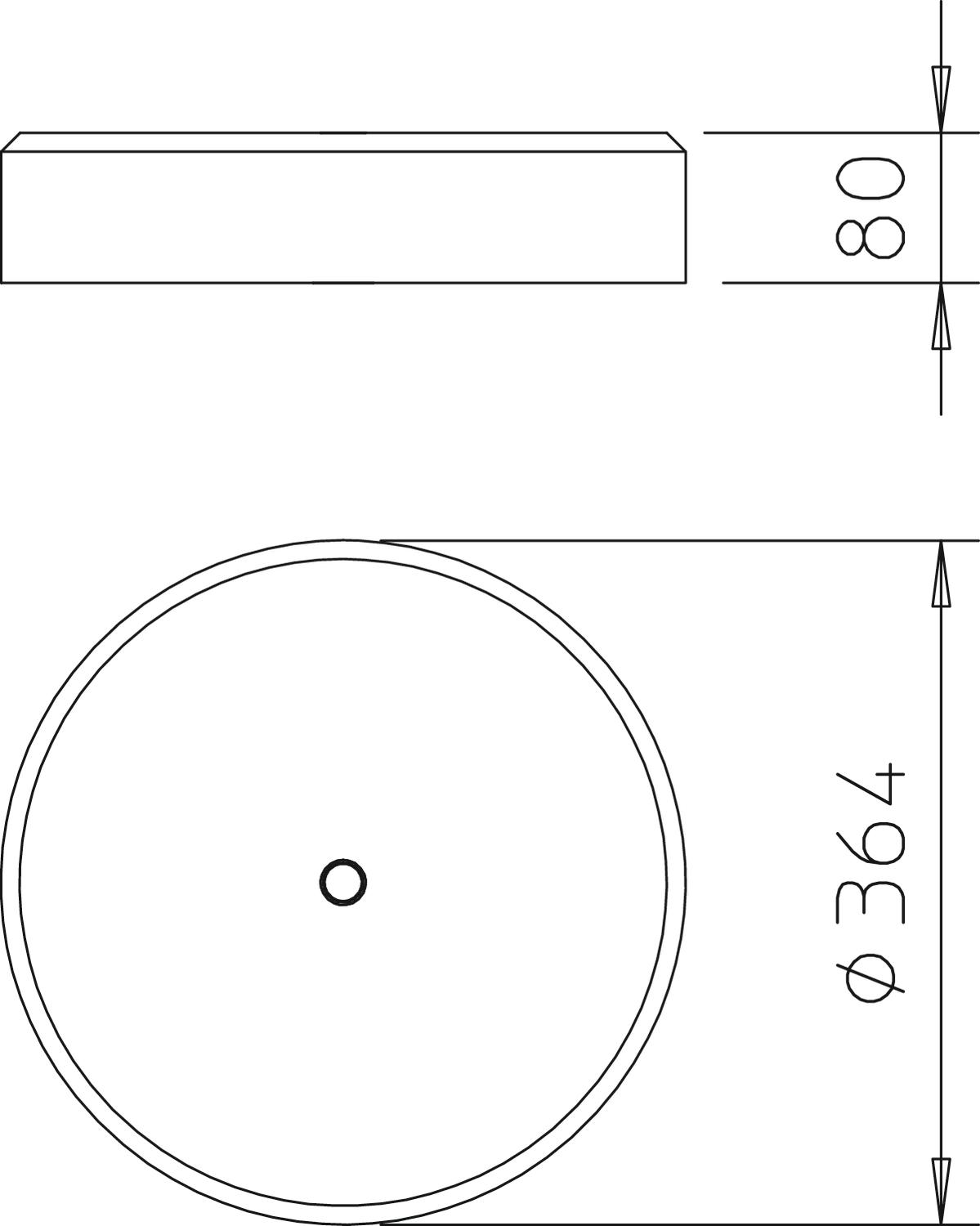

Air-termination rod holder Screwless CO₂ Footprint (GWP) Cradle-to-Gate 3,341 kg CO₂e / 1 Piece Diameter 364 mm Dimension 16kg Material Concrete Nominal size Ø 365 mm Tapered no Version for Base Weight 16 kg - All types
- Downloads
-
Data sheet F-FIX-S16 / 5403227 , 0.19MB , pdfREACH Declaration of conformity F-FIX-S16 / 5403227 , 0.12MB , pdfRoHS Declaration of conformity F-FIX-S16 / 5403227 , 0.13MB , pdfMounting instructions Mounting instructions, FangFix , 0.04MB , pdfNo invitation to tender text is available for this product.
