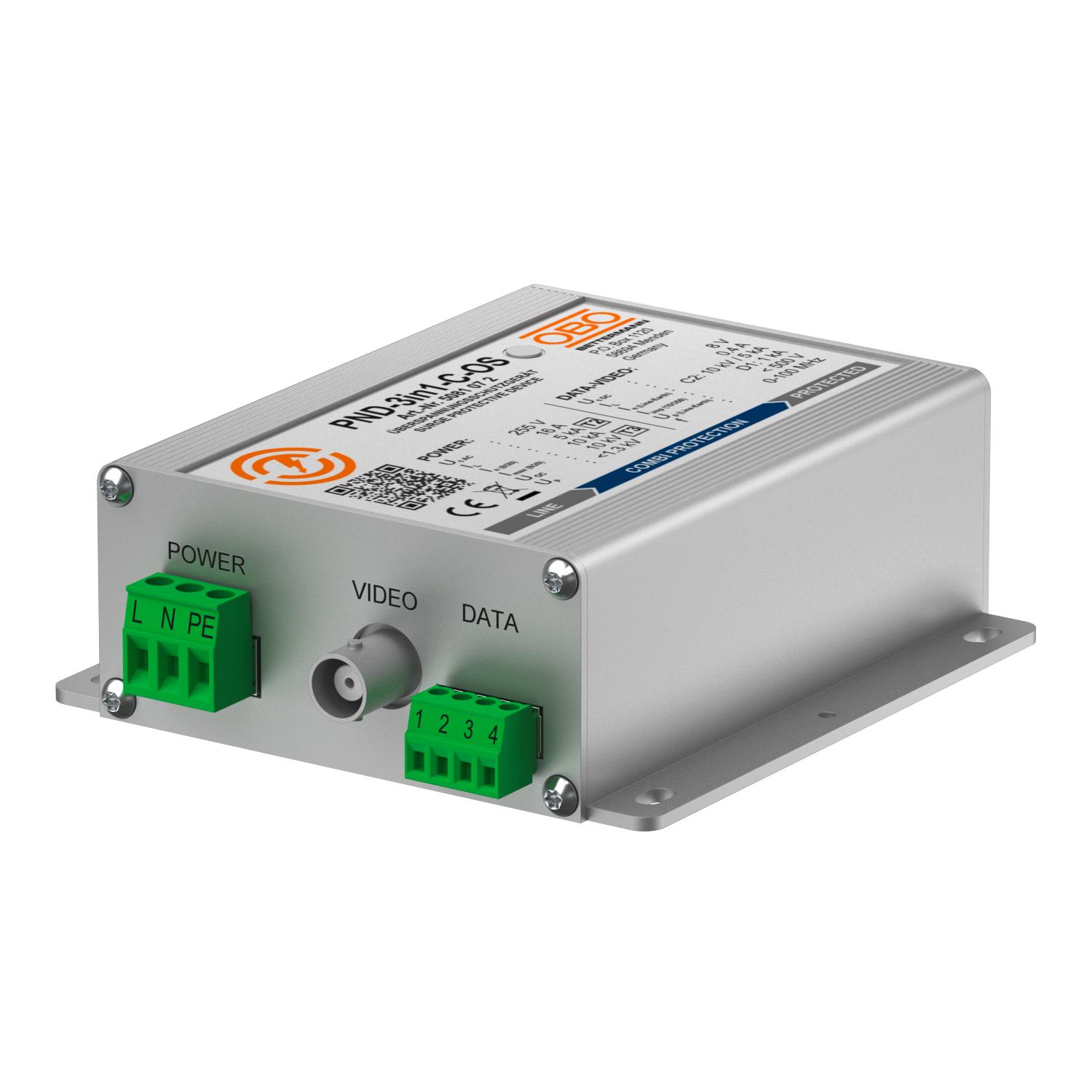

Combined protection device 3in1 for CCTV camera systems
Item no. 5081072 | EAN 4012196676972
- Product description
-
Product descriptionCombination protection device for coaxial TV/camera systems
• Protection of power and data interfaces in a single device
• In aluminium housing
• Simple mounting with adapter

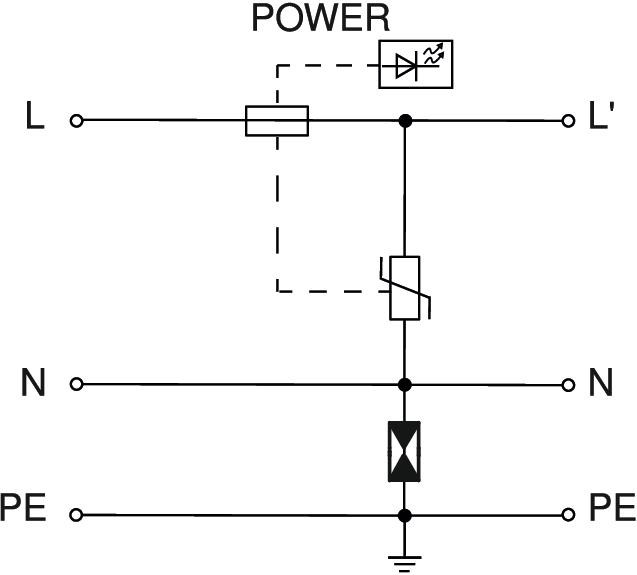

• Two-stage protection circuit
• Three-pole power connection for the power interface
• With LED operation display (OS)
• Incl. DIN rail fastening set
Application: Protection of CCTV, video signals, cameras and/or TV systems
-
- Technical data
-
Technical data
Channel performance Ansi/EA CAT 5e Channel performance ISO/IEC Class E Dimension 230V Earthing via: Connection cable / DIN rail Height 37,1 mm Length 122,5 mm Lightning protection zone LPZ 1→3 Maximum continuous voltage (L-N) 255 V Maximum discharge current (8/20 μs) 10 kA Nominal discharge current (8/20 µs) 5 kA Permitted temperature range, max. 80 °C Permitted temperature range, min. -20 °C Plug-in system BNC Protection level <1,3 kV Protection rating IP20 Rated current 16 A SPD to EN 61643-11 Type 2+3 SPD to IEC 61643-1 Class II+III Width 100 mm - All types
