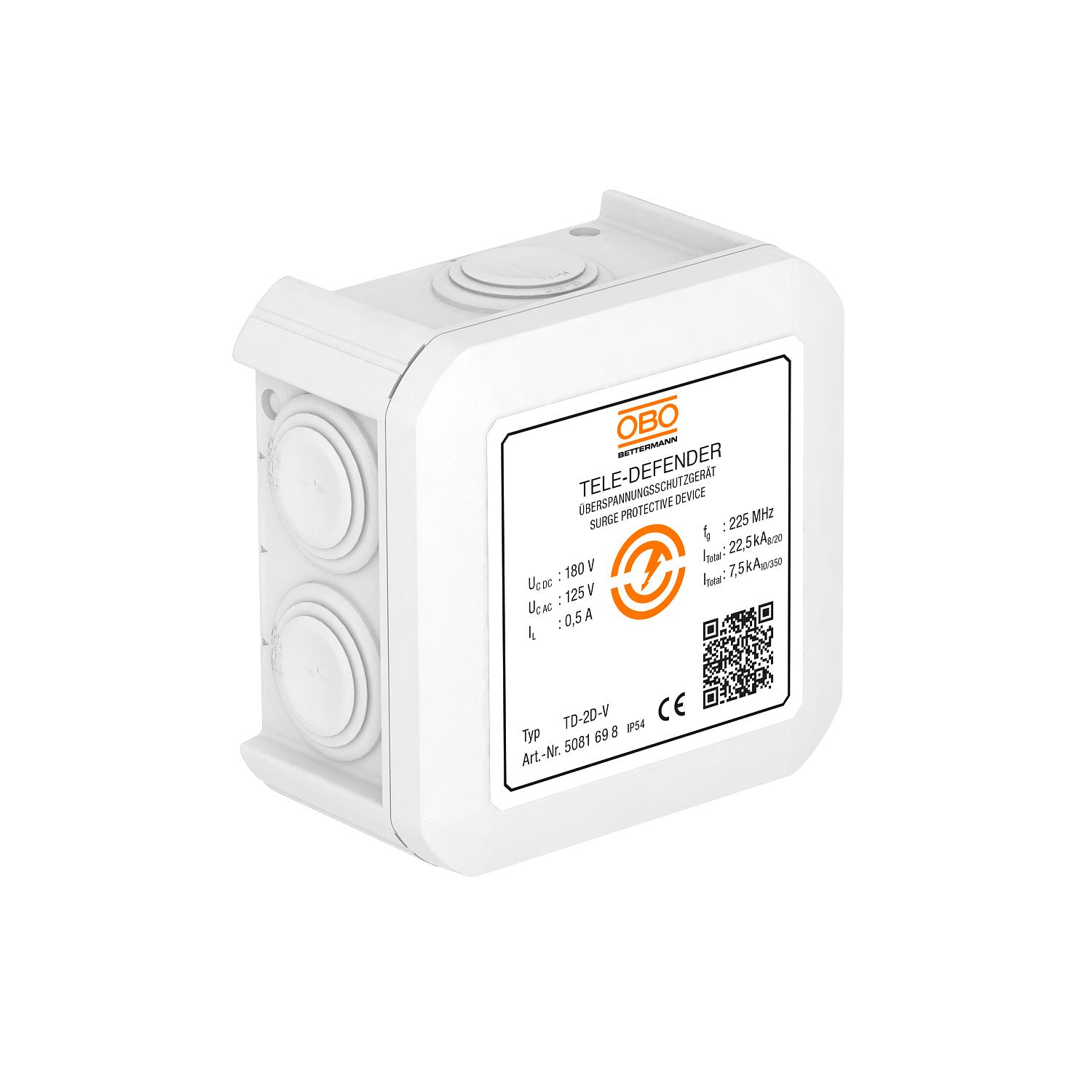

Combination protection device TD-2D-V for VDSL systems
Item no. 5081698 | EAN 4012196427444
- Product description
-
Product descriptionData cable protection device for telecommunications equipment
• Low protection level at a high current load
• "Push-in" clamps for quick installation
• Bandwidth-optimised for secure transmission up to 225 MHz
• Surface mounting
Application: Ideal for all DSL systems, IP connections, ISDN or analogue telecommunications
-

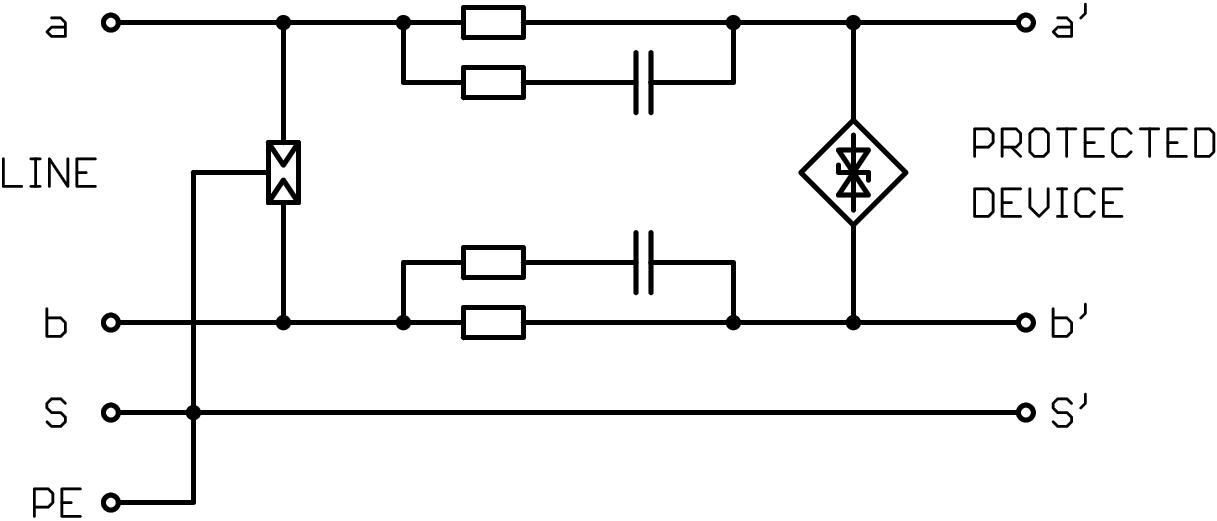

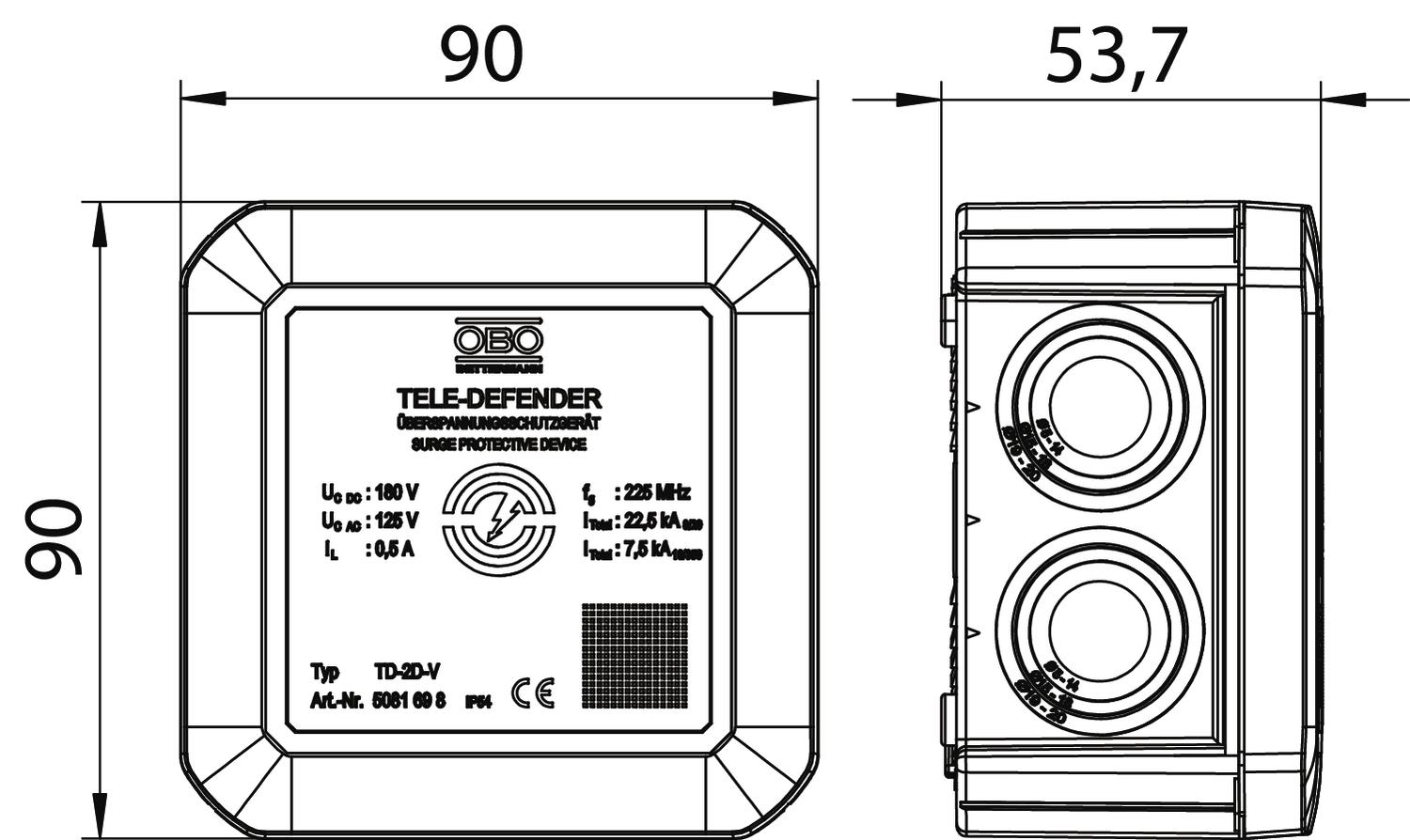

- Technical data
-
Technical data
Arrestor monitoring no Cable type for surge protection devices Telecommunications line Capacity (wire-earth) <20 pF Capacity (wire-wire) <10 pF Colour White Connection cross-section, flexible, max. 1 mm² Connection cross-section, flexible, min. 0,14 mm² Connection cross-section, multi-wire, max. 1 mm² Connection cross-section, multi-wire, min. 0,14 mm² Connection cross-section, rigid, max. 1,5 mm² Connection cross-section, rigid, min. 0,08 mm² Cut-off frequency 225 MHz Dimension 180V Explosion-tested version no Impulse durability wire-earth C2: 15 kV / 7,5 kA (8/20µs) Impulse durability wire-wire C2: 15 kV / 7,5 kA (8/20µs) Insertion loss ≤3 dB Insulation resistance >10 MΩ Kategorie Type 1+2+3 / D1+C2+C1 Lightning impulse current 2,5 kA Lightning protection zone LPZ 0→3 Material Plastic Maximum continuous voltage AC 125 V Maximum continuous voltage DC 180 V Nominal load current AC 0,35 A Nominal load current DC 0,5 A Number of poles 2 Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Plug-in system Terminal Protection level wire-earth <600 V Protection level wire-wire <350 V Protection rating IP54 Screening Direct Series resistance per wire 2,2 Ω ± 5 % Shielding connection available yes Signalling on device Without SPD to IEC 61643-21 Class I+II+III / D1+C2+C1 Telecommunications contact no Testing standard IEC 61643-21 Total discharge current (10/350) D1: 7,5 kA Total discharge current (8/20) 22,5 kA - All types
