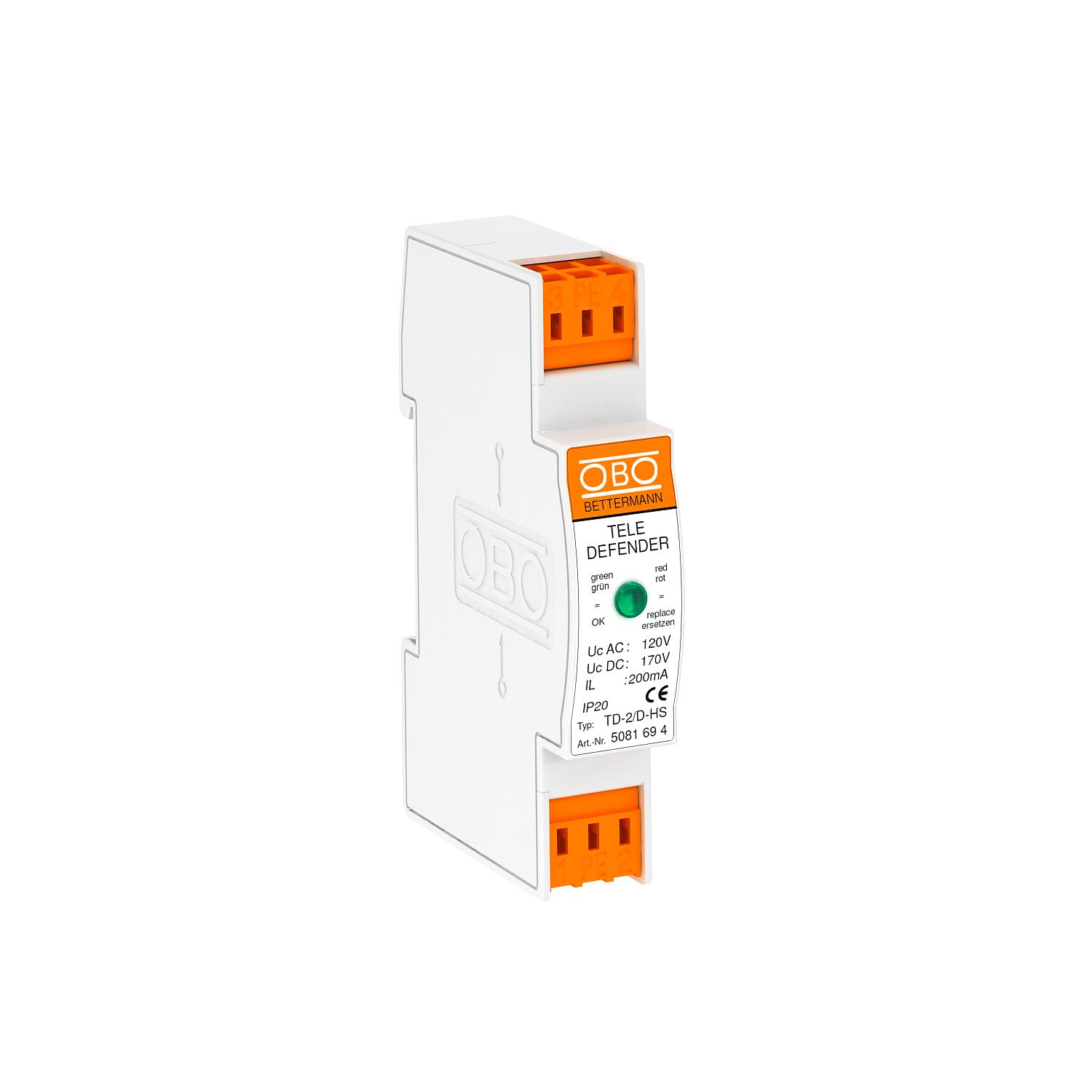

Combination protection device for ISDN and DSL systems

Item no. 5081694 | EAN 4012196087723

5081694 / TD-2/D-HS
2
120
170
Terminal

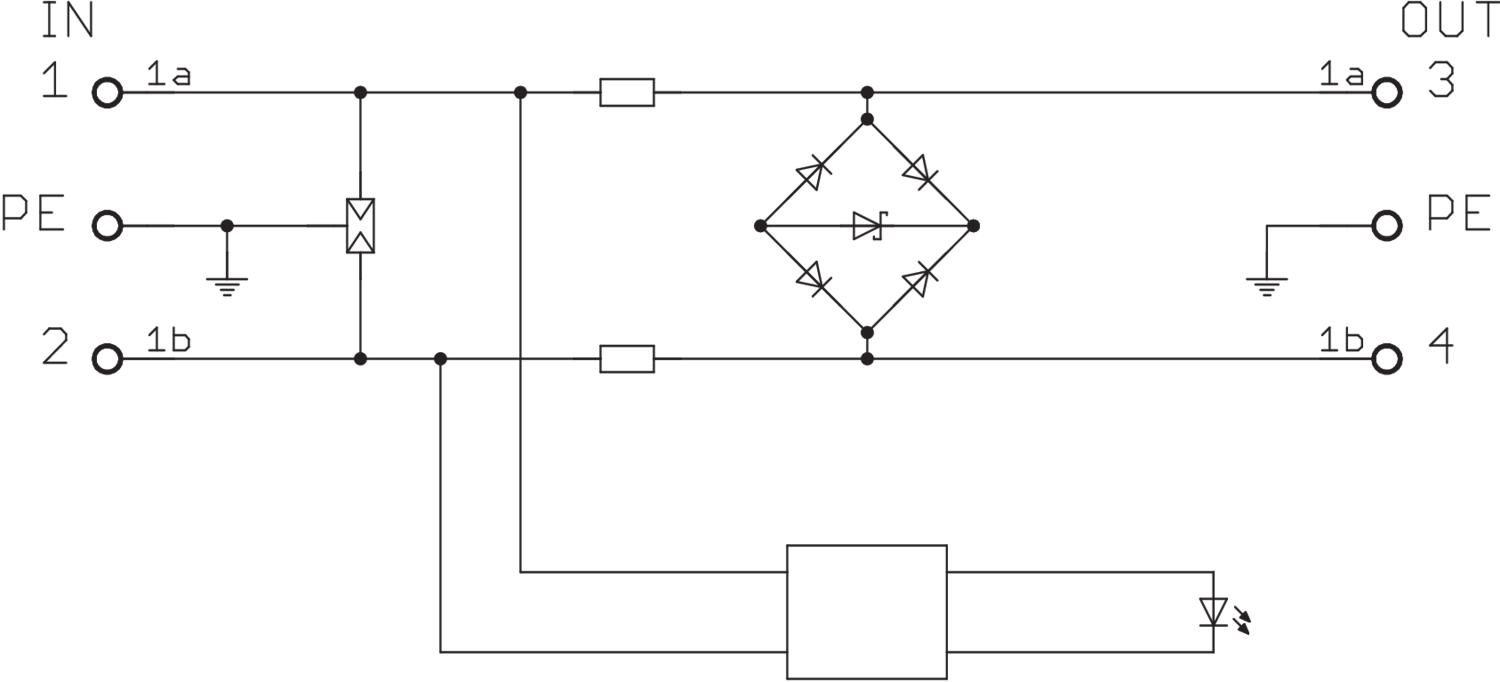

Product description

Product description

Data cable protection devices for telecommunication systems


• Low protection level at high current load

• Screwless terminals or connectable

• Bandwidth-optimised for secure transmission

• Quick mounting onto DIN rail for a telephone line

• Visual function display


Application: DSL systems, ISDN or analogue telecommunication
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 20
  • Transition from LPZ 0 to LPZ 2
  • Integrated Service Digital Network, ISDN applications
  • Digital Subscriber Line, DSL applications
  • Analogue telecommunication
  • Installation electrotechnical expertise

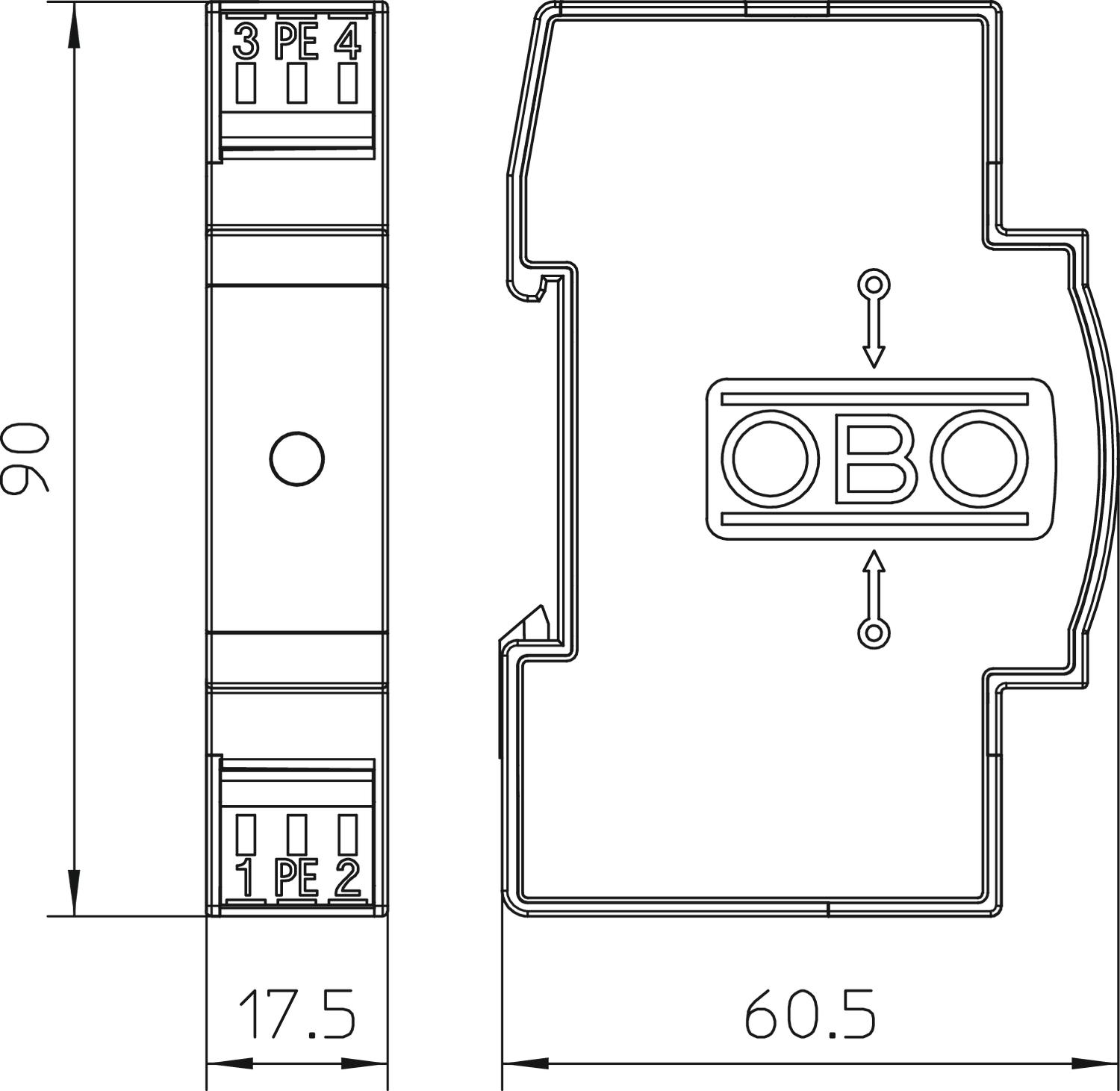

Technical data

Technical data

Arrestor monitoring no
Cable type for surge protection devices Telecommunications line
Capacity (wire-earth) <50 pF
Capacity (wire-wire) <50 pF
Colour White
Connection cross-section, flexible, max. 2,5 mm²
Connection cross-section, flexible, min. 0,14 mm²
Connection cross-section, multi-wire, max. 2,5 mm²
Connection cross-section, multi-wire, min. 0,14 mm²
Connection cross-section, rigid, max. 2,5 mm²
Connection cross-section, rigid, min. 0,14 mm²
Cut-off frequency 75 MHz
Dimension 170V
Division unit TE (17.5 mm) 1
Earthing via: Connection cable
Explosion-tested version no
Impulse durability wire-earth C2: 18 kV / 9 kA (8/20µs)
Impulse durability wire-wire C2: 18 kV / 9 kA (8/20µs)
Insertion loss ≤3 dB
Insulation resistance >1 MΩ
Kategorie Type 1+2+3 / D1+C2+C1
Lightning impulse current 2,5 kA
Lightning protection zone LPZ 0→3
Material Plastic
Maximum continuous voltage AC 120
Maximum continuous voltage DC 170
Nominal load current AC 0,14
Nominal load current DC 0,2 A
Number of poles 2
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -40 °C
Plug-in system Terminal
Protection level wire-earth <650 V
Protection level wire-wire <300 V
Protection rating IP20
Screening Direct
Series resistance per wire 9 Ω ± 10 %
Shielding connection available no
Signalling on device Visual
SPD to IEC 61643-21 Class I+II+III / D1+C2+C1
Telecommunications contact no
Testing standard IEC 61643-21
Total discharge current (10/350) D1: 5
Total discharge current (8/20) 10 kA
All types

All types

Types Number of poles Maximum continuous voltage AC Maximum continuous voltage DC Plug-in system Item no. Quantity SSU
TD-2/D-HS 2 120 170 Terminal 5081694
1 piece
